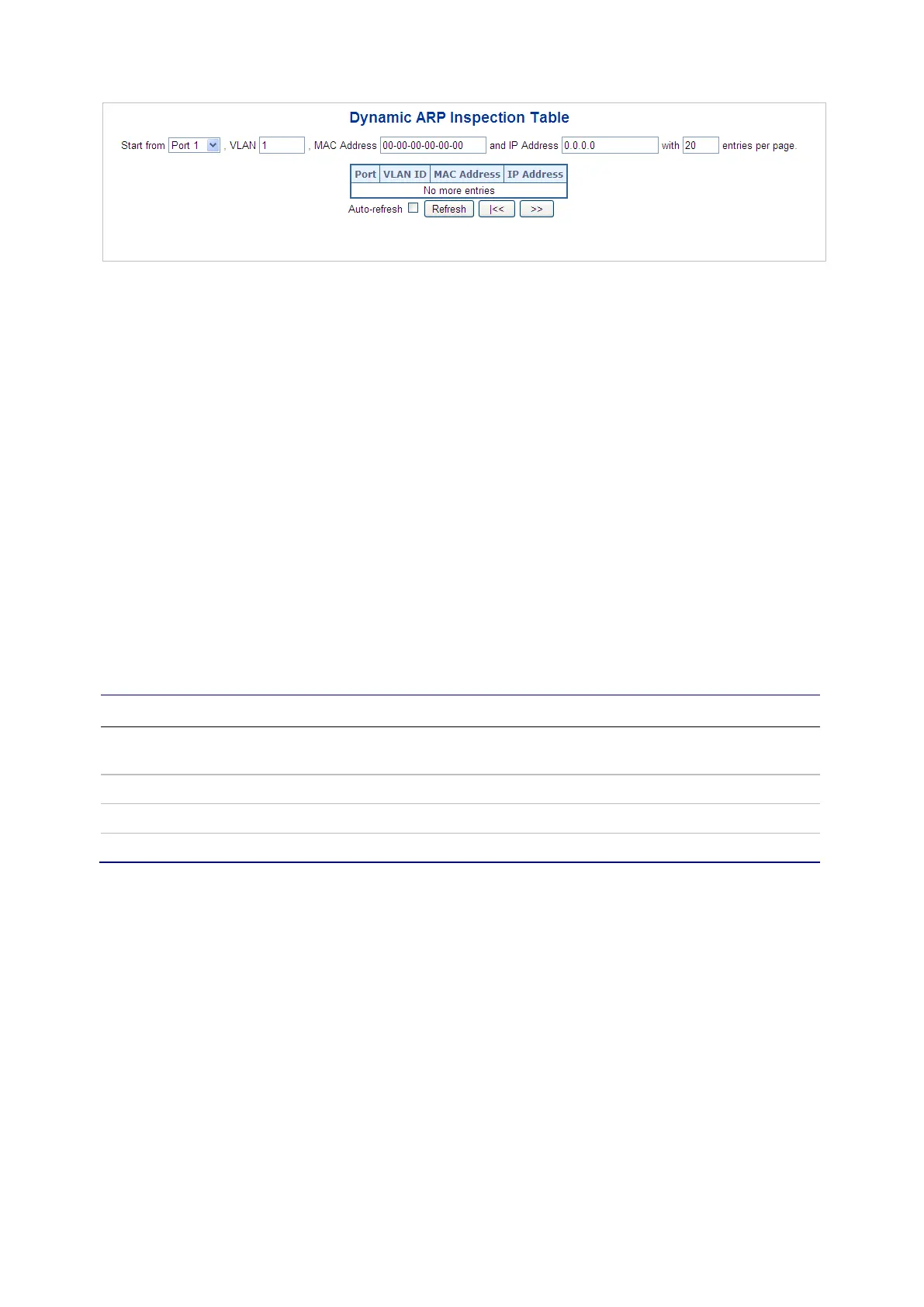

Navigating the ARP inspection table
Each page shows up to 99 entries from the Dynamic ARP inspection table, selected
through the "entries per page" input field (default is 20). When first visited, the web
page will show the first 20 entries from the beginning of the Dynamic ARP inspection
table. The first entry displayed will be the one with the lowest VLAN ID and the lowest
MAC address found in the table.
The Start from port address, MAC Address, IP Address and VLAN input fields allow
the user to select the starting point in the table. Clicking the Refresh button updates the
displayed table starting from that or the closest next Dynamic ARP inspection match.
In addition, the two input fields will, after clicking the Refresh button, assume the value
of the first displayed entry, allowing for continuous refresh with the same start address.
The >> will use the last entry of the currently displayed VLAN/MAC address pairs as a
basis for the next lookup. When the end is reached the text "no more entries" is shown
in the displayed table. Use the I<< button to start over.
The page includes the following fields:
Object Description
Port The port number for which the status applies. Click the port number to see
the status for this particular port.
VLAN ID The VLAN ID of the entry.
MAC Address The MAC address of the entry.
IP Address The IP address of the entry.
Buttons
• Click Auto-refresh to refresh the page automatically. Automatic refresh occurs
every three seconds.
• Click Refresh to refresh the displayed table starting from the MAC address and
VLAN input fields.
• Click I<< to update the table starting from the first entry in the MAC table (i.e., the
entry with the lowest VLAN ID and MAC address).
• Click >> to update the table, starting with the entry after the last entry currently
displayed.
