Interlogix Simon XT Installation Manual

Simon XT Installation Manual 23

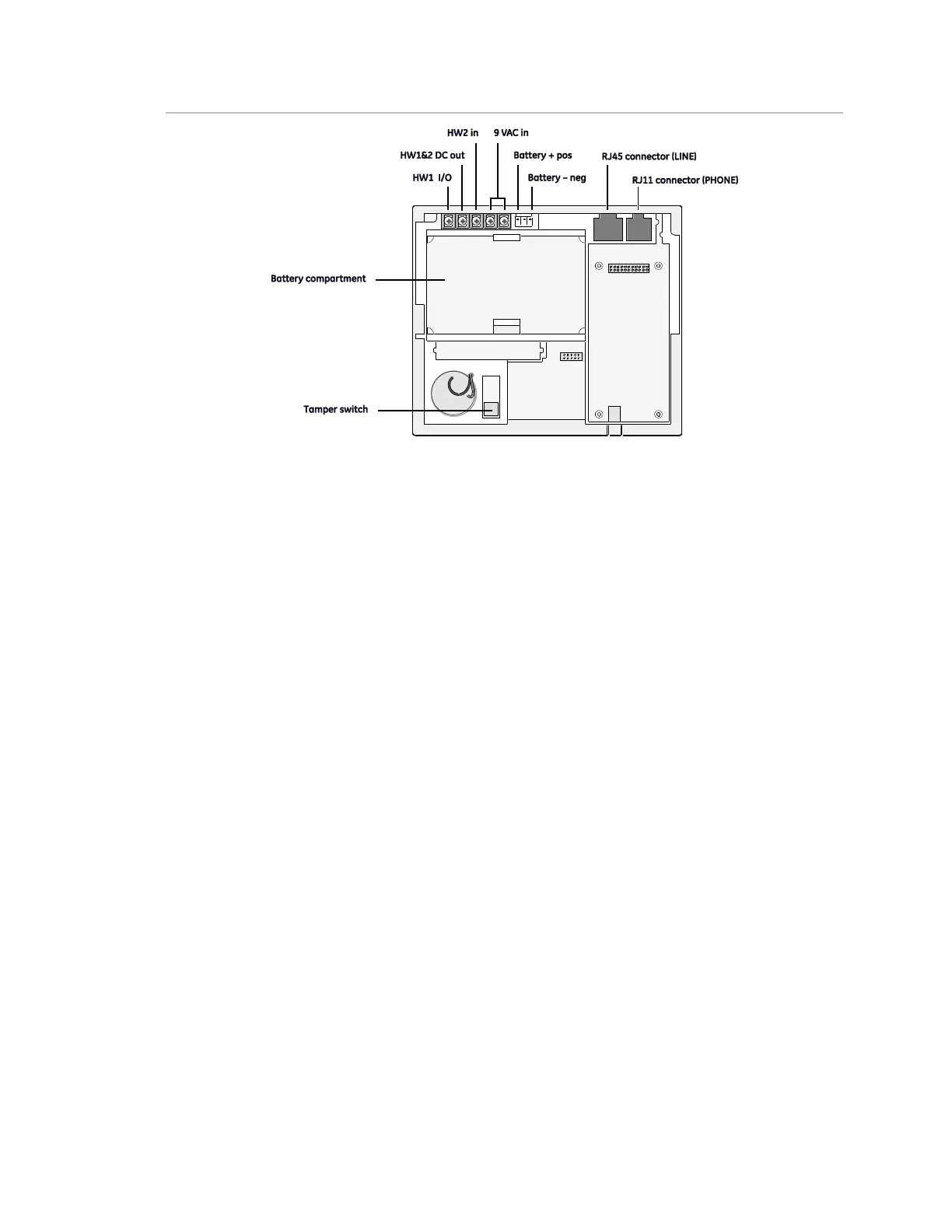

Figure 5: Simon XT terminal connections
HW1 I/O, HW2 in, and HW1&2 DC out terminals
The HW1 I/O terminal is dual purpose and can be used for either siren or
hardwired contact connections. The HW2 in terminal is an input only.
Interior sirens
From the factory, the HW1 I/O input is set up for interior siren operation (status
and alarm sounds). HW1&2 DC out provides the positive (+) voltage.
Note: The total current available from the HW1&2 DC out terminal is 250 mA at
up to 120°F (49°C). A 24-hour battery standby for UL Requirements will be met
with a maximum load of 250 mA.
With Hardwired Siren Supervision turned on, sirens connected to HW1 I/O are
supervised and require a 4.7 kohm resistor in the circuit. If this terminal is not
used, turn Hardwired Siren Supervision off.
LD105 hardwired interior siren
Interior sirens must always be wired with a resistor in the circuit. For circuit
supervision which allows the panel to detect if the siren wire is cut (open),
Hardwired Siren Supervision must be turned on.
Note: Do not install the resistor at the panel terminals. This does not provide
supervision of the wire.
Connect the LD105 hardwired interior siren (13-374) to the panel using a 4.7
kohm resistor (included with the siren) as shown in Figure 6 on page 24 The
resistor must be connected across the siren wires as close to the siren as
possible.

Interlogix Simon XT Specifications

Power

power requirements	6V nominal
standby current	30mA (10mA in PowerSave Mode)
peak current	1.7 A

Operating Environment

operating temperature	32 to 120°F (0 to 49°C)
storage temperature	-30 to 140°F (-34 to 60°C)
max. relative humidity	90% non-condensing

Dimensions

height	4 1/16 in.
width	1 7/8 in.
