Interlogix TruVision 6 Series User Manual

32 Installation Guide

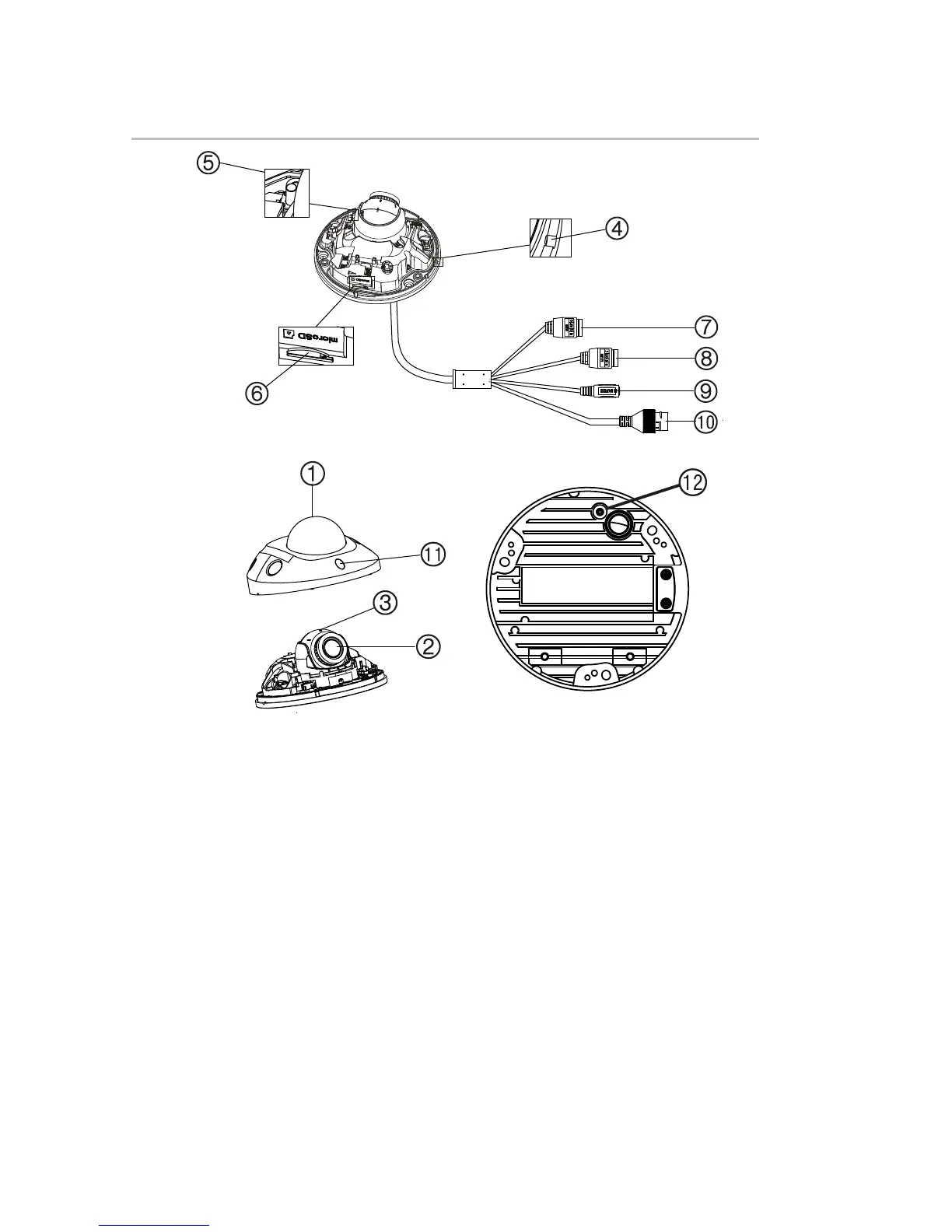

Figure 7: IP fixed lens wedge camera
1. Housing cover
2. Lens assembly
3. Camera assembly
4. MIC (microphone)
5. Reset button
6. Micro SD card slot
7. Audio 2 inputs. Line in or
MIC (built-in microphone) /
1 output
8. Alarm 1 input/1
output
9. 12 VDC power
10. Ethernet RJ45 PoE
port
11. IR illuminators
12. Ground

Interlogix TruVision 6 Series Specifications

General

Brand	Interlogix
Model	TruVision 6 Series
Category	IP Camera
Language	English
