Interlogix TruVision 6 Series User Manual

46 Installation Guide

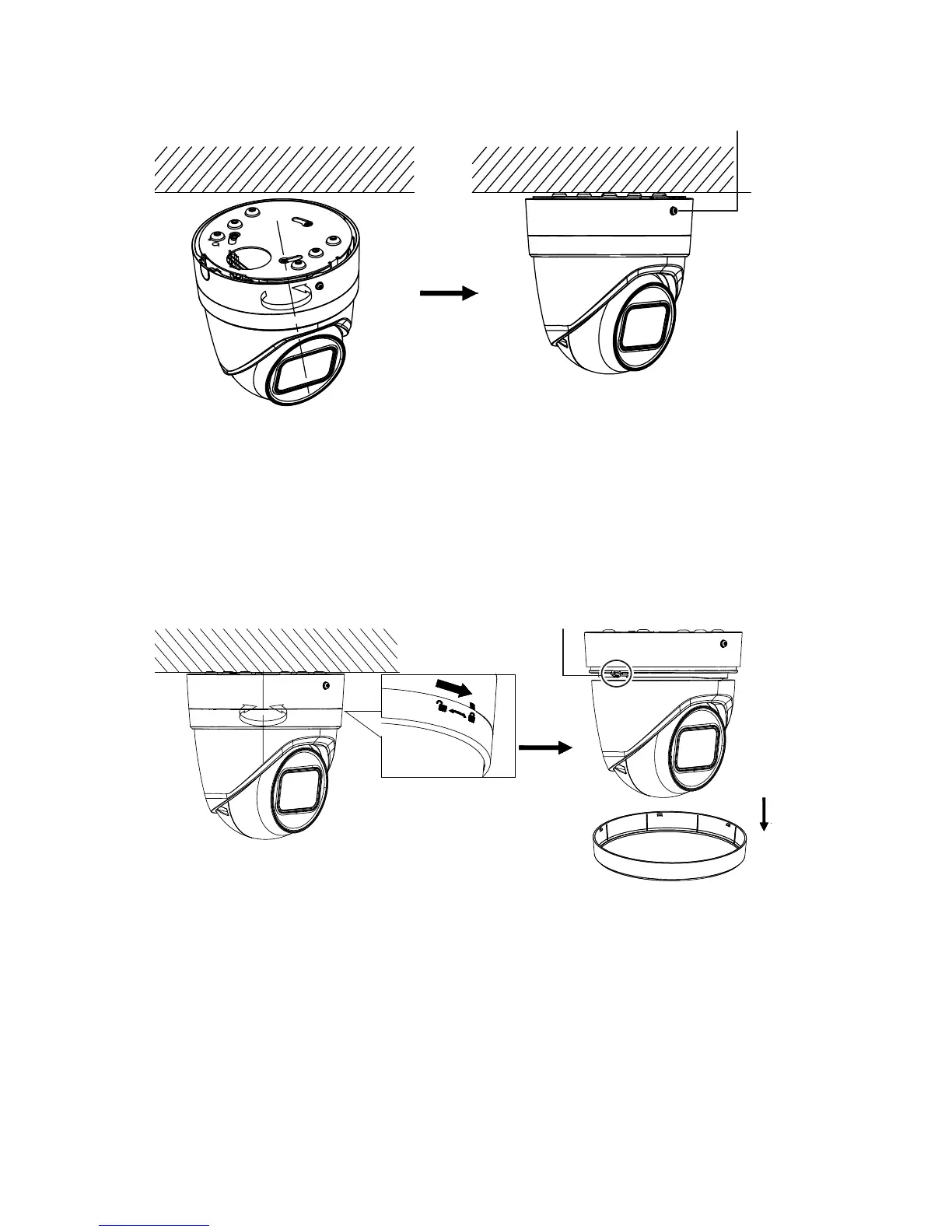

Locking Torx screw
6. Adjust the lens position.
a) To adjust the lens position, remove the decorative
trim ring by rotating the ring towards the unlocked
position (see reference on the trim ring). Loosen the
lens adjustment Torx screw that is now visible.
Lens adjustment Torx screw
b) Rotate the lens assembly to adjust the pan tilt angle.
c) Tighten the lens adjustment screw to secure the lens
at the desired surveillance angle.
