116 xGenConnect Installation and Programming Guide

Instructions

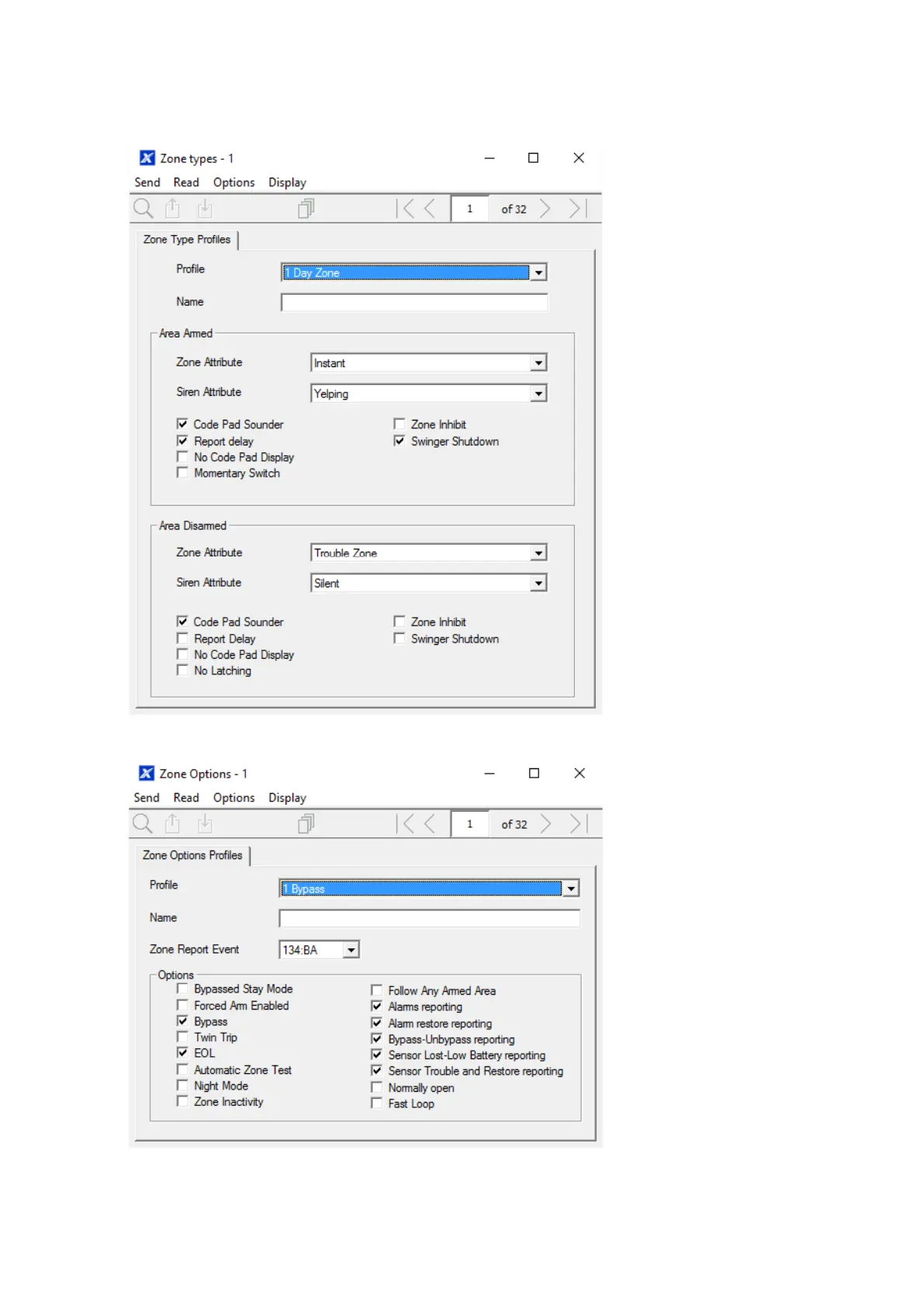

1. Go to Zone Type.

2. Go to Zone Options.

3. Select the options you want, the SIA/CID event code can be customized. See

xGen Reference Guide for a table of codes.
