Instructions

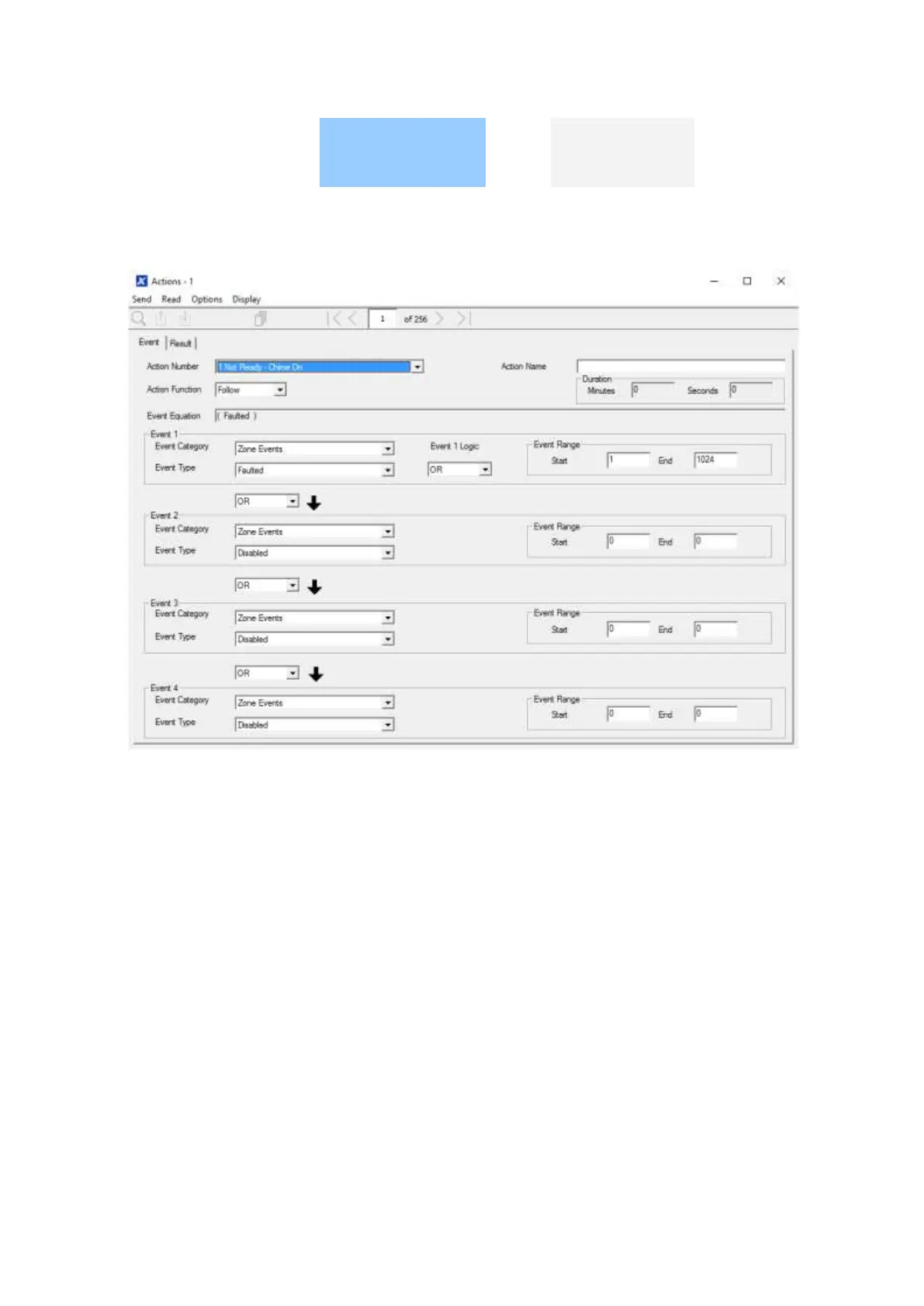

1. Open Actions.
2. Select the Action Number you want to create.
3. Enter a descriptive name for this action.
4. Select the Action Function and the duration (optional) for the Action State.
For example, Timed 5 seconds would cause the Action State to activate for
5 seconds when all the conditions in the Event Equation are satisfied.
5. Select the Event 1 logic, this will be applied before Event 1.
For example, “Inverted OR” results in “NOT Event 1”.
6. Program the first event by using the Category and Type menus.
7. Enter the Event Range for the selected Category.
For example, if you want to select Areas 1-4 then set the Event range
Start=1 and End=4.
8. Select Event 2 logic and repeat for the remaining events.
