xGenConnect Installation and Programming Guide 27

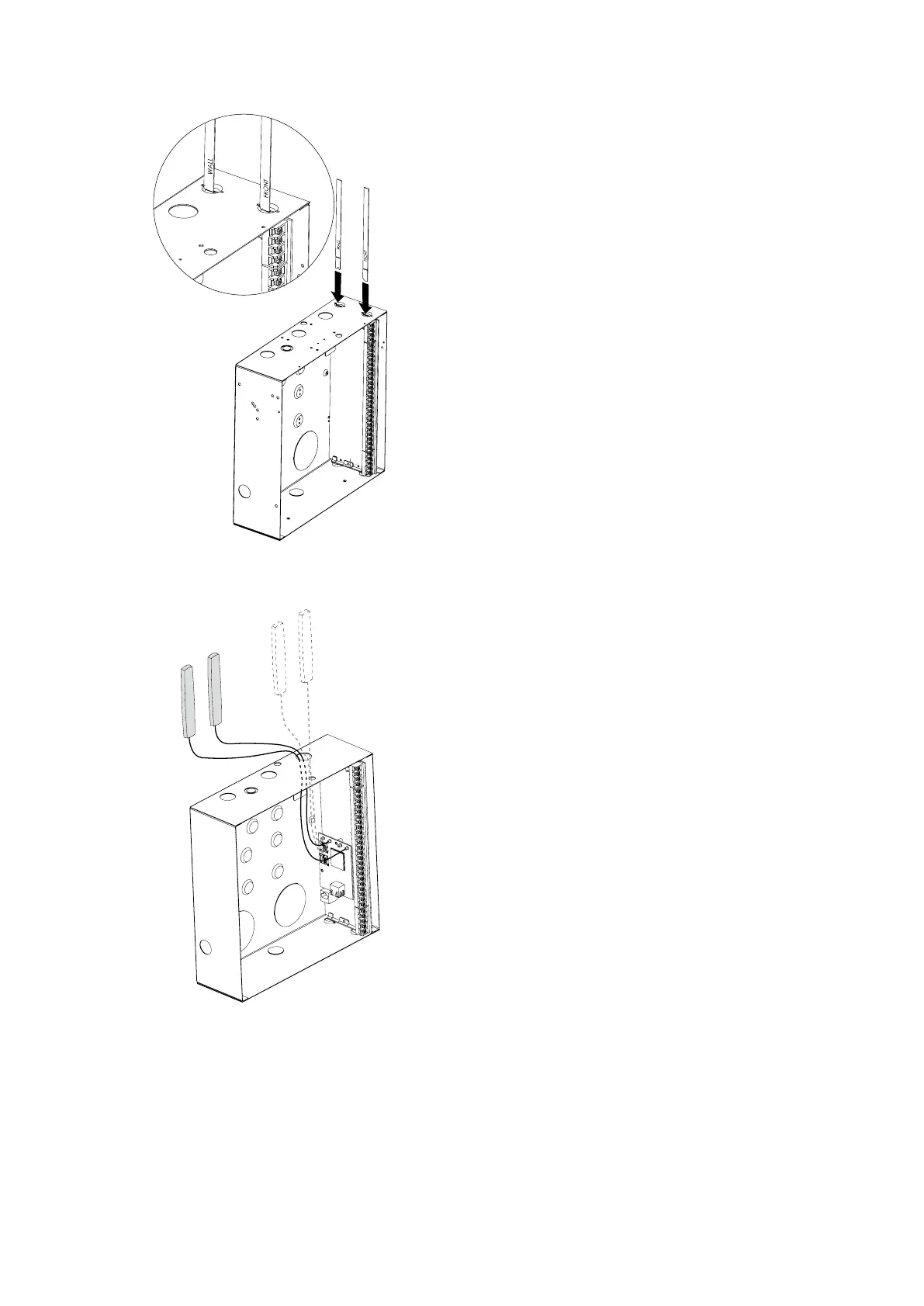

Wireless Sensor (NXG-4 only) and Z-Wave Antennas
If two black antennas have been provided:
1. Install panel into metal enclosure first.
2. Antenna must be installed vertically for best
performance.
3. Each antenna is keyed (shaped differently)
and labelled. Antennas are reasonably
flexible, do not apply excessive force. Match
the antenna to the shape molded on the
plastic bracket and push to insert.
4. The line printed on each antenna will
disappear when fully inserted.
5. Remove antennas before attempting to
remove panel.
4G Cellular and Wi-Fi Router Module Antennas
If the optional 4G Cellular and Wi-Fi Router has
been installed, a single set of antennas should be
connected to “MAIN” on the module. The
antennas should be installed vertically, and as
high up as possible.
The module includes MIMO wireless technology
to improve reception of 4G and Wi-Fi wireless
signals. This requires the installation of a second
set of antennas to “DIV” on the 4G/Wi-Fi Router
Module. The second set of antennas will perform
best when separated from the MAIN antennas by
at least 20 cm.
