Intermatic Grasslin talento smart B15 User Manual

69
EN
Connecting the electricity
2. Strip the insulation from the wires.
• Stripping length: 8mm
Tightening torques
To avoid damage and faulty contacts, tighten the terminals using a torque of 1.2 – 1.4Nm.
NOTE!

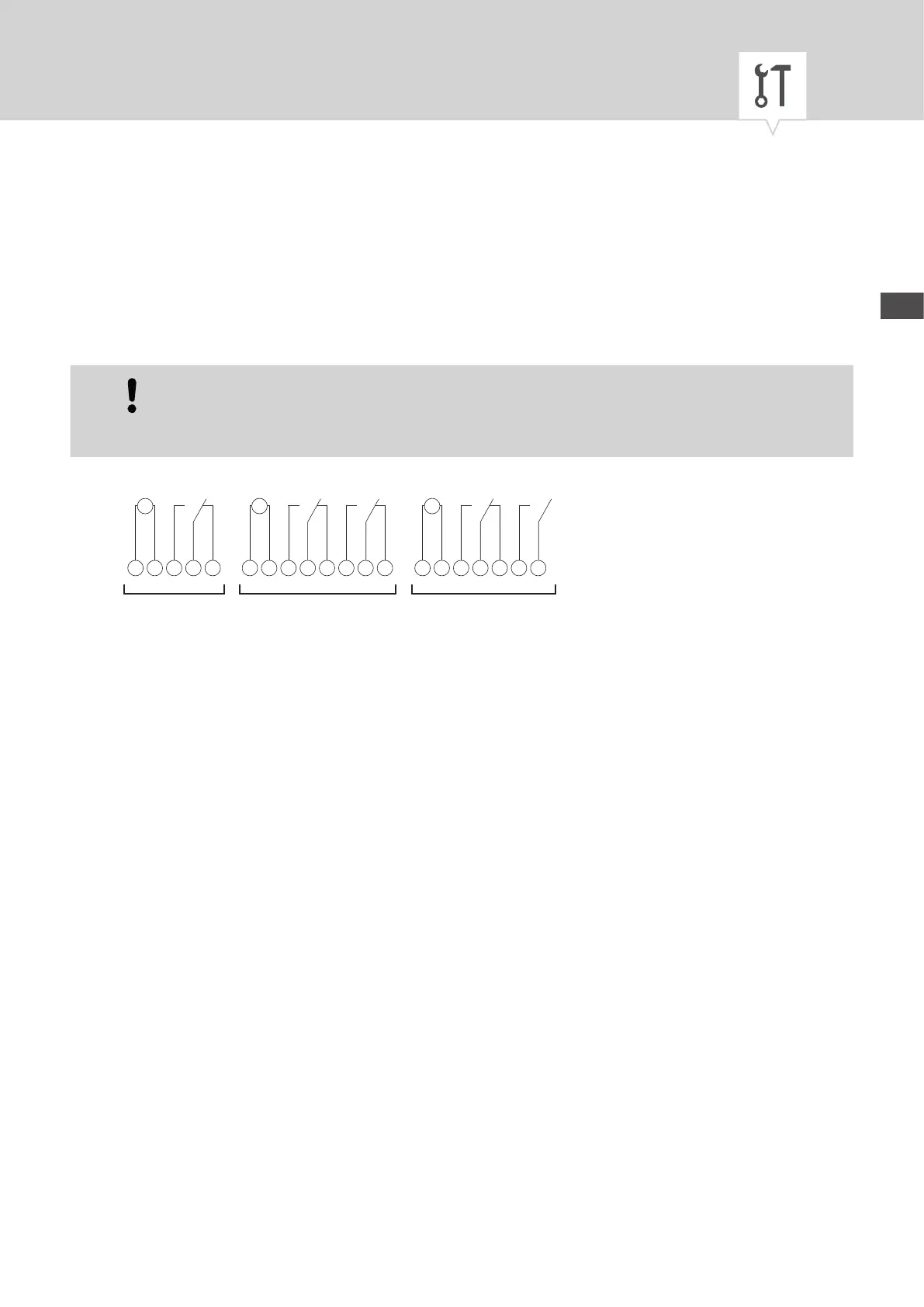

Fig. 5: Circuit diagram
A 110 – 230V 1-channel DIN-rail timer
B 110 – 230V 2-channel DIN-rail timer
C 12/24V DIN-rail timer
3. Connect the DIN-rail timer in accordance with the circuit diagram (Fig.5/A), (Fig.5/B) or (Fig.5/C).
L N
M
~
CH1
1 2 3
M
~
CH1
1 2 3 5 6
CH2
~+
~-
L N
M
~
CH1
1 2 3 5 6
7
CH2
A B C
