Installation
Connecting the electricity
Risk of fatal electric shock!
Improper assembly and installation of the device can lead to life-threatening electrical
voltages.
− Only allow a qualied electrician to install and connect the device.
WARNING!
Personnel:
• Qualied electrician
Material:
• DIN rail (15mm x 7.5mm)
• DIN rail (15mm x 12.5mm)
Prerequisite:
• The terminals for the wires must have a cross-section between 1mm² and 2.5mm².

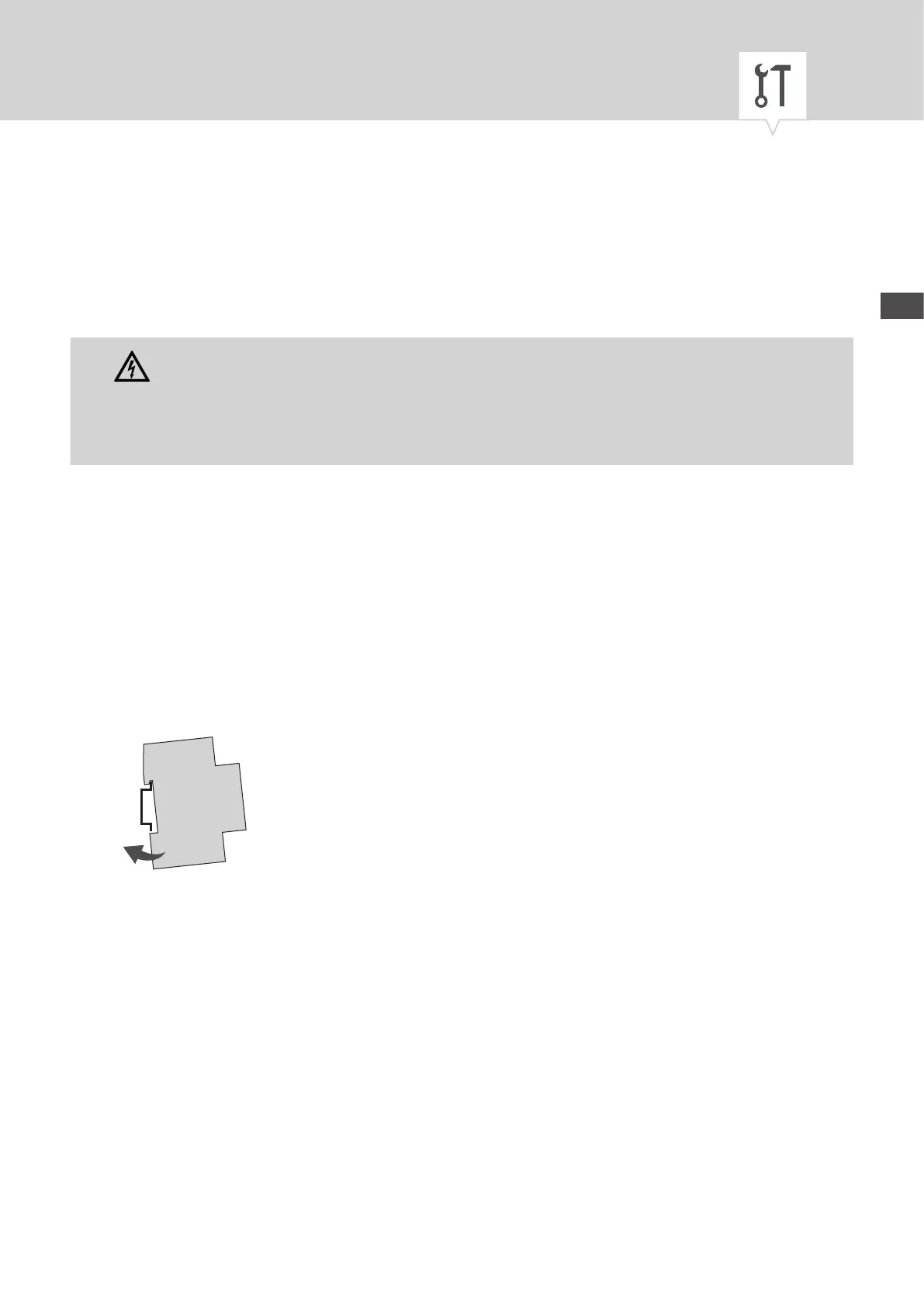

Fig. 4: Installation on a DIN rail
1. Place the DIN-rail timer on the DIN rail (Fig.4) from above and press it back until it locks into place.
