PROGRAMMING CYCLE SWITCHING
Cycle switching is only possible for certain variants.

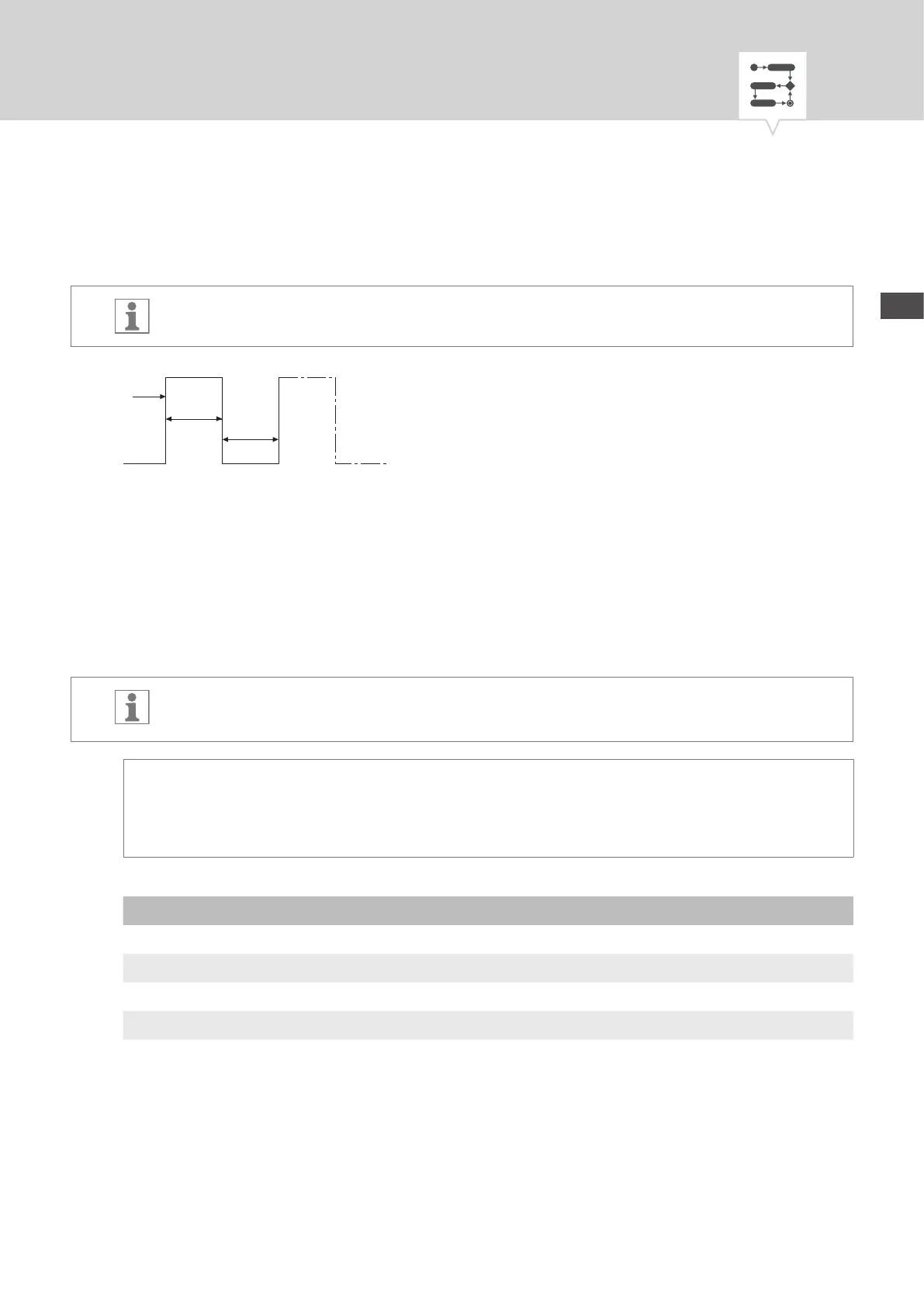

Fig. 33: Cycle switching
Components of a cycle switching command:
• (Fig.33/
1
) Start time
• (Fig.33/
2
) Period ON = switching ON
• (Fig.33/
3
) Period OFF = switching OFF
To end the cycle, an independent “OFF” command must be set. Nesting of cycle programmes
is not permitted.
Example
Channel 1 is switched on every 30minutes for 10minutes, Monday to Friday, from 9:00 a.m. to 7:00
p.m.
Switching Cycle
Start time 9:00a.m.
Period ON 10minutes
Period OFF 20minutes
Separate OFF command 7:00p.m.
19:00 h9:00 h



