Intermec CK71 Series - EA30 Scan Engine

TITLE
Model
DOCUMENT NO.
PAGE
CK71 Service Work Instructions
CK71A
SWICK71-000
Page 33 of 42

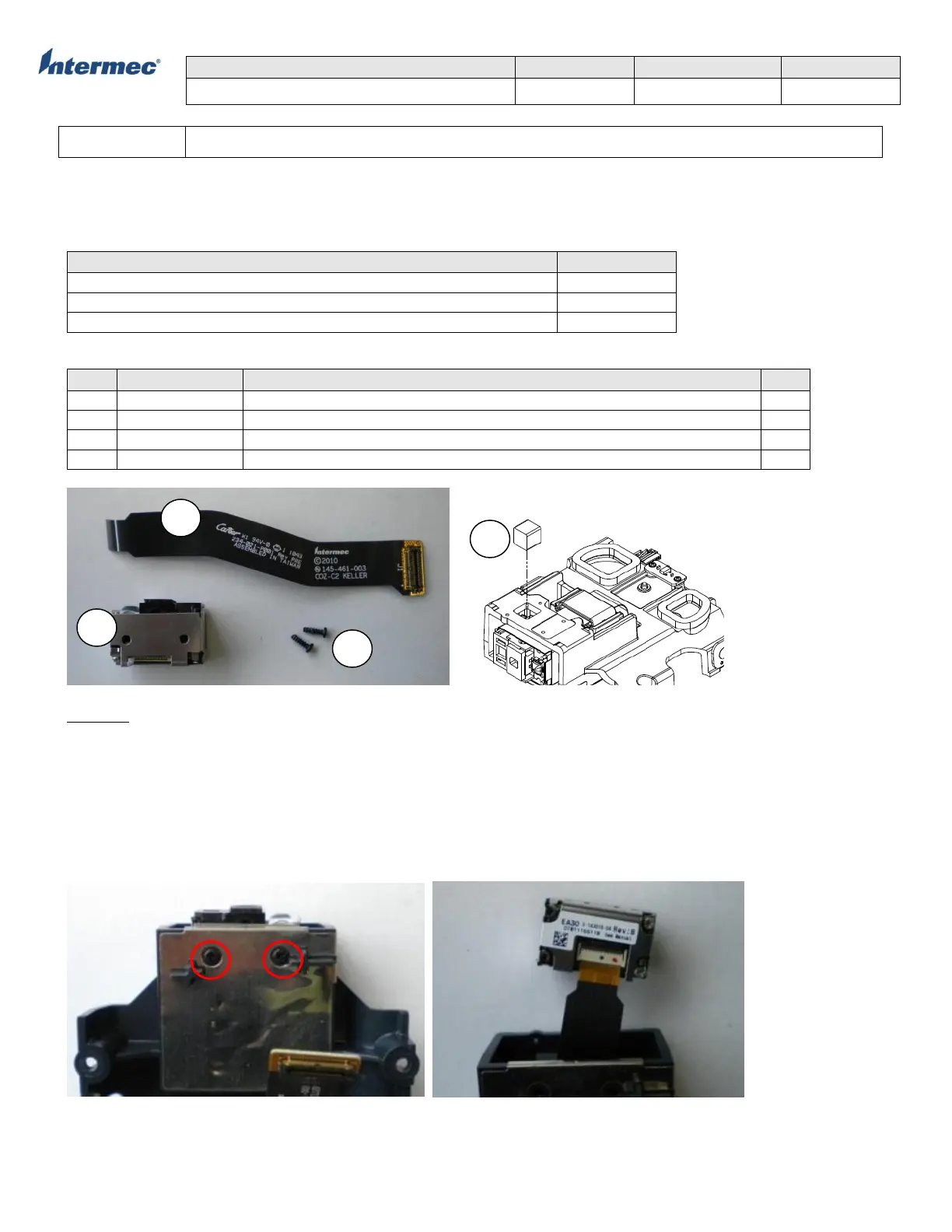

OPERATION:
EA30 Scan Engine
The EA30 scan engine is located on the scan bracket assembly. To service the scan engine you will need to remove
the scan bracket assembly.
Tools Required
Description
Part Number
T10 Torx driver
T7 Torx driver
Phillips screwdriver with #0 tip
Parts Required
Item
Part Number
Description
Qty
1
3-143010-06
EA30 Scan Engine
1
2
800-451-001
Thd Form Screw,M1.7 x 5mm Flat Hd RoHS
2
3
234-021-0300
FLEX ASSY, KELLER SCAN, COZ-C2
1
4
655-213-001
PAD, GROUND, EA30
1
Removal
1. Remove the bottom housing assembly (refer to Bottom Housing operation).
2. Remove the scan bracket assembly (refer to Scan Bracket Assembly operation).
3. On units equipped with a camera remove the camera and then remove the ground pad underneath it. This will be
required before the scan engine can be removed from the scan bracket. This ground pad will not be present on units
built without a camera.
4. Using a #0 Phillips screwdriver remove two screws that secure the scan engine to the scan bracket assembly.
5. Slide the scan engine out of the scan bracket and disconnect the flex cable from it.
Continued on next page…
3
1
2
4
