Intermec EasyCoder F2 – Installation & Operation Ed. 2 89
Appendix 2 Media Specifi cations

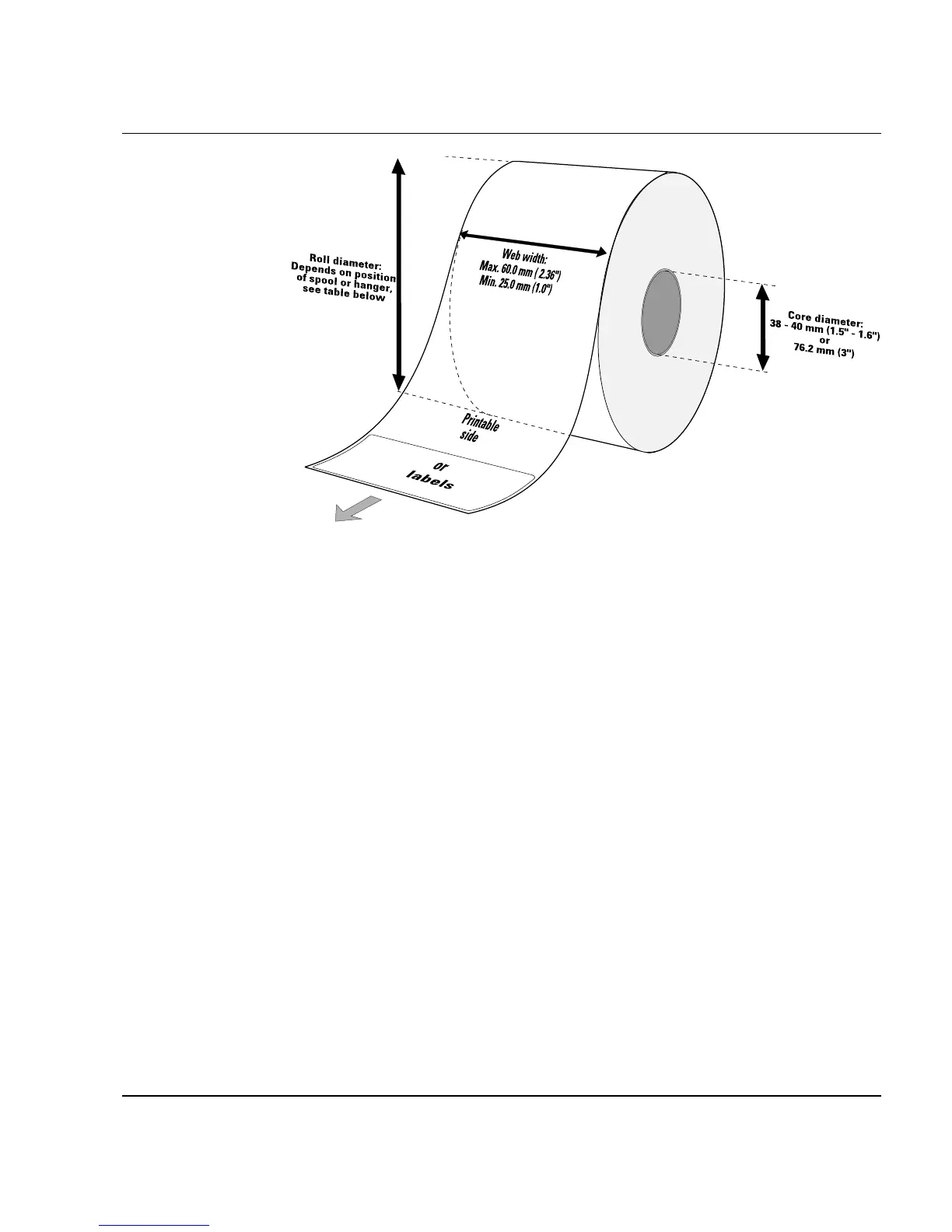

Paper Roll Size
Core
Diameters: 38 – 40 mm (1.5") or 76.2 mm (3")
Width: Must not protrude outside the web.
The web must be wound up on the core in such a way that the
printer can pull the end of the web free.
Roll
Max. diameter (internal supply only):
- Position 1 152 mm (6.00")
- Position 2 213 mm (8.38")
- Position 3 203 mm (8.00")
Max. width: 60 mm (2.36")
Min. width (standard): 25 mm (1.00")
Min. width (Quick-Load): 40 mm (1.57")
Max. web thickness: 175 µm (0.007")
The maximum recommended web thickness is 175µm. A thicker
web may be used, but print quality will be reduced. Web stiffness
is also important and must be balanced against web thickness to
maintain print quality.
Paper rolls fitted inside the printer should be wound with the
printable side facing outwards.
The paper supply must not be exposed to dust, sand, grit, etc. Any
hard particles, however small, can damage the printhead.
