Appendix A — Specifications
96 PD41 and PD42 Commercial Printer User’s Manual
USB Host Interface
The printer has a USB host interface for connecting USB devices such
as HID bar code scanners and keyboards, USB storage devices, and
USB hubs.

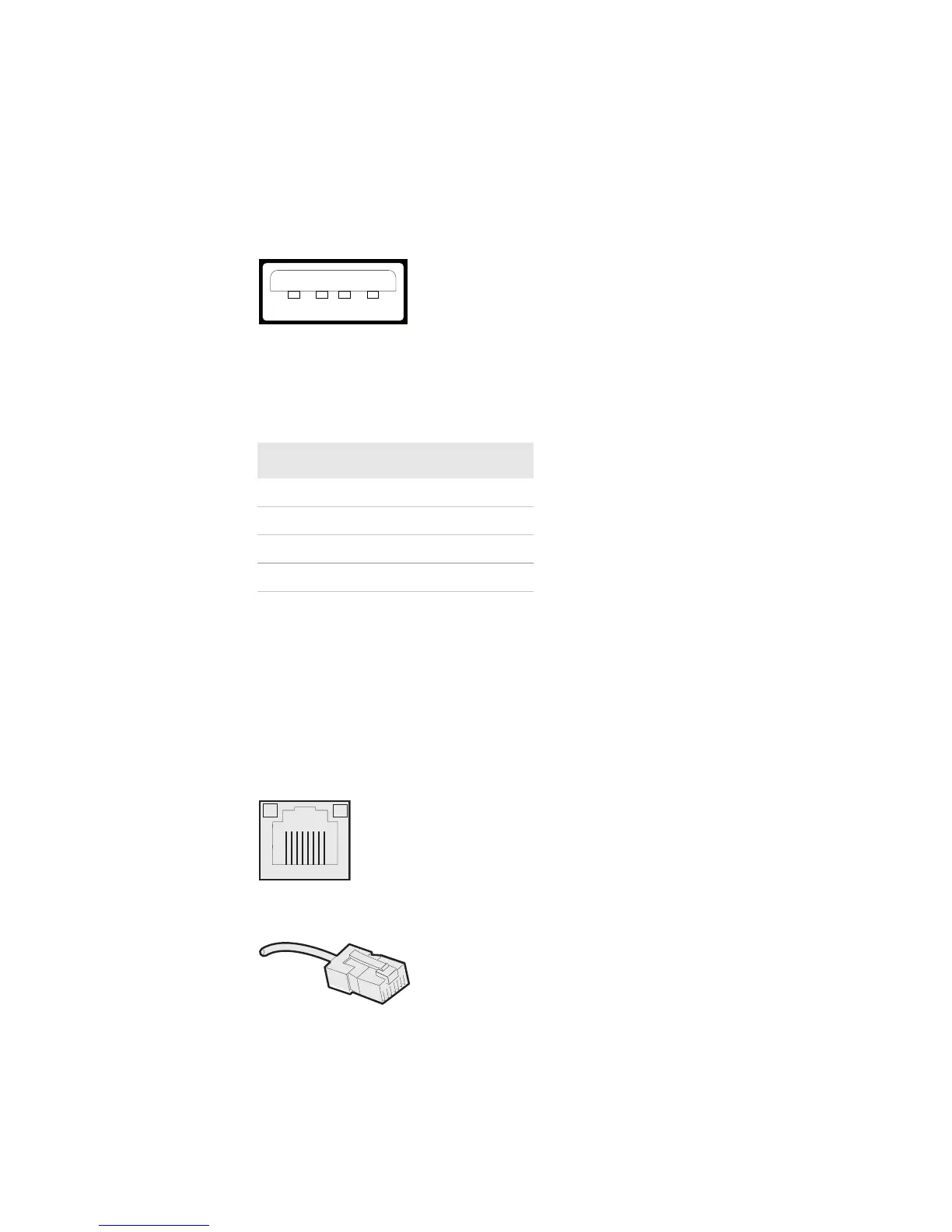

USB Host Interface
Ethernet Interface
The Ethernet interface has an RJ-45 socket for use with a standard RJ-
45 cable. The interface supports 10/100 Mbps Fast Ethernet (10BASE-
T, 100BASE-TX) and is fully compliant with the IEEE 802.3u
standard. The network card MAC address can be found on the label
below the socket.
Ethernet Socket
Ethernet Connector
USB Host Interface Pins and Descriptions
Pin Description
1 VBUS
2D-
3D+
4Gnd
1234
