9006 Hybrid Control for RollerDrive
Product information

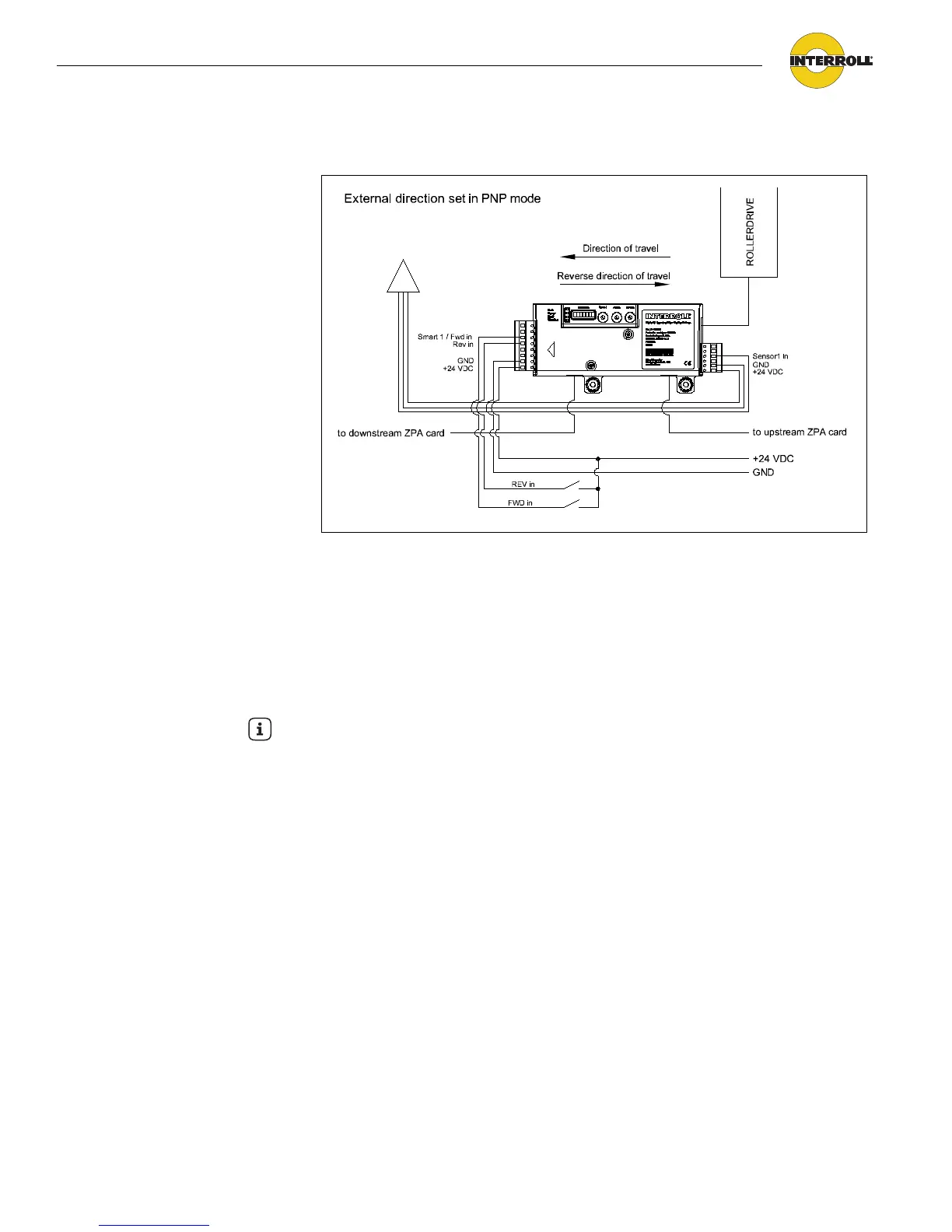

DIP switch settings:
• If SW5 is ON, direction setting is transferred downstream.
• If SW4 is ON, direction setting is transferred upstream.
• SW1: ON
Start options:
• FWD connected to 24 VDC at PNP mode causes ccw rotation.
• REV connected to 24 VDC at PNP mode causes cw rotation.
• FWD and REV connected to 24 VDC at PNP mode causes coast mode.
Hint
• FWD signal acts like a jog signal, disregarding ZPA functionality and photoeye
signals.
• REV signal reverses motor and logic direction; upstream becomes
downstream and C sensor becomes B sensor.
