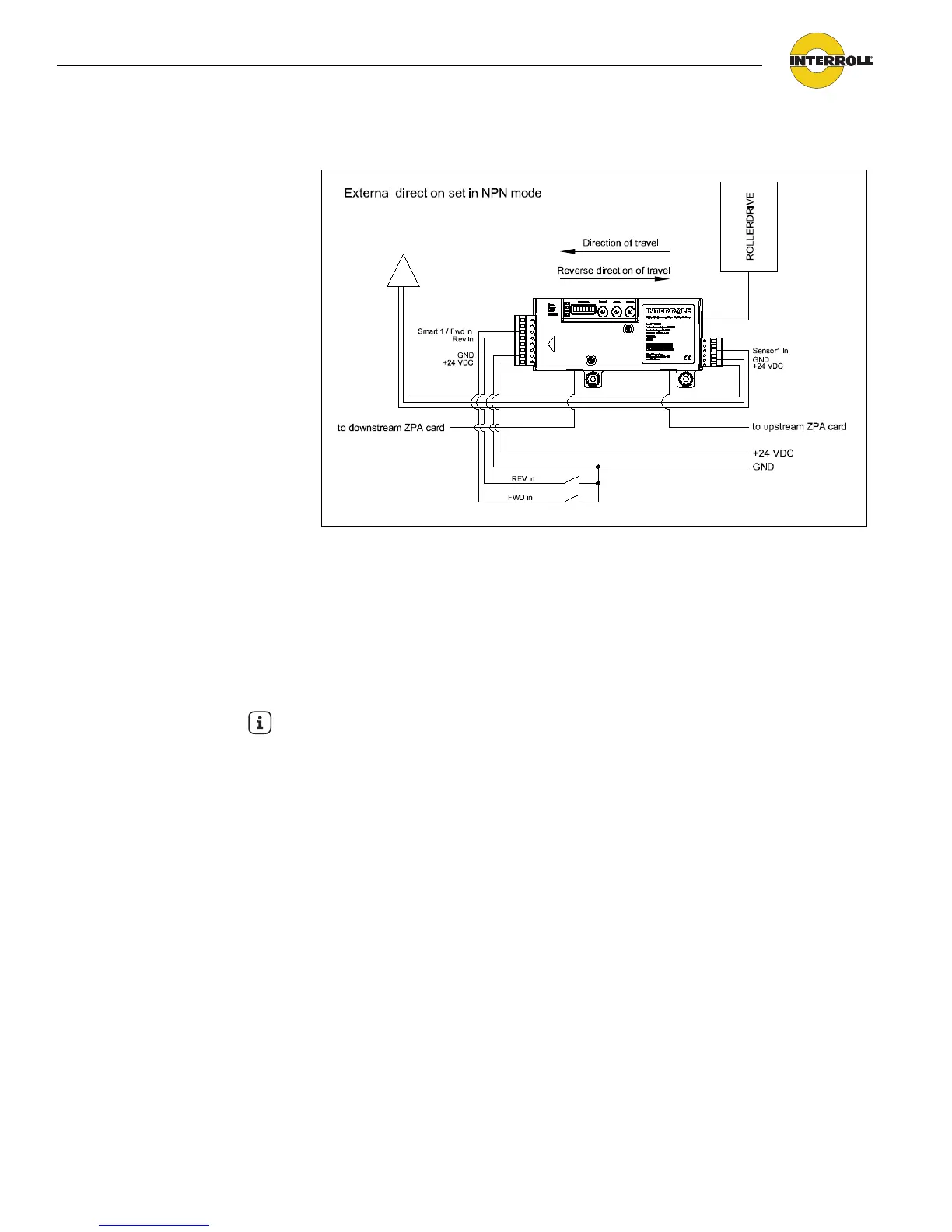

Interroll 9006 - External direction set in NPN mode

24
Version 1.1 (11/2011) en
Original language
Product information
9006 Hybrid Control for RollerDrive
DIP switch settings:
• If SW5 is ON, direction setting is transferred downstream.
• If SW4 is ON, direction setting is transferred upstream.
• SW1: OFF
Start options:
• FWD connected to GND at NPN mode causes ccw rotation.
• REV connected to GND at NPN mode causes cw rotation.
• FWD and REV connected to GND at NPN mode causes coast mode.
Hin
t
• FWD signal acts like a jog signal, disregarding ZPA functionality and photoeye
signals.
• REV signal reverses motor and logic direction; upstream becomes
downstream and C sensor becomes B sensor.
