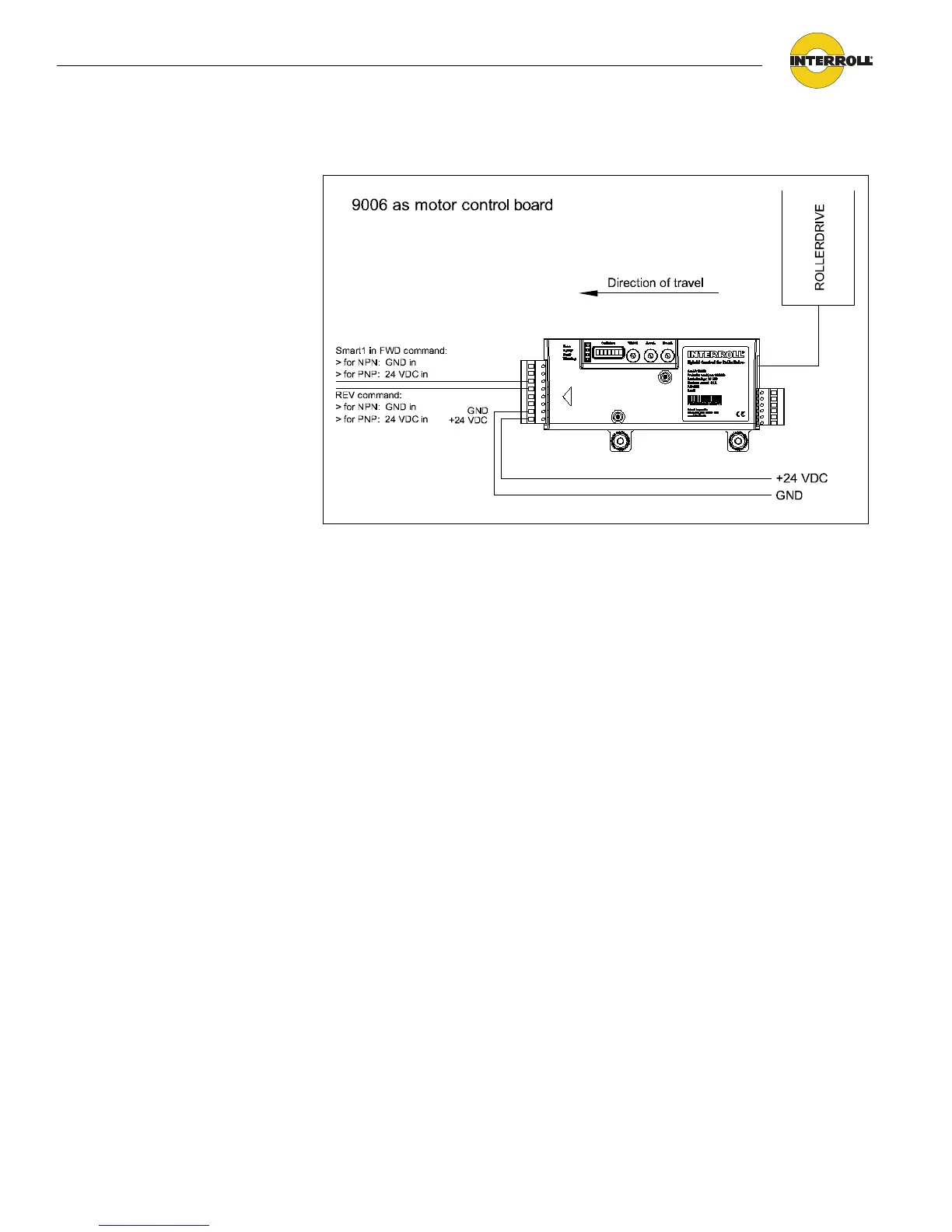

Interroll 9006 - 9006 as motor control board

27
Version 1.1 (11/2011) en
Original language
9006 Hybrid Control for RollerDrive
Product information
Start options:
• FWD connected to 24 VDC causes ccw rotation.
• REV connected to 24 VDC causes cw rotation.
• FWD and REV connected to 24 VDC causes coast mode.
