30
Version 1.1 (11/2011) en
Original language
Product information
9006 Hybrid Control for RollerDrive
Learn Mode Reset
At startup "Learn Mode" automatically sets the zone length, and saves it, simply
by running an object from the upstream sensor to the downstream sensor. If the
sensor positioning or zone length should change after startup, you must reset

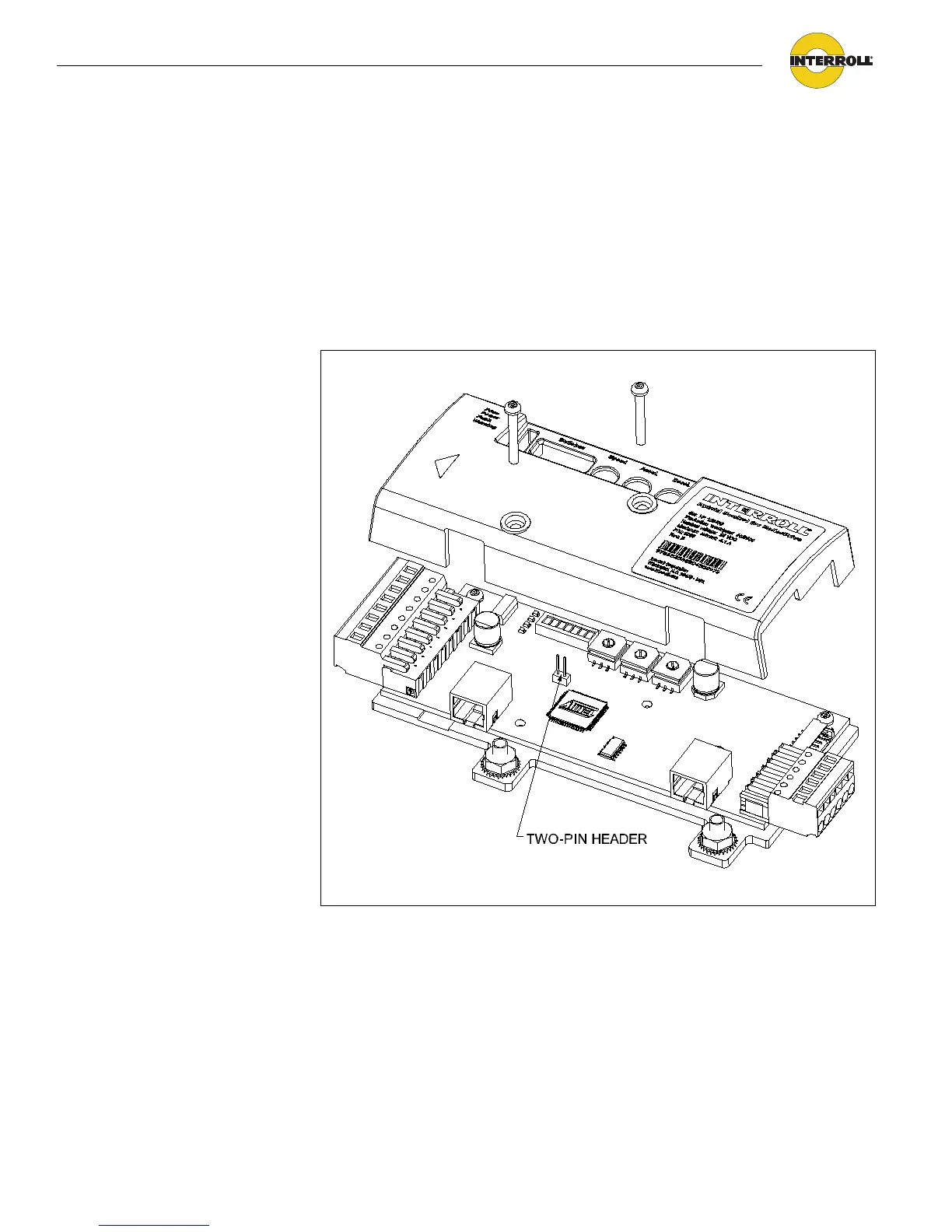

the learn mode. Simply remove the two screws from the cover to reveal the two
pin header shown below. Carefully short these two pins together until you see
the LED's flash. Immediately remove the short. You are now ready to run an
object from the upstream sensor to the downstream sensor to "re-learn" the
zone length.
