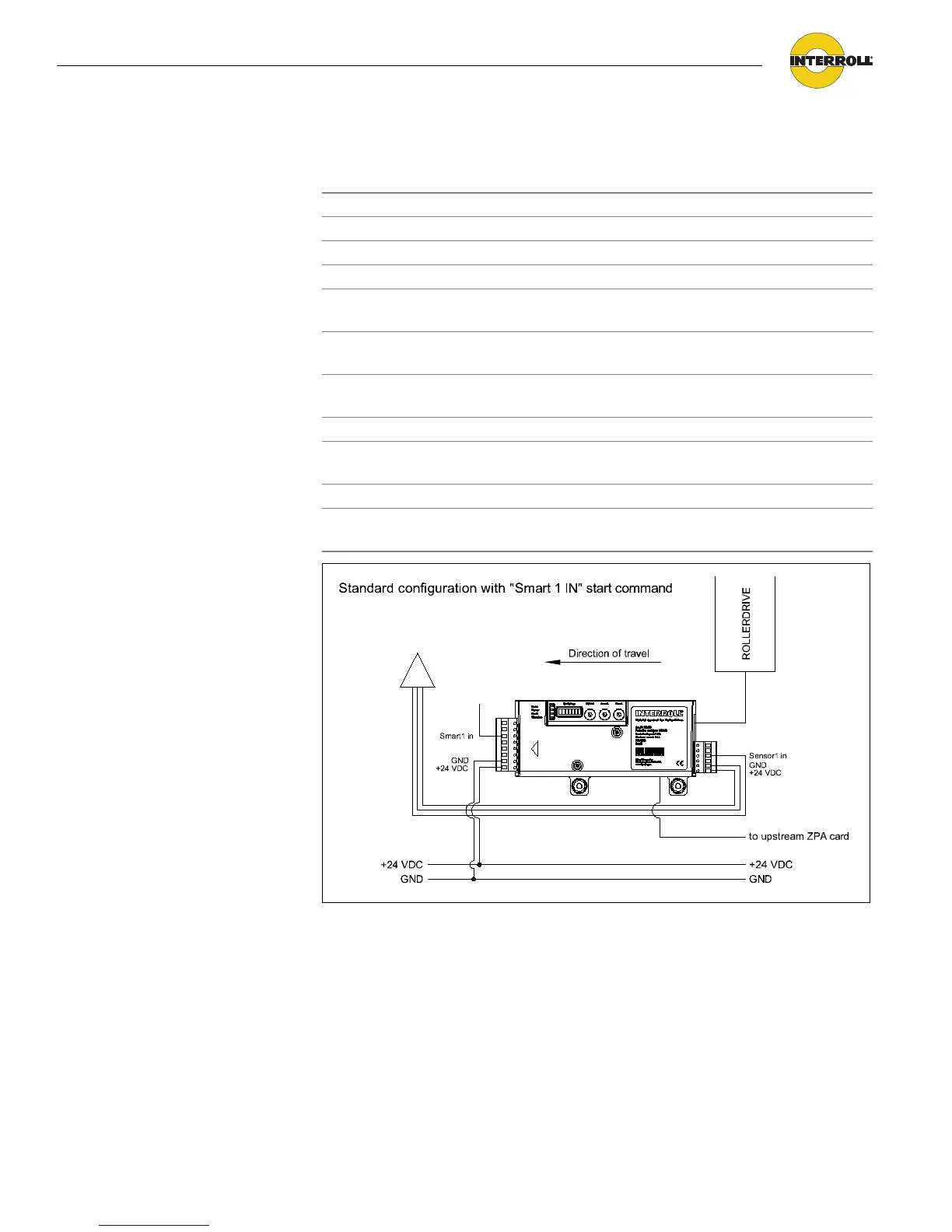

9006 Hybrid Control for RollerDrive
Product information
9006 is exit zone
DIP switch settings:
• SW5: ON / OFF (specifies if this zone is a transport or exit zone)
Smart 1 IN signal (by PLC or photoeye):
• Start signal for PNP: 24 VDC
• Start signal for NPN: GND
Upstream device 9006
Downstream device----
DIP switch 4 Off On Off On
DIP switch 5 Off On On Off
Upstream peer-to-peer jog/
reverse
Disabled Functional Disabled Functional
Downstream peer-to-peer
jog/reverse
Disabled Functional Functional Disabled
Zone type Smart I/O
exit
ZPA-mode ZPA-mode Smart I/O
exit
Smart 1 (in) Perm. Jog Jog Perm.
Reverse (in) System
reverse
System
reverse
System
reverse
System
reverse
Smart 1 (out) Request Motor run Motor run Request
Sensor 2 Another
C sensor
Another
C sensor
Another
C sensor
Another
C sensor
