Invacare Action 3 NG User Manual

Invacare®Action3NG
Adjustingtheheight
1.LoosenthescrewBwith5mmAllenkeyinthegroove
Cofthearmresttube.
2.Movethearmrestupwardsordownwardsuntilyou
reachthedesiredheight,whilekeepingscrewBin
place(atthetopedgeoftheholder).
3.TightenthescrewB(5–6Nm).
4.Performthesettingonbothsides.

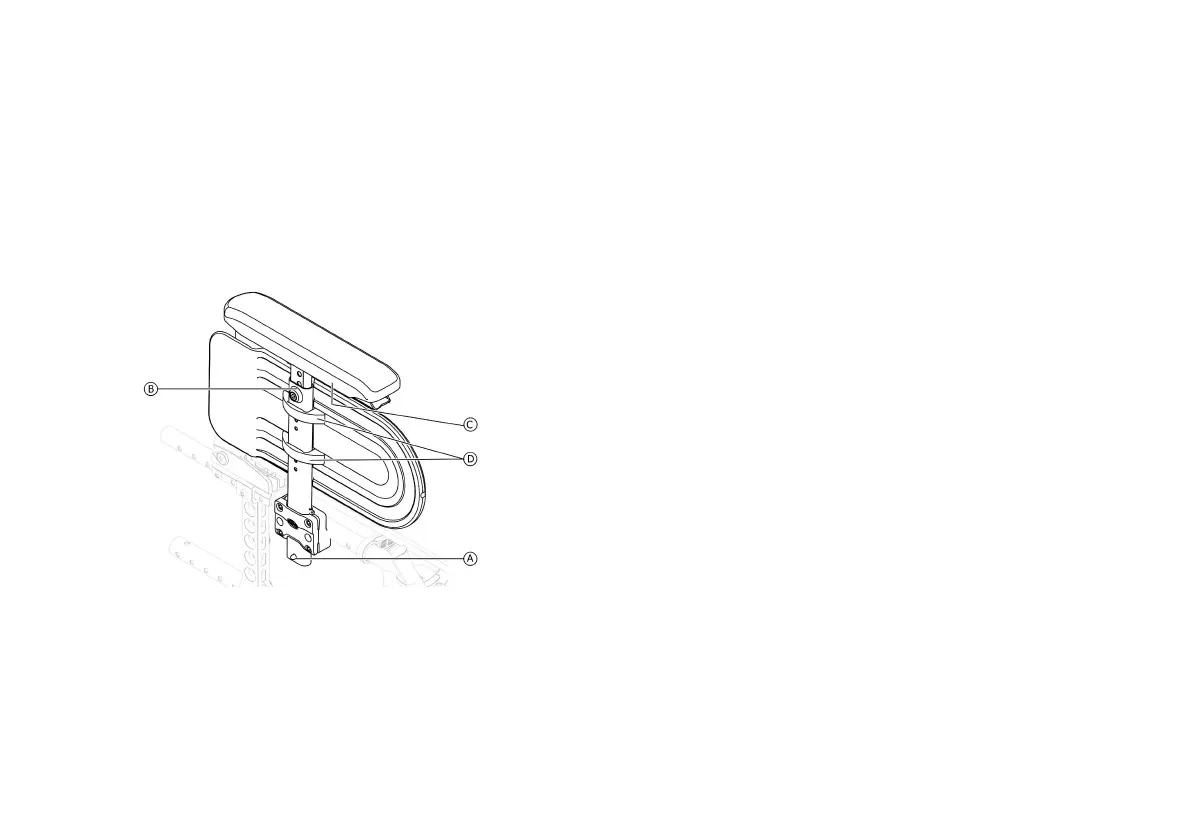

3.7.3Armrest,heightadjustable,removable
Removing
1.PreviouslypressonthelockingmechanismAlocated
atthebottomofthearmrestverticalbracket(ifso
equipped).
2.Pullthearmrestbythearmcushionoutoftheholder.
Fitting
1.Pushthearmrestintotheholder .
Adjustingthearmpadheight
1.LoosenthescrewBwith5mmAllenkeyattopofthe
armresttube.
2.Movethearmrestupwardsordownwardsuntilyou
reachthedesiredheight,whilekeepingscrewBin
place.
3.TightenthescrewB(5–6Nm).
4.Performthesettingonbothsides.
Adjustingthearmpaddepth
1.Loosenthe2screwsCbelowthearmrestbracket.
2.Movethearmrestfrontwardsorrearwardsuntilyou
reachthedesireddepth,whilekeepingscrewCin
place.
3.Tightenthe2screwsC(1,5–2Nm).
4.Performthesettingonbothsides.
Adjustingthesideprotectionheight
1.Loosenthe2screwsofthesideprotectionclampsD.
2.Movethesideprotectionupwardsordownwardsuntil
youreachthedesiredheight.
3.Tightenthe2screwsofthesideprotectclampsD
(0,7–1,2Nm).
4.Performthesettingonbothsides.
24
1608467-E

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
