Invacare Action 3 NG User Manual

ProductOverview

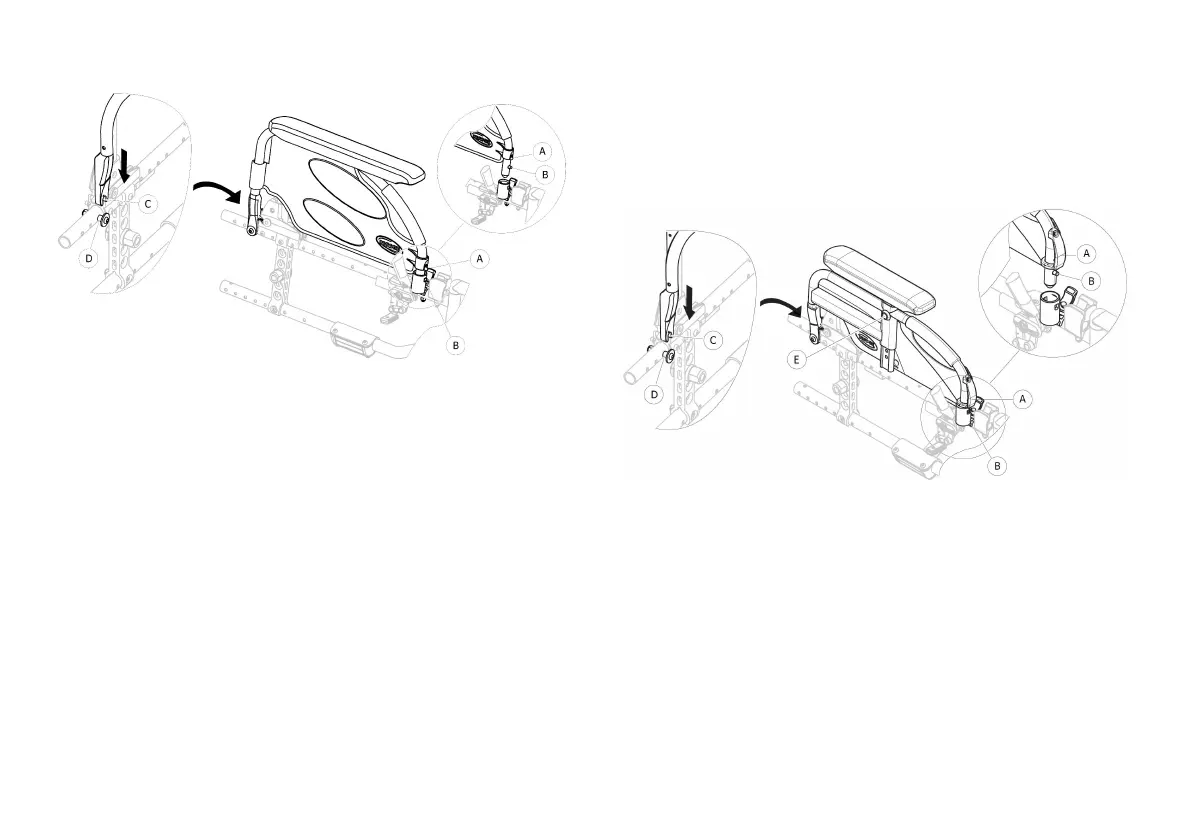

3.7.4Armrest,foldableandremovable
Folding
1.Gripthearmrestbythearmpadorbythefrontcurve
andfolditback.
Frontremoving
1.PressandholdthearmrestreleasepushpinAatthe
front.
2.Removearmrestfromarmrestsocketbypullingstraight
upandfolditback.
Fronttting
1.Pushthearmrestdownanduntilthefrontrelease
buttonBsnapsintoitsarmrestsockethole.
2.Ensurebuttonprotrudesfullythroughsockethole.
Rearremoving
1.RemovearmrestfromarmrestbracketDbypulling
straightuponthearmrest.
Reartting
1.PositionarmrestsupportCoverreararmrestbracketD.
2.Pushthearmrestdownuntilaclear“click”isheard
whenit’slockedintothearmrestbracketD.
3.7.5Armrest,heightadjustable,foldableandremovable
Folding
1.Gripthearmrestbythearmpadorbythefrontcurve
andfolditback.
Frontremoving
1.PressandholdthearmrestreleasebracketAatthe
front.
2.Removearmrestfromarmrestsocketbypullingstraight
upandfolditback.
1608467-E25

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
