Invacare Action 3 NG User Manual

Transport

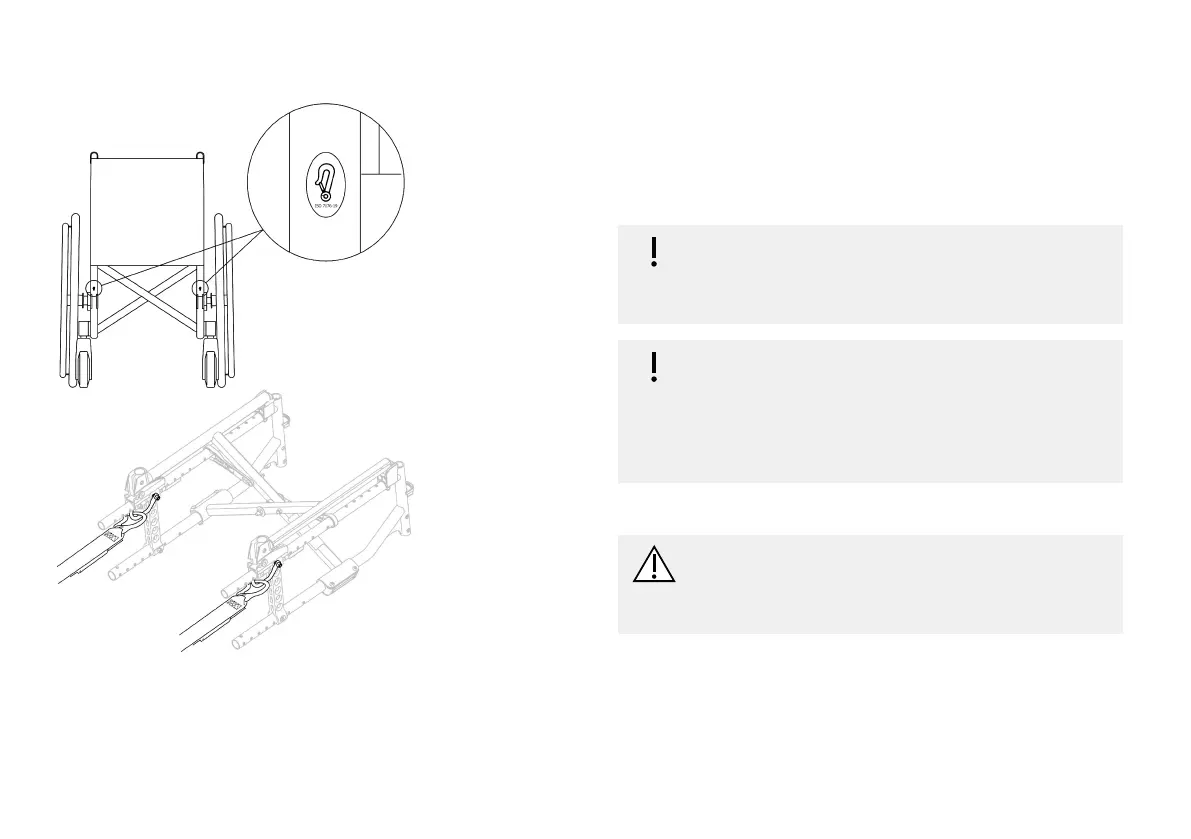

Rearsidetie-downpositionsforsnaphooks:1.Attachthesnaphookstotheorangeringsasshownin
thetwoguresabove(seelocationoftheattachment
labels).
2.Attachrearstrapstotherailsystemreferringtobest
practicerecommendedinstructionsfromthesafetybelt
manufacturer.
3.Tightenthestraps.
IMPORTANT!
–Makesurethatthesnaphooksarecovered
withslipresistantmaterialtoavoidlaterally
slippingontheaxle.
IMPORTANT!
–Checktheplungersarefullyengagedonboth
sidesandlocatedinthesamepositionofthe
cut-outsectionoftherail.
–Makesurethattheanglebetweentherailsand
thestrapsliesbetween40°and45°.
Fitposturebelt
WARNING!
Theposturebeltcanbeusedinadditiontobut
neverasasubstituteforanapprovedpassenger
restraintsystem(3-pointbelt).
1.Adjustposturebelttotthewheelchairoccupant,see
section4.5Posturebelt,page35.
1608467-E61

Invacare Action 3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Crash Tested	Yes
Wheel Size	24 inches
Overall Width	58-70 cm
Front Casters	8 inches
Armrests	Optional
Footrests	Swing-away
Seat Width	380 - 530 mm
Seat Depth	40-50 cm
Seat Height	400 - 510 mm
