Invacare Bora Series - Adjusting Height of Rea Headrest or Neckrest; Adjusting Cheek Supports

Invacare®Bora/SpectraXTRSeries
•5mmAllenkey
1.LoosenthescrewsA,BortheclampingleverC.
2.Adjusttheheadrestorneckresttotherequiredposition.
3.Retightenscrewsandclampinglever.
4.LoosentheAllenscrewD.
5.Slidetheheadrestleftorrighttotherequiredposition.
6.RetightentheAllenscrew.
5.11.2AdjustingHeightofReaHeadrestorNeckrest
TheadjustmentoftheheightisthesameforallRea
headrestsandneckrests.

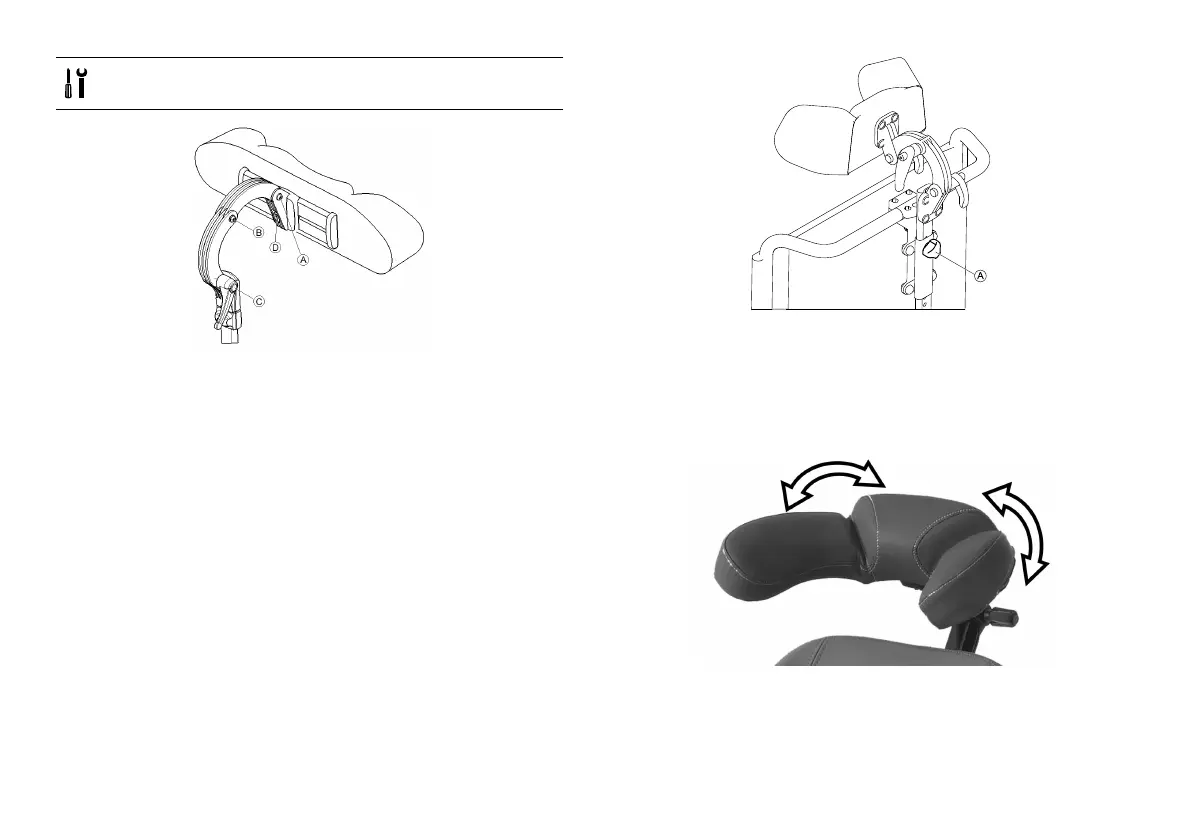

Fig.5-38
1.LoosenhandscrewA.
2.Adjustcomponenttodesiredposition.
3.Tightenhandscrew.
5.11.3AdjustingCheekSupports
Fig.5-39
1.Pushcomponentsinwardsorpullcomponentsoutto
desiredposition.
561528224-Y
