Invacare Bora Series - Setting the End Stop of the Footrest

Setup
3.
Loosenthescrew(1)usingtheAllenkey.
4.Setthedesiredangle.
5.Re-tightenthescrew.
5.16.3Settingtheendstopofthefootrest
•6mmAllenkey
•10mmwrench
1.

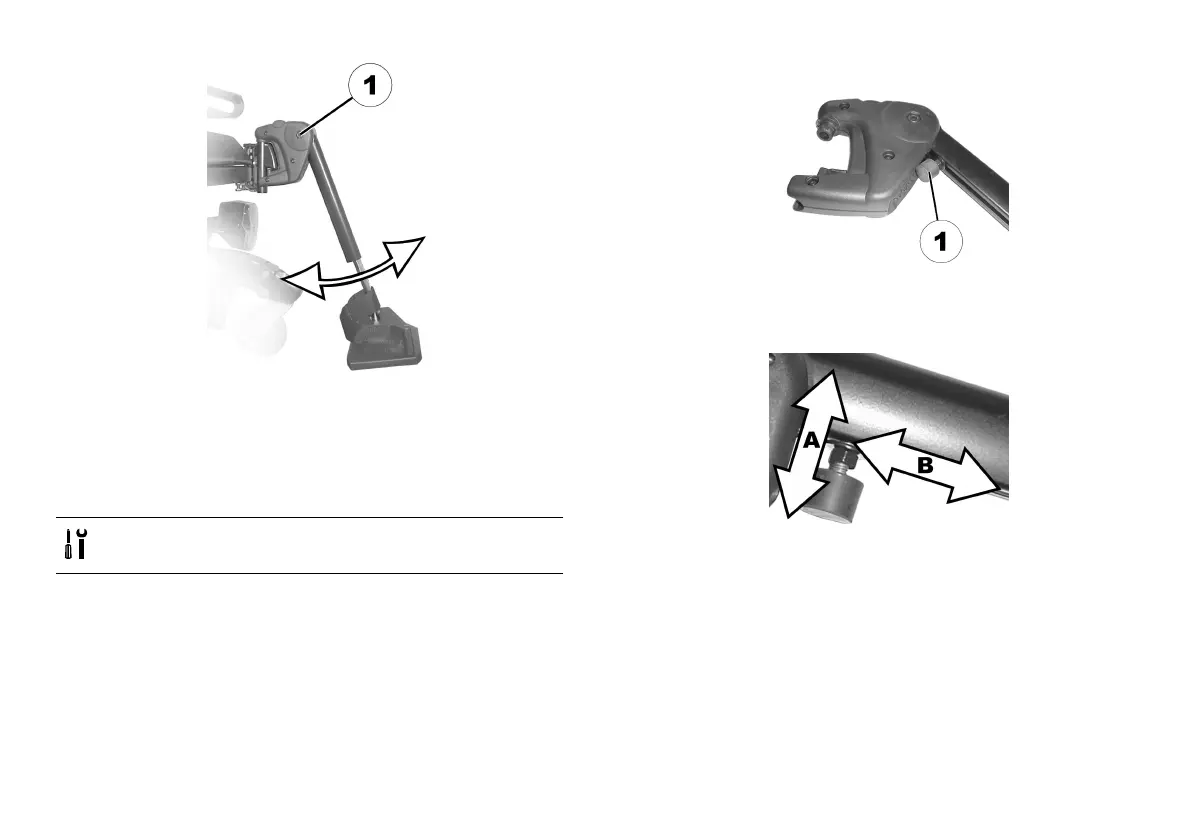

Fig.5-50
Theendpositionofthefootrestisdeterminedbymeans
ofarubberstop(1).
2.
Fig.5-51
Therubberstopcanbescrewedinorout(A)orpushed
upordown(B).
