Invacare G40 - Page 13

13
1 Chassis (Tube frame back, bottom)
2 Seat frame, appertaining to seat system
3 Seat shell with indentations for electronic
modules
4 Locking mechanism of seat support for
service
5 Locking mechanism of seat in closed
position
6 Gas spring for back rest adjusting
7 Batteries in battery box
8 Battery box
9 Cable form for drive motor

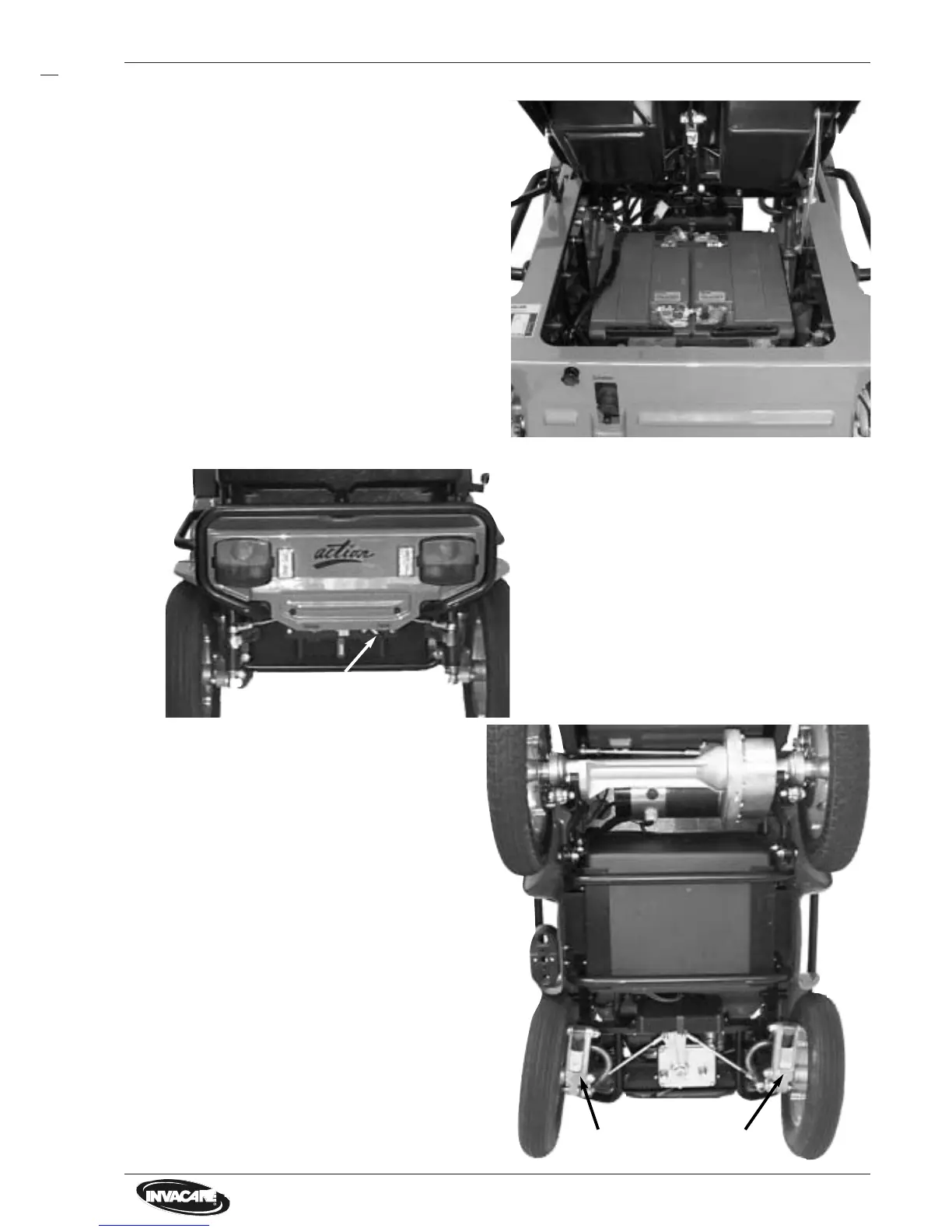

G40, service view
2
2
3
3
4
5
7
6
7
9
11
10
G40, back view
10 Disengaging lever for drive motor
11 Cable form for servo-/light module
12 Lighting system back, integrated in chassis
13 Shock absorbers, back
14 Steering rod, appertaining to power-assisted
steering
1
12
12
13
13
14
14
15
G40, bottom view
16
17
8
18
19
1
1
20
20
15 Disengaging lever for servo motor
16 Gear box with front axle
17 Drive motor, flange mounted to gear box
18 Main module of drive electronics
19 Servo steering with motor
20 Wheel suspension, back
