Invacare G40 - Chassis Checks and Repairs; Chassis Covering, Grips, and Cover Coating

20
8.0 Checks and repair work at chassis
8.1 Chassiscovering, grips and cover coating
Disassembly side grip
• Bring seat system in service position and arrest.
• Remove caps (9), remove hexagon head screws (10) with discs (11) and take off grip (2) with rosettes
(4).
Assembly
• Assembly is carried out in reverse order.
• Cover coating loose or damaged?
• Side grip or rosette damaged?
• Chassiscovering damaged?
• Stick holder damaged?
> Stick or replace coating.
> Replace side grip or rosette.
> Replace chassiscovering.
> Replace stick holder.
Check Action
Chassiscovering
Side grip
1
2
3
24
6
7
8
5
9, 10, 11
9, 10, 11

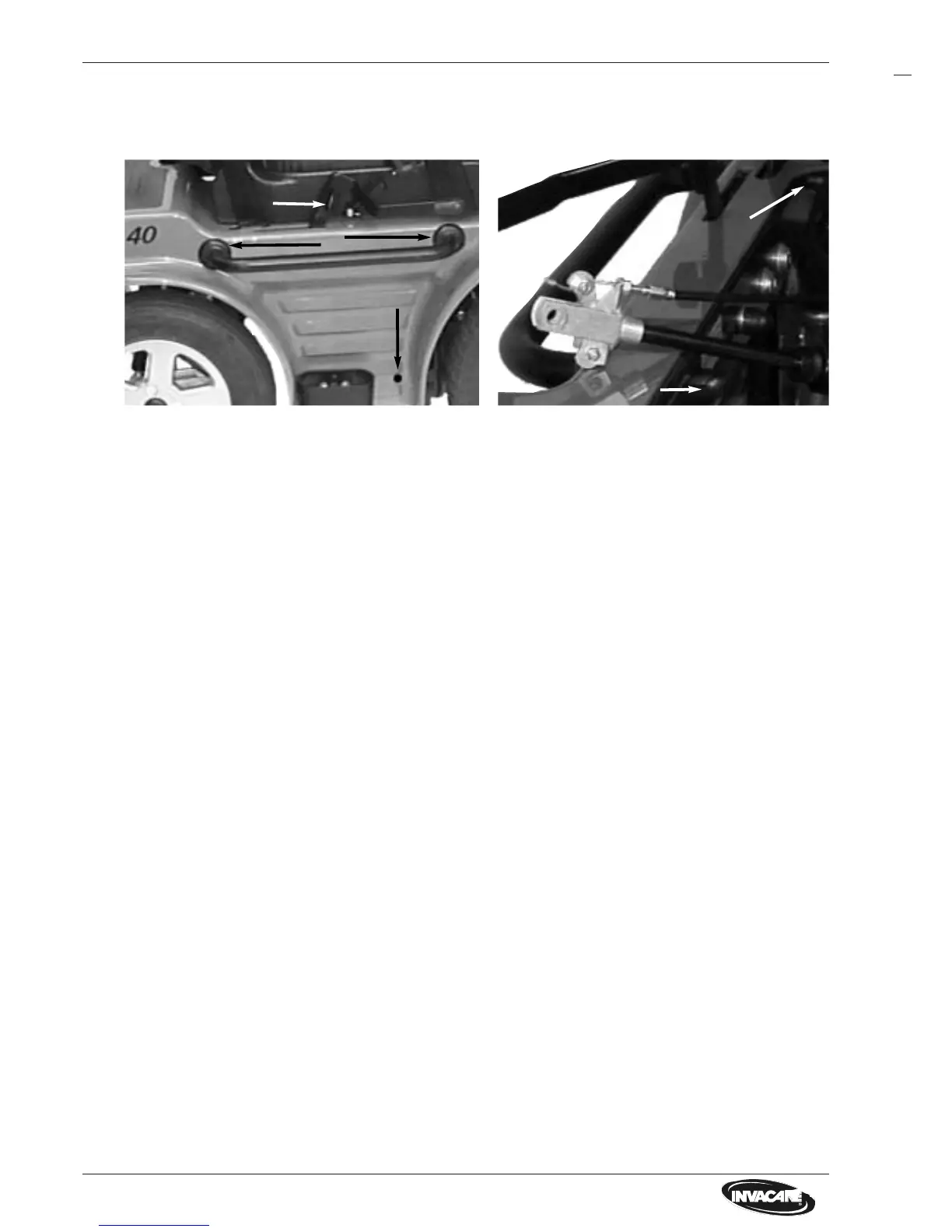

disassembly chassiscovering
• Remove hexagon head screws with nuts and take off stick holder (5).
• Release wing screw (8) and take off brake lever (7).
• Remove side grips (2) with rosettes (4).
• Remove the eight plastic rivets (6), two at sides, two at front, two at back.
For doing that you first must draw off the pins (in covering) with pliers out of the rivets.Then remove the
rivets from outside with a screwdriver.
• Take off chassiscovering from chassis upwards.
Assembly
• Assembly is carried out in reverse order.
1 Chassiscovering 2 Side grip 3 Cover coating
4 Rosettes 5 Stick holderr 6 Plastic rivet
7 Brake lever 8 Wing screw M6x10 9 Cap SKS 8
10 Hexagon head screw 11 Securing disc Schnorr M8
NOTE:
Before thedisassembly of chassiscovering you first must disassemble the seat system completely.
See chapter 7.1 to 7.5.
