Invacare G40 - Seat System Checks and Repairs; Arm Rests and Sides

14
7.0 Checks and repair work at seat system
7.1 Arm rests and sides
• Arm rest damaged?
• Screws of arm rest loose?
• Bag damaged?
• Side covering damaged?
• Arm rest tube frame damaged?
• Side mount damaged?
• Clip lever damaged?
• Mirror damaged?
> Replace arm rest.
> Tighten screws.
> Replace bag.
> Replace side covering.
> Replace arm rest tube frame.
> Replace side mount.
> Replace clip lever.
> Replace mirror.
Check Action

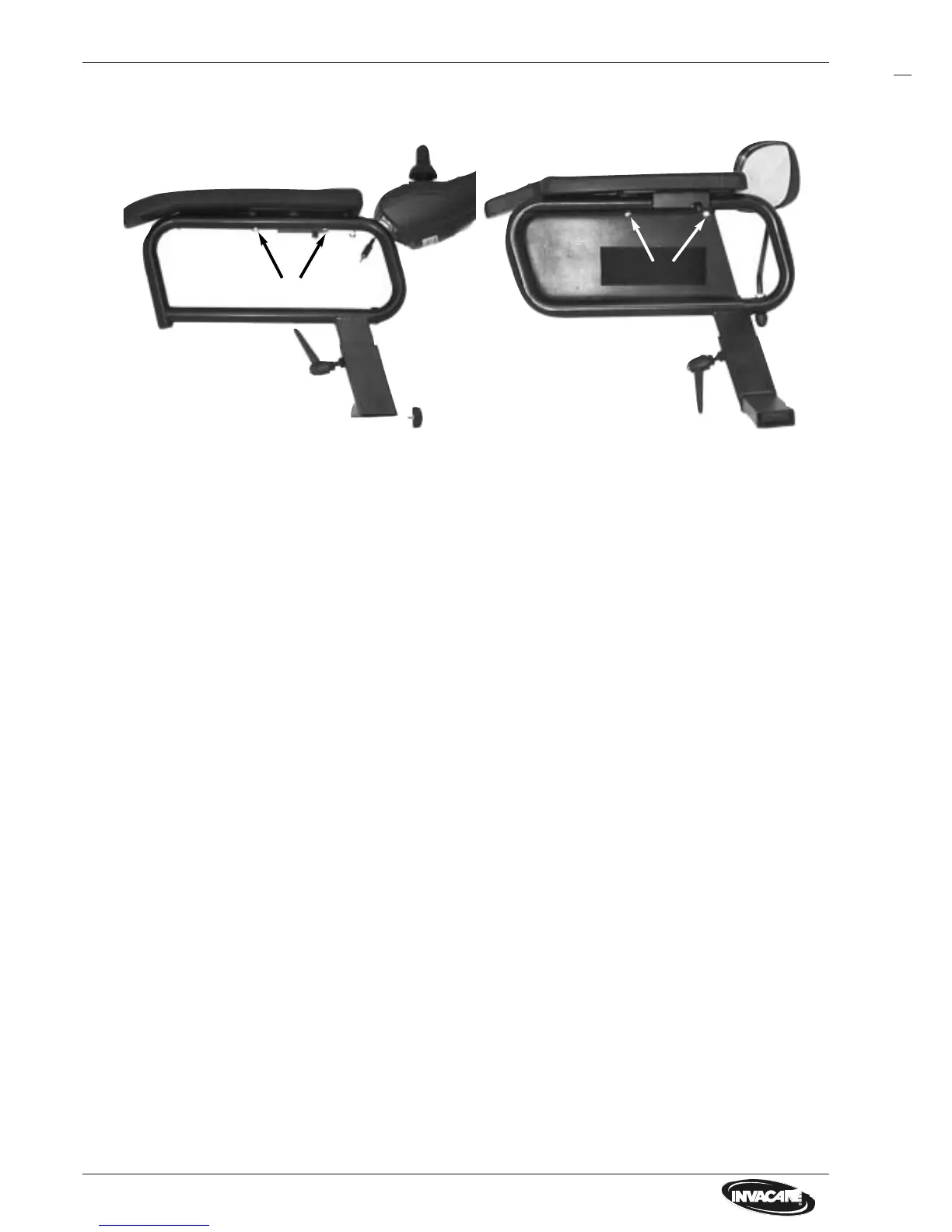

Right side, complete Left side, complete
1
3
1
2
2
5
5
6
6
7
8
13
10
12, 11
12, 11
9
1 Arm rest tube frame 2 Arm rest
3 Side covering 4 Bag (not illustrated)
5 Side mount 6 Clip lever M8x60
7 Mirror 8 Wing screw M6x10
9 Hexagon head screw M6x16 10 Nut M8, self locking with cap
11 Hexagon head screw M5x35 12 Disc 5,4
13 Nut M8
Complete disassembly
• Bring seat system in service position and arrest.
• Release wing screw (8) and draw off sides with arm rest sideways away from chassis.
• Release clip lever and draw off side mount downwards.
• Release bag (4) from side covering (3) (velcro fastener).
• Release screws (11) with discs (12) at side covering and draw off arm rest (2).
• Release plastic rivets at bottom of side covering with a screw driver and draw off side covering (3)
from arm rest tube frame.
• Remove cap, release nut (10) and draw off mirror (7) out of arm rest tube frame (1).
Assembly
• The assembly is carried out in reverse order.
NOTE:
If there´s an arm rest with integrated remote:
Switch off wheelchair, take plug out of remote, release remote and take it out of arm rest.
