17
Assembly
• Assembly is carried out in reverse order.
For assembly of backframe at chassis do the following:
• Positon chassis, back- and side frame so, that you can insert backmount socket (3) with discs.
• Put in the starlock caps into the pliers as you can see below.
• Position pliers with caps (4) on both sides on the backmount socket and tighten.
• Tighten pliers with a ring spanner until the caps are completely pressed on.
• Release starlock pliers and take off.
• Complete assembly of backrest.
NOTE:
• Use new starlock caps (4) for assembly.
• During assembly of backframe (2) take care, that the discs (5) are pushed into the backmount socket
in right order.

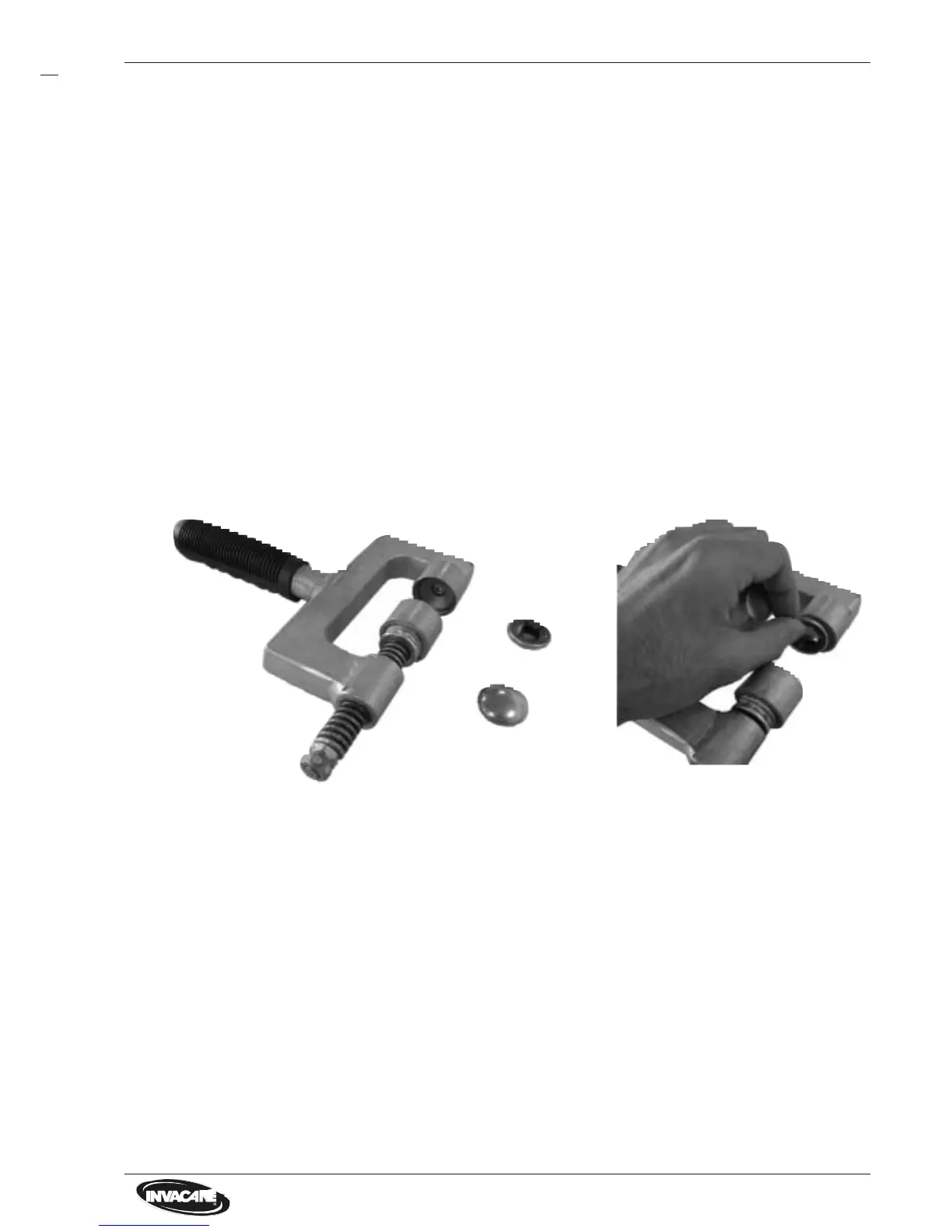

Starlock pliers with caps
Insertion of caps
4
