SECTION 10—CHECK VALVES
Part No 1148070 47 Perfecto
2
™
8. ReinstallcompressorinletHEPAfilter.RefertoReplacingtheCompressorInletHEPA
Filteronpage 26.
9. Rununitsandcheckforleaks.RefertoLeakTestonpage 76.
10. Reinstallcabinet.RefertoRemovingCabinetonpage 23.

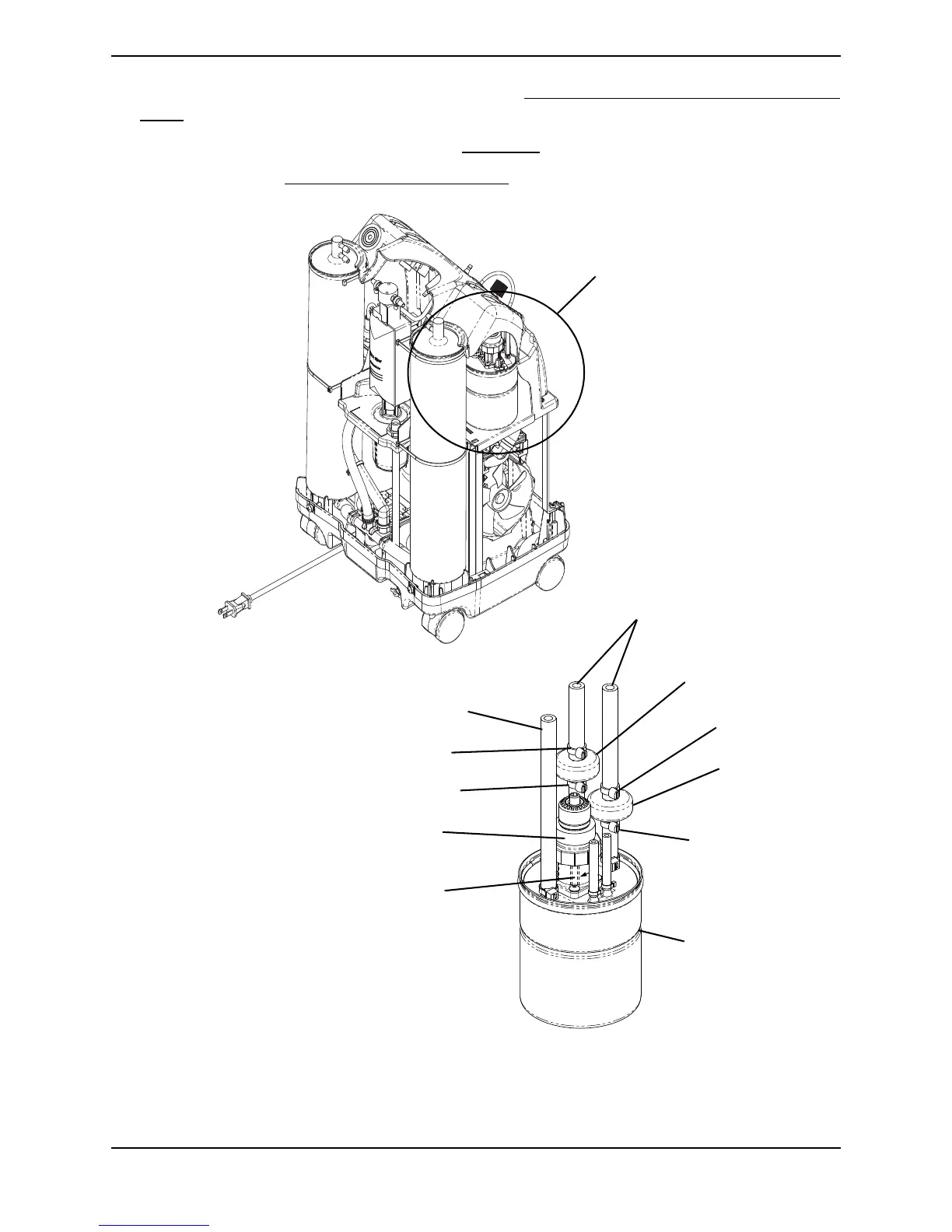

FIGURE 10.1 Replacing Check Valves
Tie-wrap
Check Valves
Product Tank
Location of Product Tank
Tie-wrap
Check Valves
Tie-wrap
Tie-wrap
Regulator Outlet Tubing
Flow Arrow
¼ PVC Inlet Tubing
Regulator
