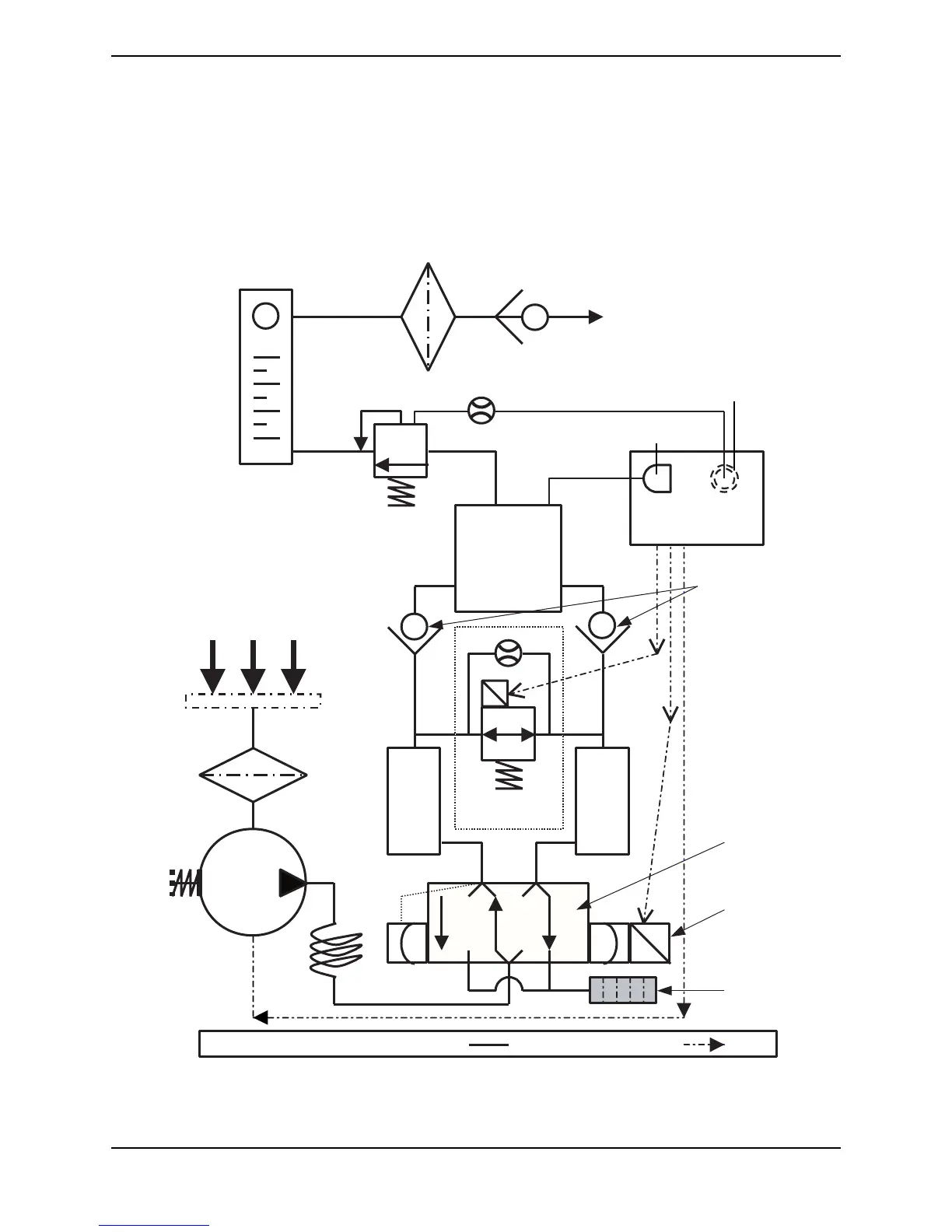

SECTION 3—PNEUMATIC DIAGRAM

Part No 1148070 15 Perfecto

™

SECTION 3—PNEUMATIC

DIAGRAM

Perfecto2 Oxygen Concentrator

Flowmeter

Ouput

HEPA Filter

Output

Check

Valve

Patient

Output

Oxygen Sensor

(SensO

models Only)

Pressure Sensor

P.S.I.

P.C. Board

Pressure

Regulator

Product

Tank

Check

Valves

Air Inlet

Cabinet

Filter

Compressor

Inlet Filter

Sieve

Bed

Sieve

Bed

P.E. Valve

4-way

Valve

Compressor

Relief

Valve

Heat

Solenoid

Pilot

Exhaust

Muffler

LEGEND Pneumatic Connections Electrical Connections
