SECTION 20—4-WAY VALVE/MANIFOLD ASSEMBLY
Part No 1148070 67 Perfecto
2
™

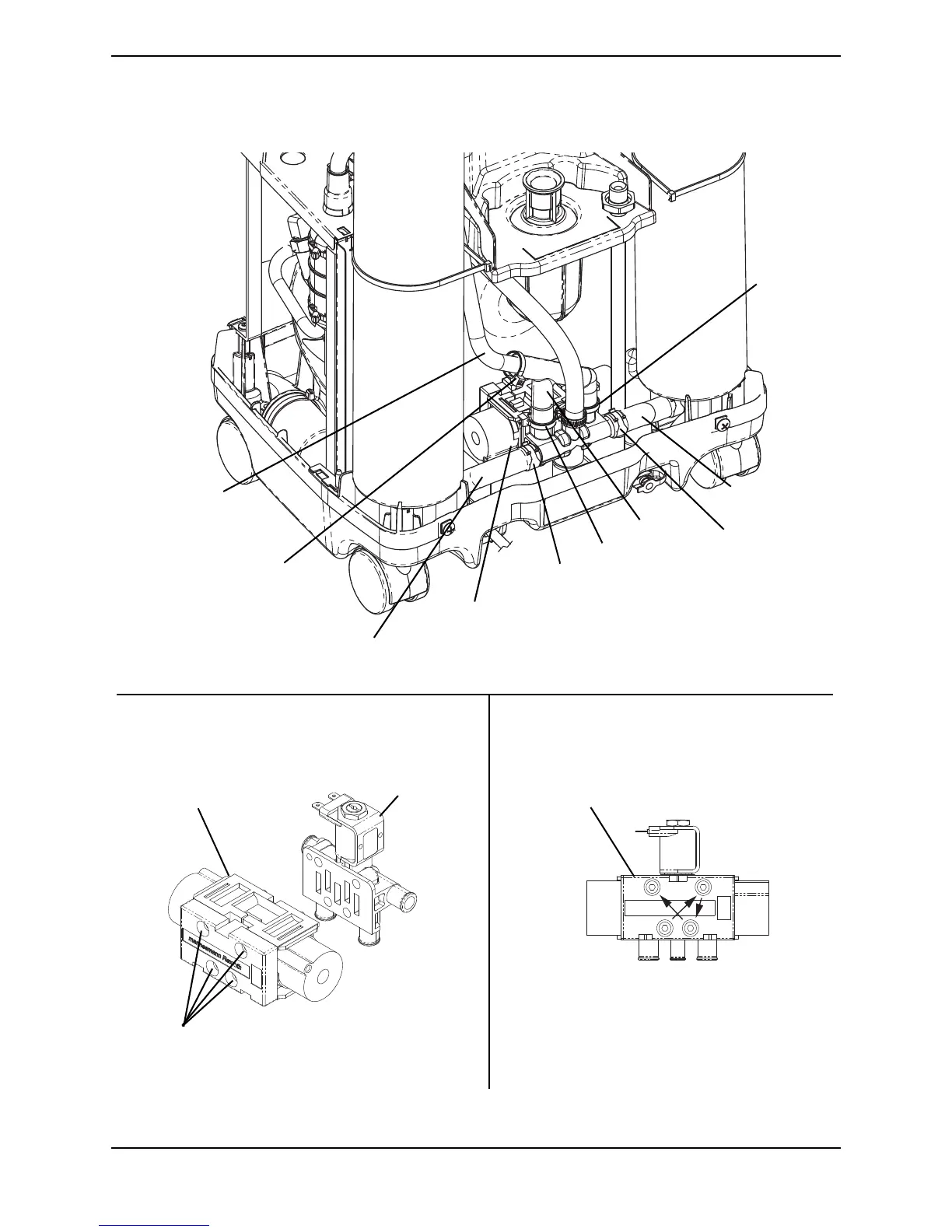

FIGURE 20.1 Replacing 4-Way Valve and/or Manifold Assembly
1
2
4
3
NOTE:TheNumbersabove
indicatetheMOUNTINGSCREW
TORQUESEQUENCE:
pre‐tor q ueto10+2inch‐lbs.,
thentorqueto 22+2inch‐lbs.
Mounting
Screws
4-Way Valve
Manifold
Assembly
Manifold
Exhaust
Tube
Tie
Wrap
“F” Tube
4 Way Valve/
Manifold Assembly
Tie
Wrap
Tie Wrap
Clamp
Vinyl Tube
Clamp
Vinyl Tube
DETAIL “A”
DETAIL “B”
4-Way Valve/
Manifold
Assembly
