SECTION 6—FRONT RIGGINGS
Part No 1114809 71 TDX™ Wheelchairs

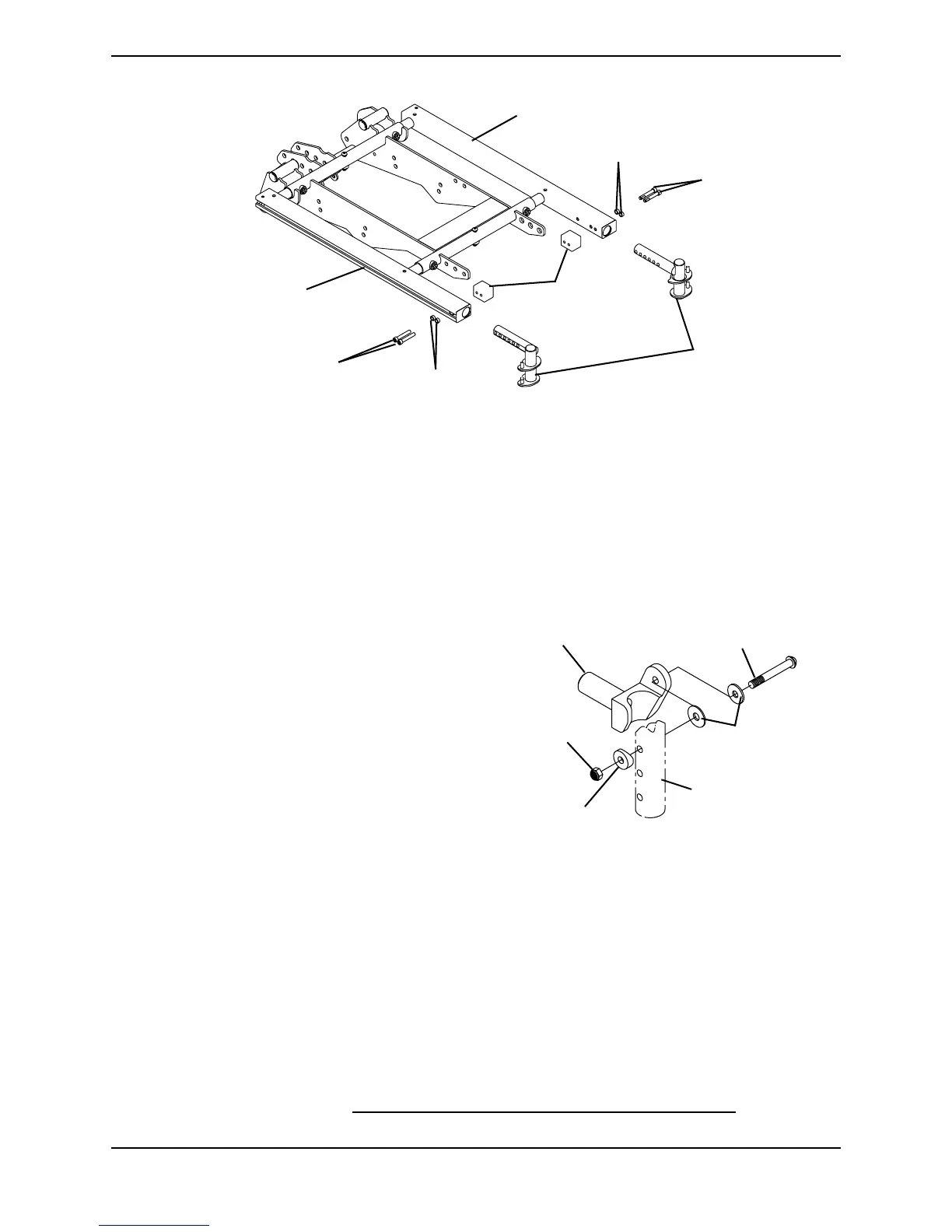

FIGURE 6.7 Adjusting/Replacing Telescoping Front Rigging Support - Wheelchairs without
2G Tarsys Systems
Installing Adjustable Angle Flip-up Footplate Hinge
NOTE: For this procedure, refer to FIGURE 6.8.
1. Position footplate hinge on the footrest
support tube at the desired height.
2. Position mounting screw, washers,
spacer, and locknut on the footrest
support as shown (FIGURE 6.8).
3. Flip the footplate hinge to the up
position.
NOTE: The footplate hinge will fall to the down
position.
FIGURE 6.8 Installing Adjustable Angle
Flip-up Footplate Hinge
4. Tighten the mounting screw, washer, and locknut that secure the footplate hinge to the
footrest support until the footplate hinge remains in the up position.
5. Check the up and down motion of the footplate hinge to make sure the user of the
wheelchair can operate the footplates easily.
NOTE: If footplate's motion is too tight, loosen the mounting screw and locknut approximately
¼-turn counterclockwise.
NOTE: If the footplate's motion is too loose, tighten mounting screw and locknut approximately
¼-turn clockwise.
6. Adjust footplate. Refer to Installing Adjustable Angle Flip-up Footplates on page 72.
Telescoping
Front Tube
Cap Screws
Spacers
Threaded
Blocks
Side Rail
Cap Screws
Spacers
Side Rail
Side Rail
NOTE: Formula TRE seat frame shown. Telescoping front rigging supports install in the
same way on the ASBA seat frame.
Footplate
Hinge
Locknut
Spacer
Footrest Support
Washers
Mounting Screw
