Managing the Keypad
5. Managing the Keypad
The drive is configured and its operation monitored via the built in keypad and display.
IP20 Drives:
IP20 rated drives are supplied with a 7 Segment LED display and a five button keypad (Start, Stop, Navigate, Up, Down)
IP55 and IP66 Drives:
IP55 and IP66 rated drives are supplied with an OLED multi-line text display and a seven button keypad (Start, Stop,
Navigate, Up, Down, Hand, Auto)
Commissioning and operation of the drive with the two different Keypads and displays is detailed below.

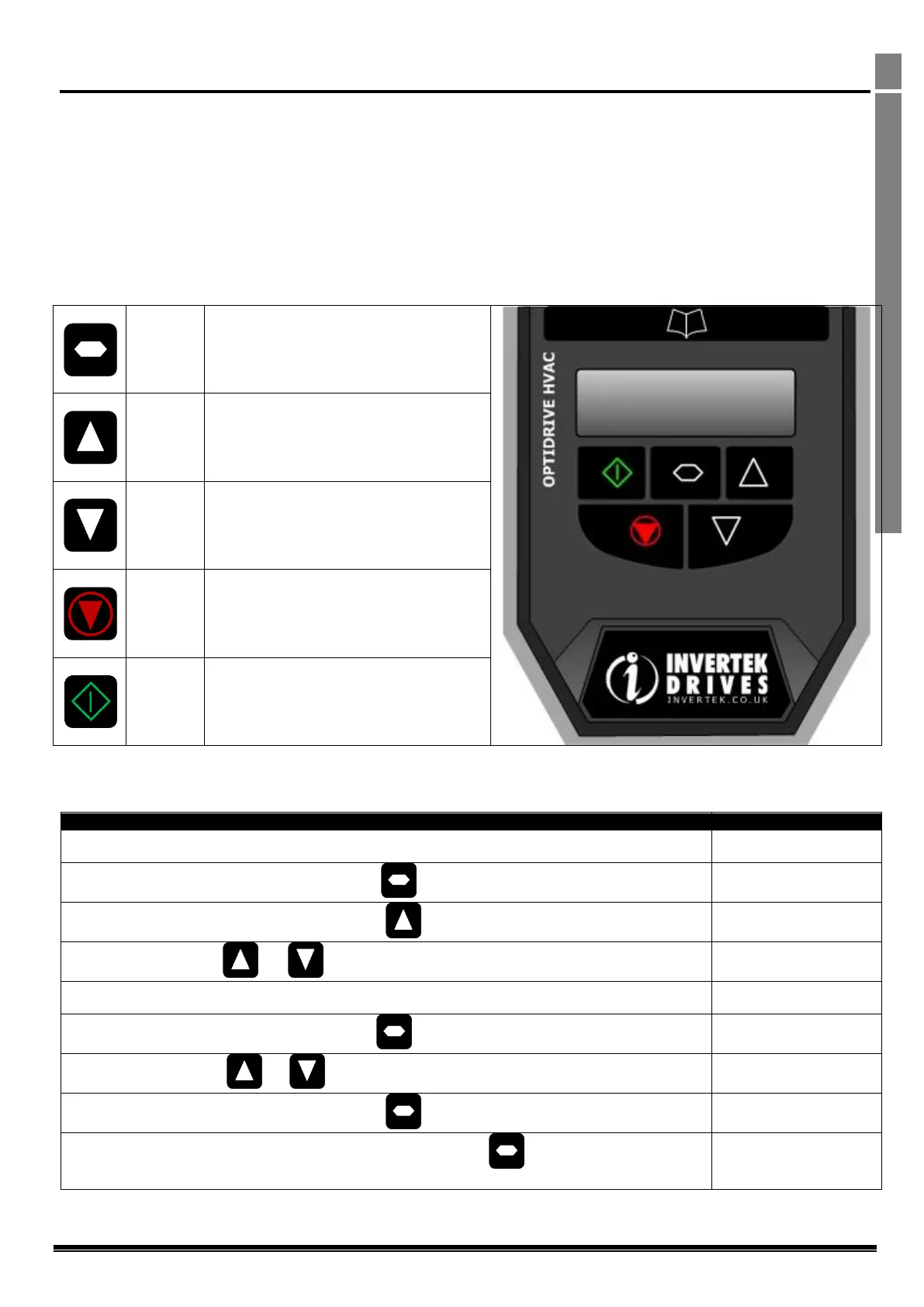

5.1. Keypad Layout and Function – Standard LED Keypad (IP20 Drives)
NAVIGATE
Used to display real-time information, to
access and exit parameter edit mode and to
store parameter changes
UP
Used to increase speed in real-time mode or to
increase parameter values in parameter edit
mode
DOWN
Used to decrease speed in real-time mode or
to decrease parameter values in parameter
edit mode
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a
running drive.
START
When in keypad mode, used to Start a stopped
drive or to reverse the direction of rotation if
bi-directional keypad mode is enabled
5.2. Changing Parameters – Standard LED Keypad (IP20 Drives)
Procedure
Display shows...
Power on Drive

Press and hold the for >2 seconds

Press the Key

The and can be used to select the desired parameter
etc..
Select the required parameter, e.g. P1-02

Press the button
.
Use the and keys to adjust the value, e.g. set to 10
.
Press the key

The parameter value is now adjusted and automatically stored. Press the key for >2 seconds to return to
operating mode

