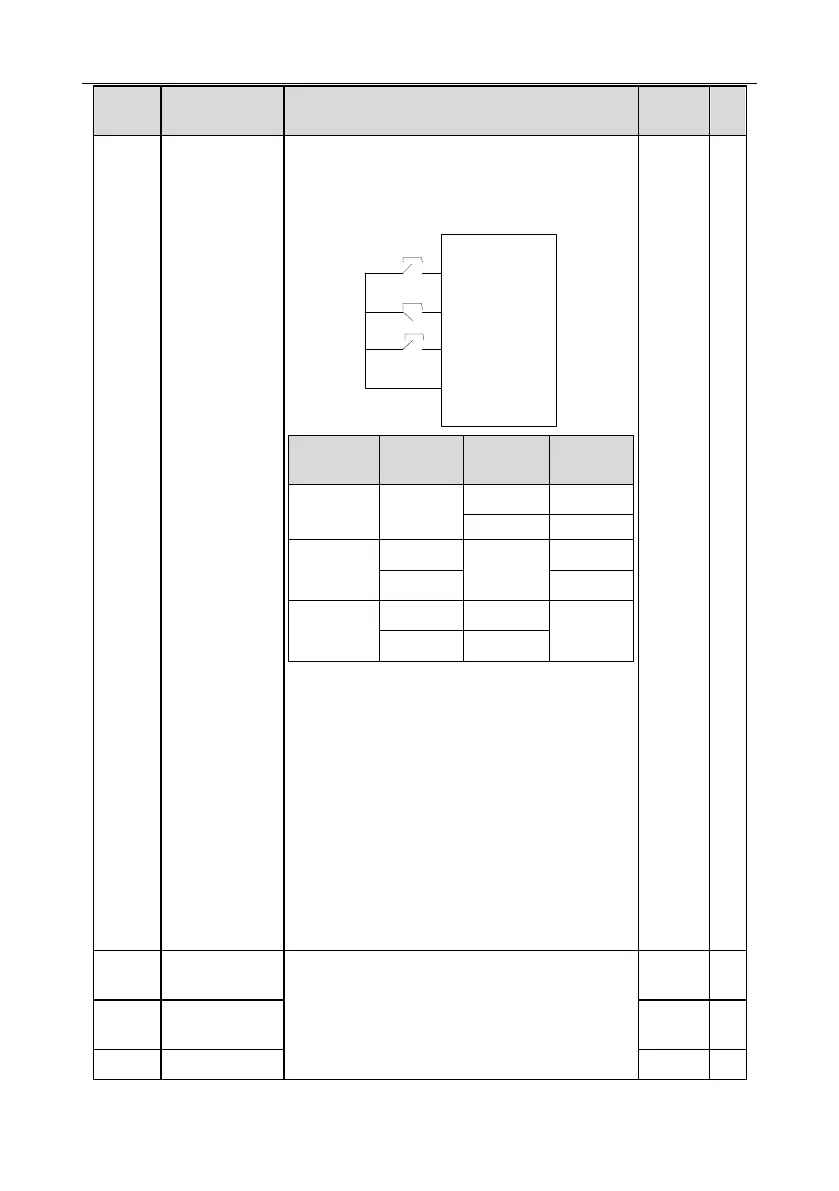

should be closed, and terminal FWD or REV
generates a rising edge signal to control the running
and direction of inverter; the inverter should be
stopped by disconnecting terminal Sin.
Sln: Tri-line running control, FWD: Forward running,
REV: Reverse running
Note: For dual-line running mode, when
FWD/REV terminal is valid, if the inverter stops
due to stop command given by other sources, it
will not run again after the stop command
disappears even if the control terminals
FWD/REV are still valid. To make the inverter run
again, users need to trigger FWD/REV again, eg,
PLC single-cycle stop, fixed-length stop, and
valid STOP/RST stop during terminal control.
(see P07.04)
These function codes define corresponding delay of
the programmable input terminals during level
variation from switch-on to switch-off .
