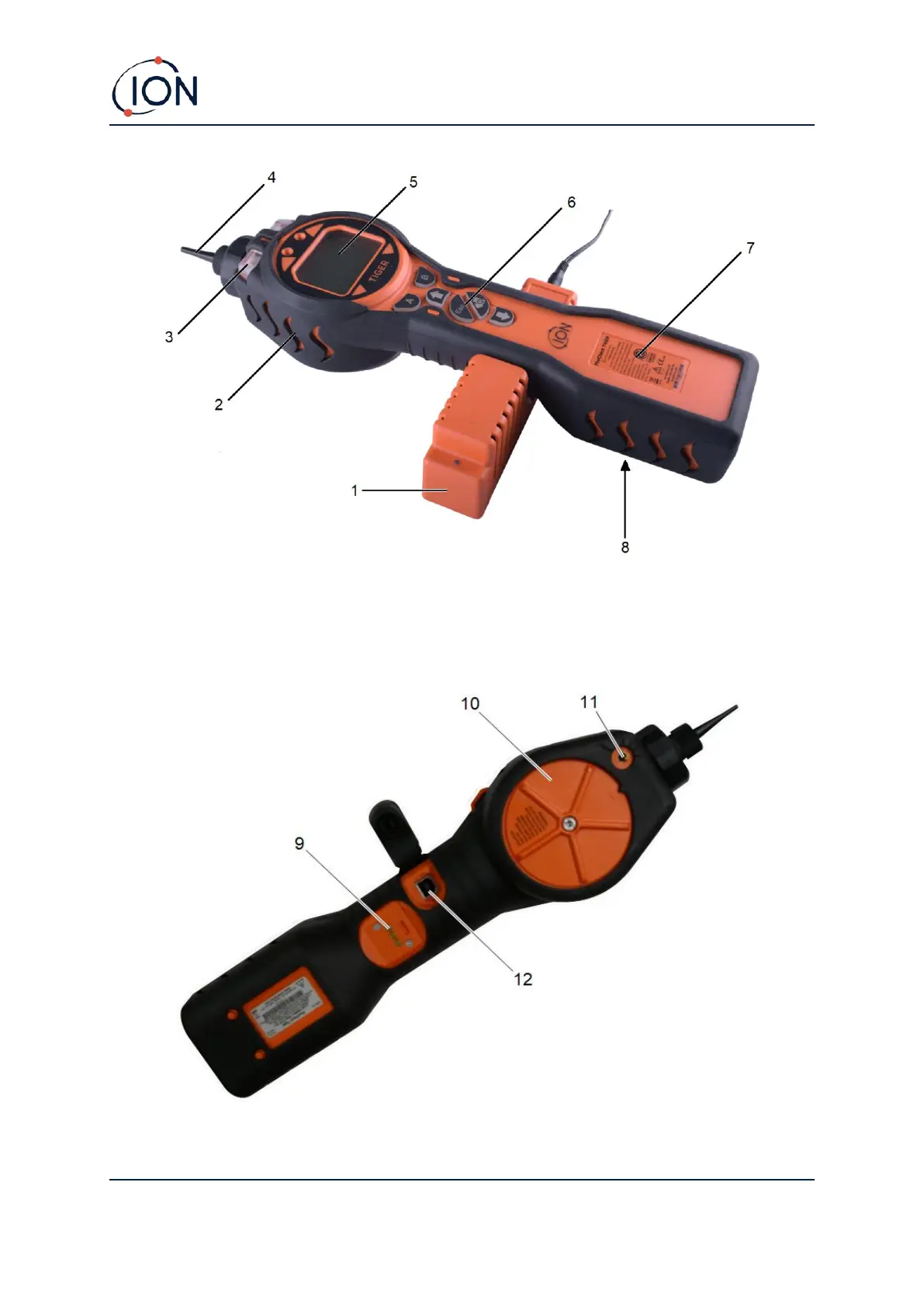

1 Charge Cradle
2 Instrument Boot
3 Alarm LEDs / Torch
4 Probe Assembly
5 Display Screen
6 Keypad
7 Instrument Body
8 Battery Pack
9 Charging Contacts
11 Pump Outlet
