ION TIGER User Manual

TIGER Instrument User Manual V3.10
Unrivalled Gas Detection. Page 25 of 72 ionscience.com

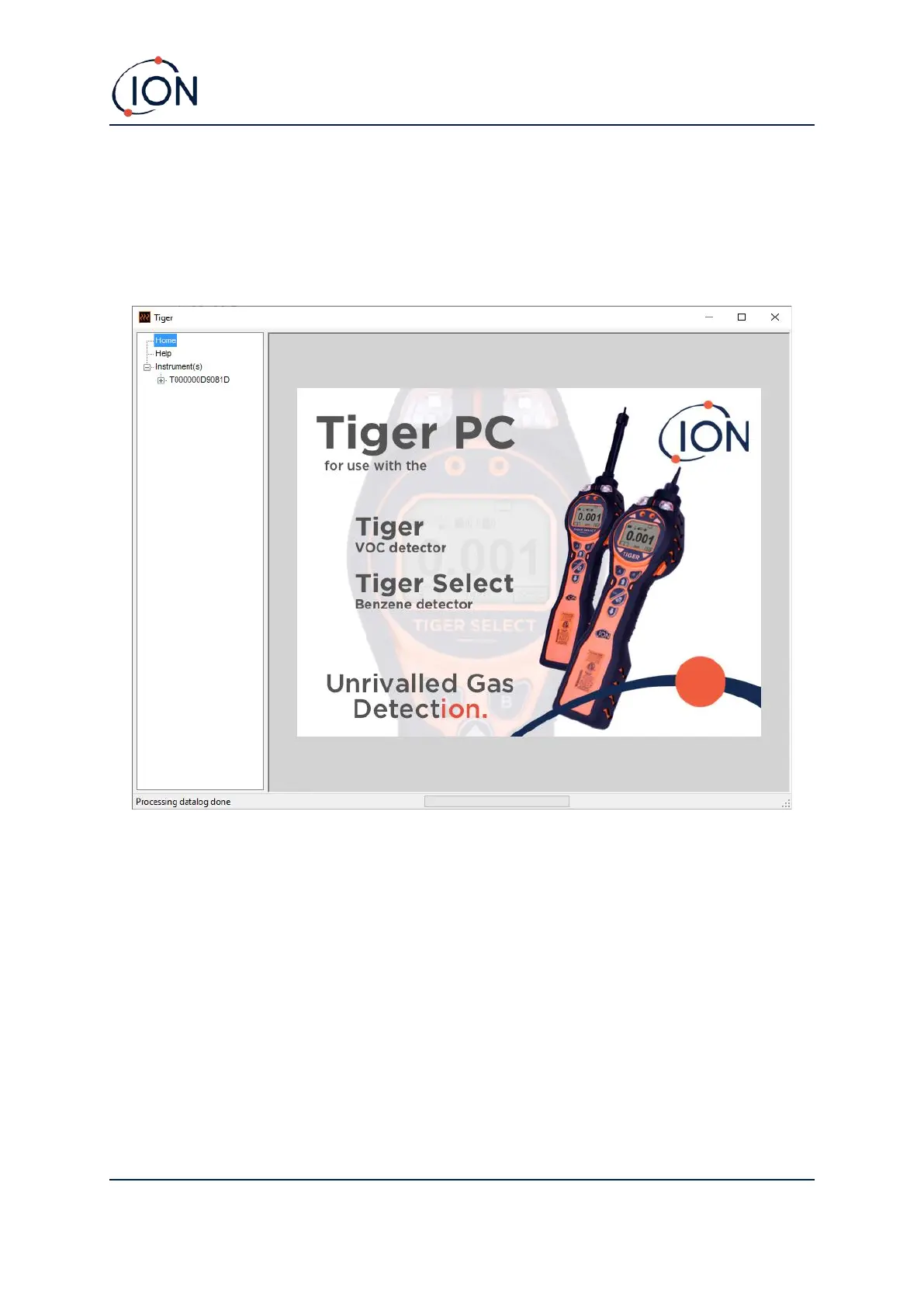

Opening TigerPC
Before opening TigerPC, connect your TIGER to the PC.
Double-click the Tiger icon on your desktop or in the Start menu to open TigerPC (or run Tiger.exe in
the installation folder). The Home page will be displayed:
The menu on the left-hand side is used to select further screens.

ION TIGER Specifications

General

Lamp Energy	10.6 eV
Minimum Resolution	0.001 ppm
Operating Humidity	0 – 99% RH (non-condensing)
Resolution	0.001 ppm
Power Supply	Rechargeable Li-ion battery
Operating Temperature	-20 to 50 °C, -4 to 122 °F (non-hazardous area)
