8. Maintenance
Inadequate performance of the gas detection equipment described in this
manual may not necessarily be self-evident and consequently equipment must
be regularly inspected and maintained.
Do not use abrasive or chemical detergents to clean the instrument as this may
reduce the antistatic properties of the materials used, clean it using a damp
cloth only.

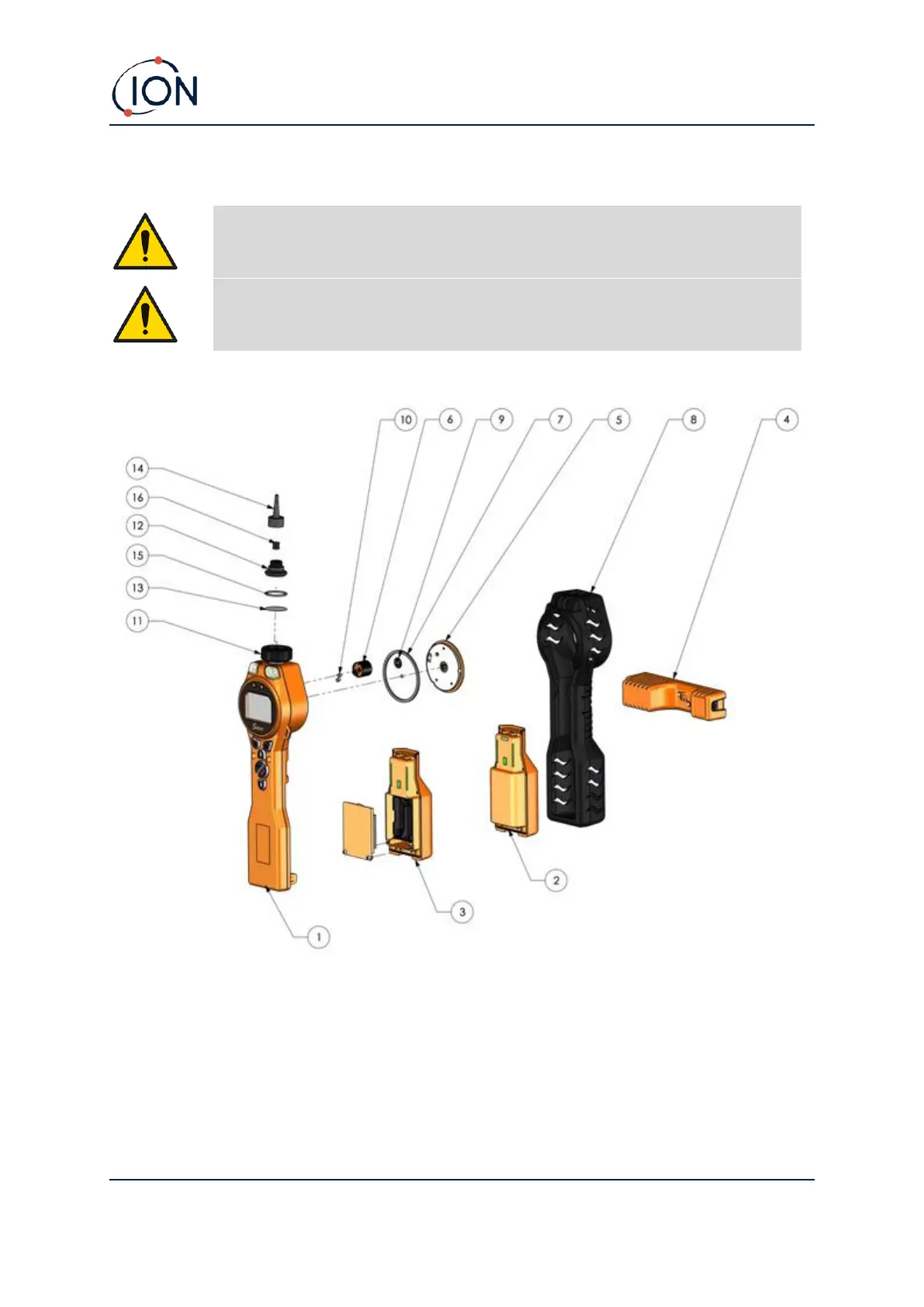

TIGER Parts Diagram
1 Instrument Body
2 Rechargeable Battery
Pack
3 AA Battery Pack
4 Charge Cradle
5 Sensor Cover
6 MiniPID 2 Sensor
7. Sensor Gasket
8. Instrument Boot
9. Sensor Seal
10. Inlet/Outlet Seal
11. Filter Housing Cap
12. Filter Clamp
13. PTFE Filter Disc
14. Probe - Tiger
15. O-ring
16. Probe Seal

ION TIGER Specifications

General

Lamp Energy	10.6 eV
Minimum Resolution	0.001 ppm
Operating Humidity	0 – 99% RH (non-condensing)
Resolution	0.001 ppm
Power Supply	Rechargeable Li-ion battery
Operating Temperature	-20 to 50 °C, -4 to 122 °F (non-hazardous area)
