ION TIGER User Manual

TIGER Instrument User Manual V3.10
Unrivalled Gas Detection. Page 48 of 72 ionscience.com

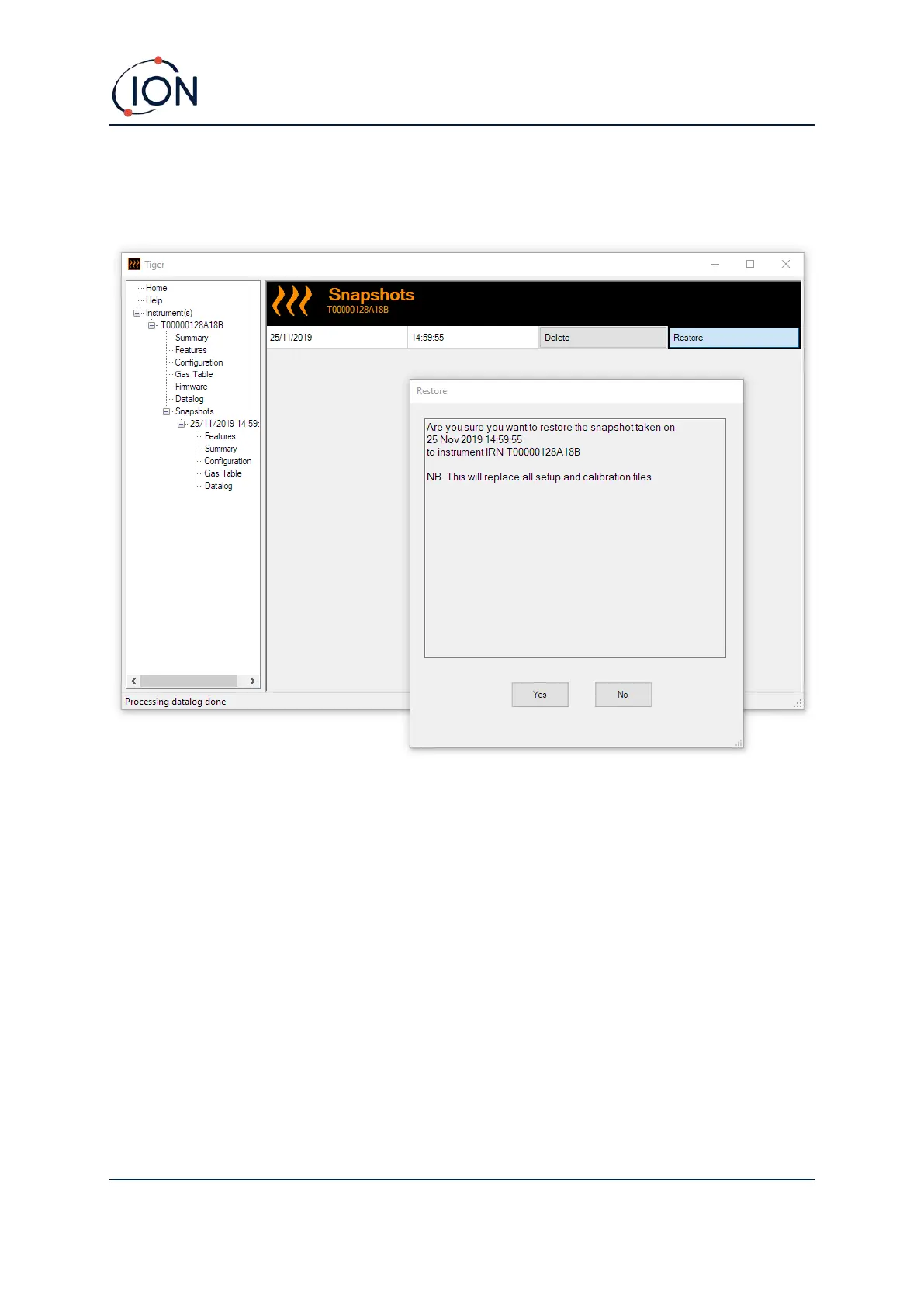

Click Restore against the relevant snapshot.
On the restore pop-up that is then displayed:
Click Yes to load the snapshot. When the loading is complete, click Close and restart your TIGER.
Your TIGER will now be restored to the settings and calibration data stored at the time of that
snapshot.
The snapshot menu also allows stored data to be reviewed when an instrument is not attached.

ION TIGER Specifications

General

Lamp Energy	10.6 eV
Minimum Resolution	0.001 ppm
Operating Humidity	0 – 99% RH (non-condensing)
Resolution	0.001 ppm
Power Supply	Rechargeable Li-ion battery
Operating Temperature	-20 to 50 °C, -4 to 122 °F (non-hazardous area)
