iPECS-MG Quick Start Guide
7
2.5 KSU Mounting
2.5.1 Wall Mounting / Rack Mounting
1. Attach the mounting template included for accurate placement to the wall and drill the hole.
2. Install 12 anchor plugs into the wall using the mounting template (Figure 2.5.1A).
3. Insert 12 included screws into the 12 anchor plugs.
4. Hook Wall Bracket onto installed screws.
5. Attach Wall Shelf to the bottom of KSU and affix two shelves to the KSU using the 8 screws provided.
6. Hook the Wall Shelf onto the Wall Bracket, making sure that the System slides down securely.
7. Affix the Wall Shelf to the Wall Bracket using the 8 screws provided.

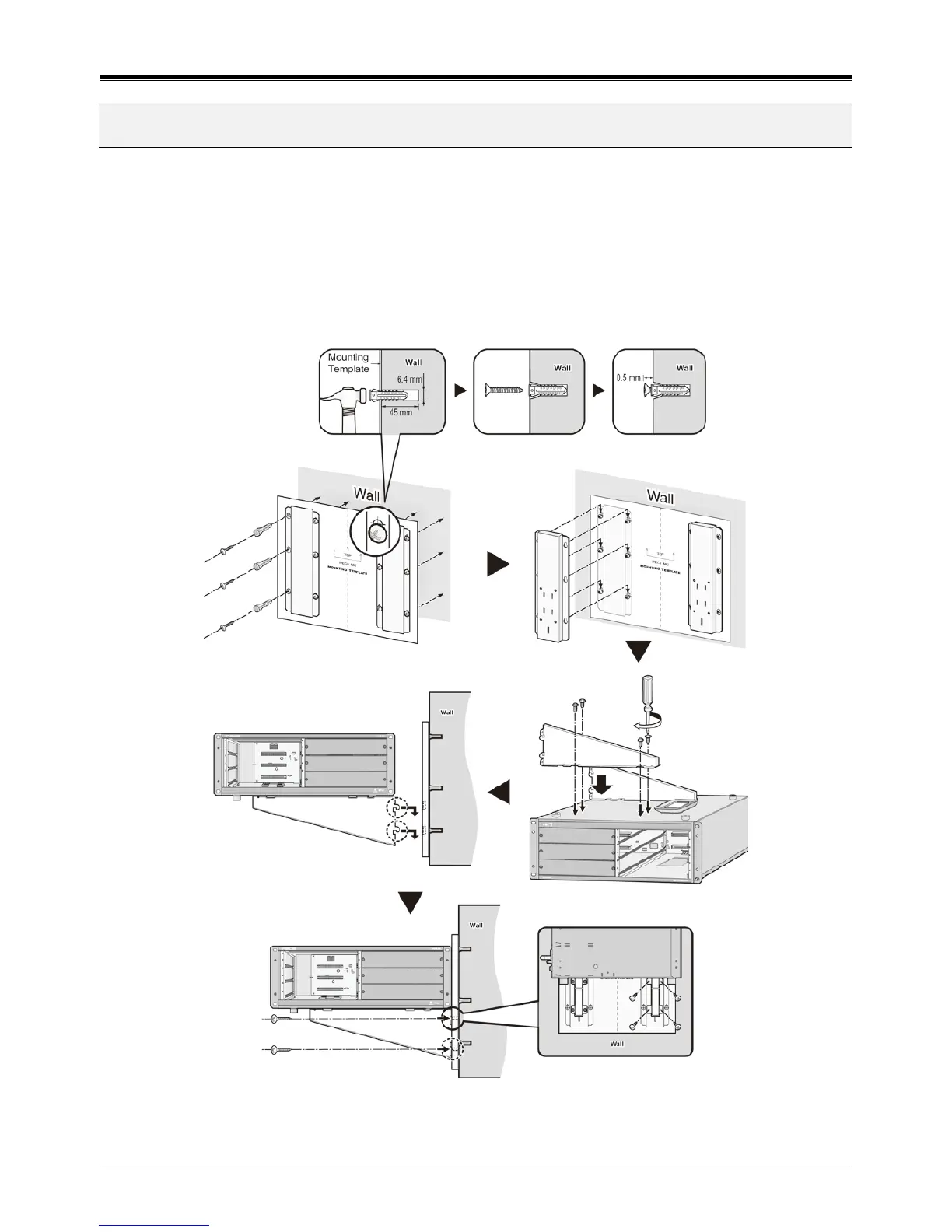

Figure 2.5.1A Wall Mounting
