iPECS-MG Quick Start Guide
18
3.4 Extension Boards
3.4.1 SLIB12/24 (Single Line Interface Board)
There are two kinds of SLIB12/24 according to CPU, but they have the same functions.
The SLIB12/24 provides 12(24) single line analog ports with FSK ( ITU-T V.23 or Bell 202) or DTMF (ITU-T Q.23)
Caller ID function. The connection between the SLIB12/24 and SLT is provided through RJ45 Modular Jacks.
SLIB12/24 can be installed on the universal slot in any KSU except the MPB slot of 1
st
KSU.

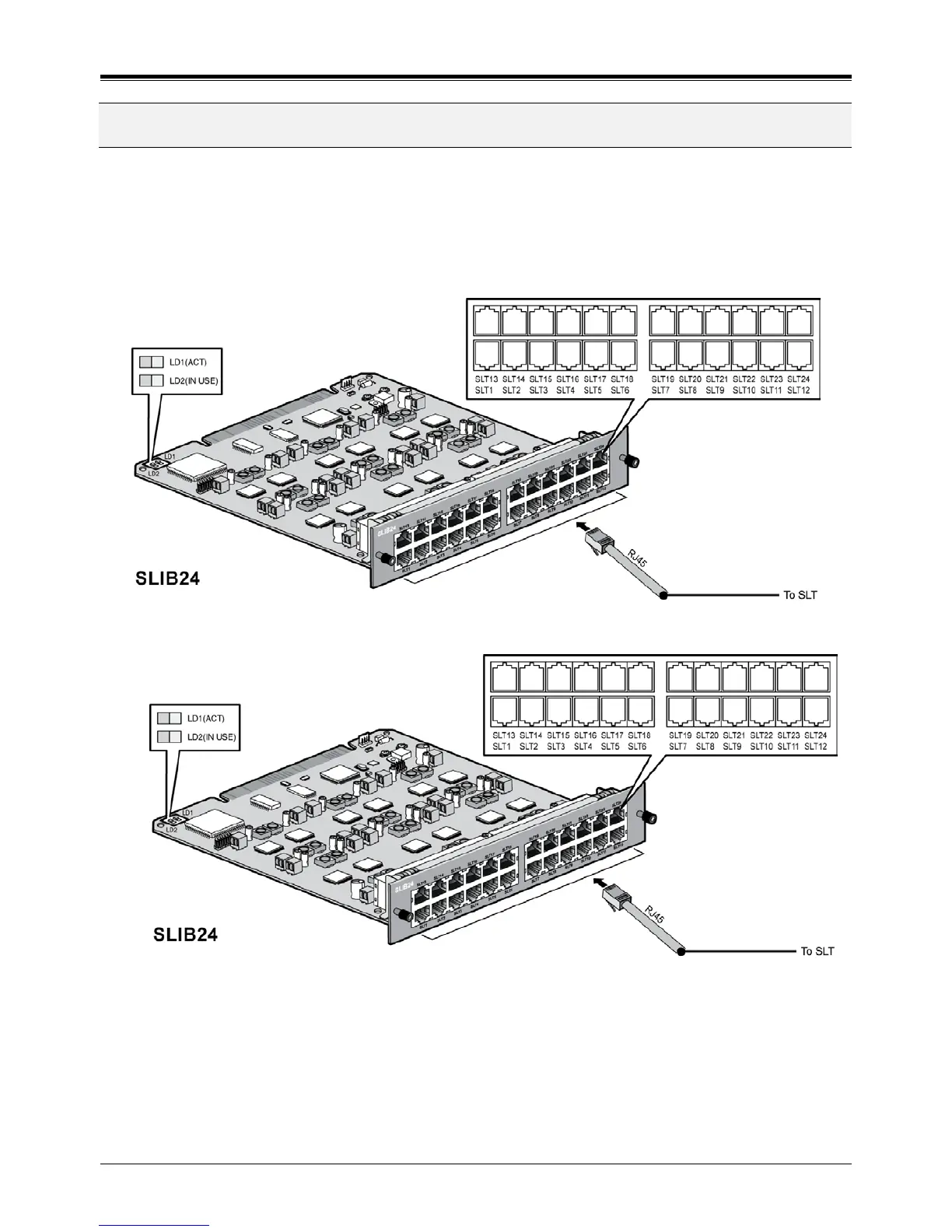

Figure 3.4.1 SLIB24
NOTE
• Caller ID signal can be either DTMF or FSK based on the country code entered in the system
database.
• Dialing Type (DTMF or DP) and MWI function is determined by the selected admin value.
• Max. 4SLIB24s can be installed in each KSU.
