4.1 Introduction
The iPECS-MG provides support for the System DECT solution which is composed WTIB4/8, Base Station (GDC-
400B & GDC-600B & GDC-600BE), and DECT terminals (GDC-33xH, 34xH, 4x0H). For installation instructions, refer
to the iPECS DECT Installation Guide.
4.2 Board Installation
4.2.1 WTIB4/WTIB8
The WTIB4/8 can be installed on the universal slot No. 1-6 of any KSU except the slot No. 1 of 1
st
KSU and
should be installed on the same KSU when installing more than one WTIB4/8.
The layout and dip switch setting of the WTIB4/8 of iPECS-MG is shown:

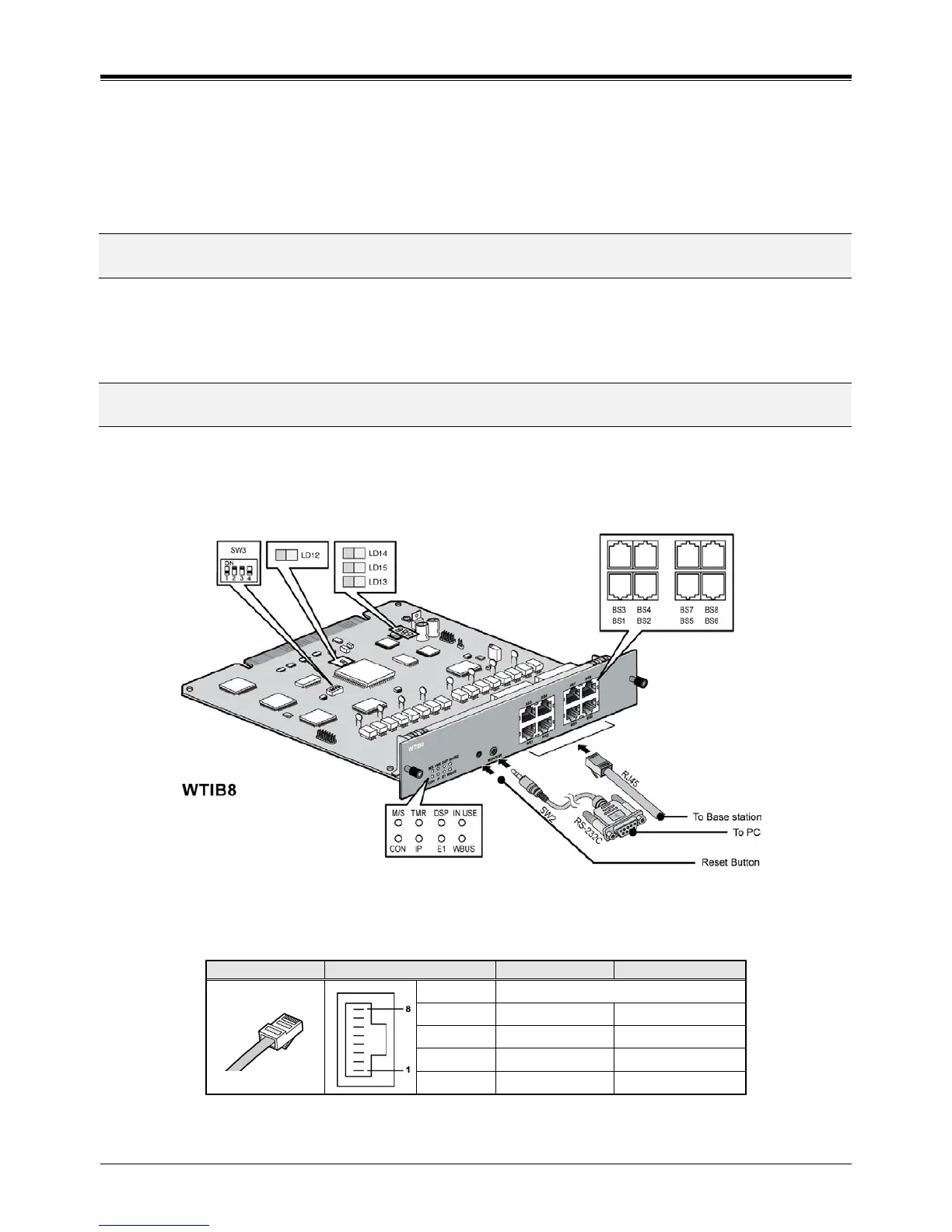

Figure 4.2.1 WTIB8
4.2.1.1 Pin Assignment
WTIB4/8
CONNECTOR
PIN NUMBER
SIGNAL NAME
FUNCTION
RJ45 1, 2, 7, 8 Unused/reserved
3 RX+(GND) Receive Data
4 TX-(+30V) Transmit Data
5 TX+(+30v) Transmit Data
6 RX-(GND) Receive Data
