iPECS-MG Quick Start Guide
20
3.4.3 DTIB12/24 (Digital Terminal Interface Board)
The connection between the DTIB12/24 and DKT is provided through RJ45 Modular Jacks.
• DTIB 12: provide 12 ports
• DTIB 24: provide 24 ports
DTIB12/24 can be installed on the universal slot in any KSU except the MPB slot of 1
st
KSU.

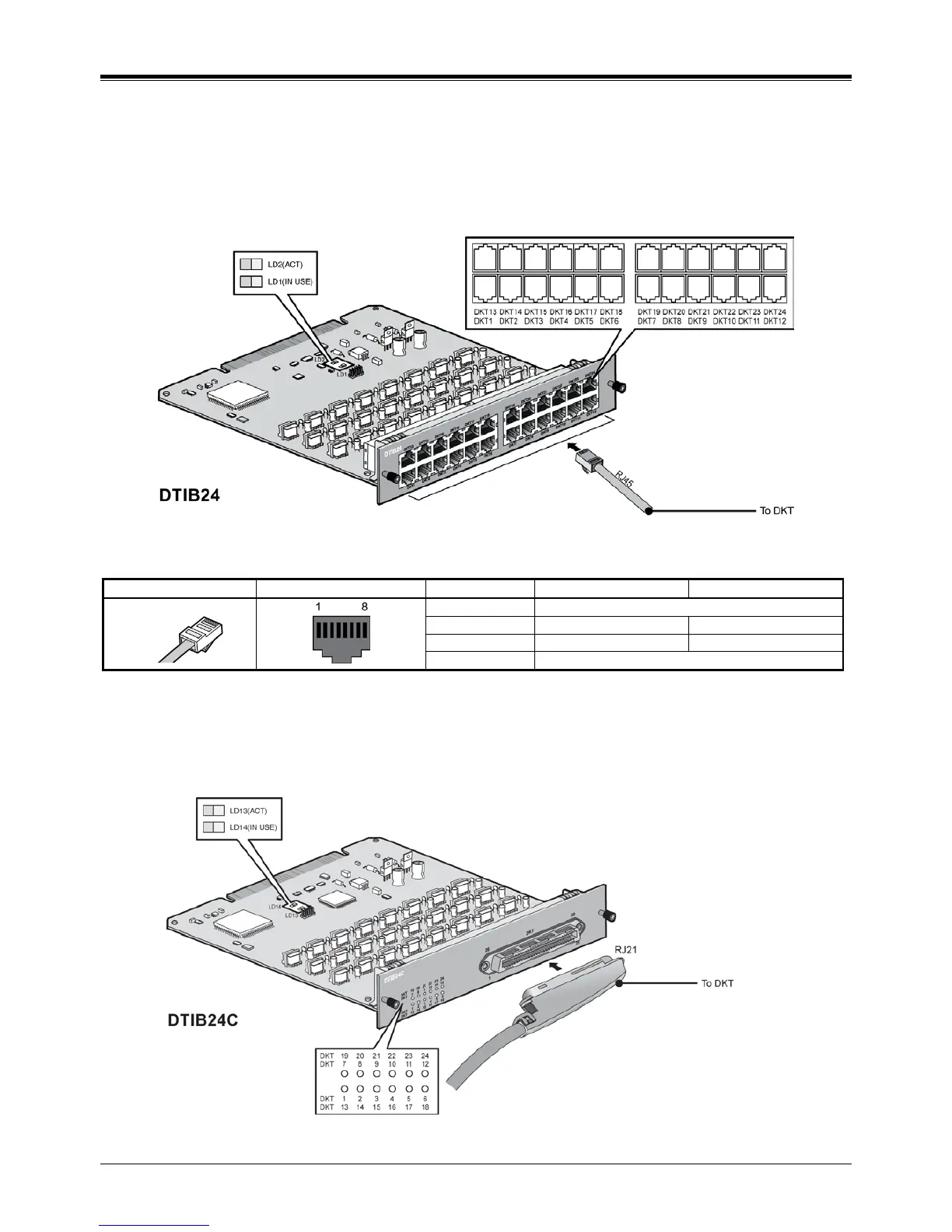

Figure 3.4.3 DTIB24
3.4.3.1 Pin Assignment
DTIB12/24
CONNECTOR
PIN NUMBER
NO.
SIGNAL NAME
FUNCTION
RJ45
1,2,3
Reserved
4
DKT_RX
Receive Data
5
DKT_TX
Transmit Data
6,7,8
Reserved
3.4.4 DTIB12C/24C (with RJ21 connector)
The connection between the DTIB12C/24C’s modular block and DKT is provided using RJ21cable. The DTIB24C is
shown as an example.
DTIB12C/24C can be installed on the universal slot in any KSU except the MPB slot of 1
st
KSU.
Figure 3.4.4 DTIB24C
