iPECS iPECS-MG - Function Boards

iPECS-MG Quick Start Guide
19
3.4.1.1 Pin Assignment
SLIB12/24
CONNECTOR
PIN NUMBER
NO
SIGNAL NAME
FUNCTION
RJ45
1,2,3
Reserved
4
SLT_RX
Receive Data
5
SLT_TX
Transmit Data
6,7,8
Reserved
3.4.2 SLIB12C/24C (with RJ21 connector)
There are two kinds of SLIB12C/24C according to CPU, but they have the same functions.
The SLIB12C/24C is the same SLIB12/24 except the connection between the board and Single Line Telephone. The
connection between the SLIB12C/24C and Single Line Telephone is connected through the Champ/Amphenol cable.
SLIB12C/24C can be installed on the universal slot in any KSU except the MPB slot of 1
st
KSU.

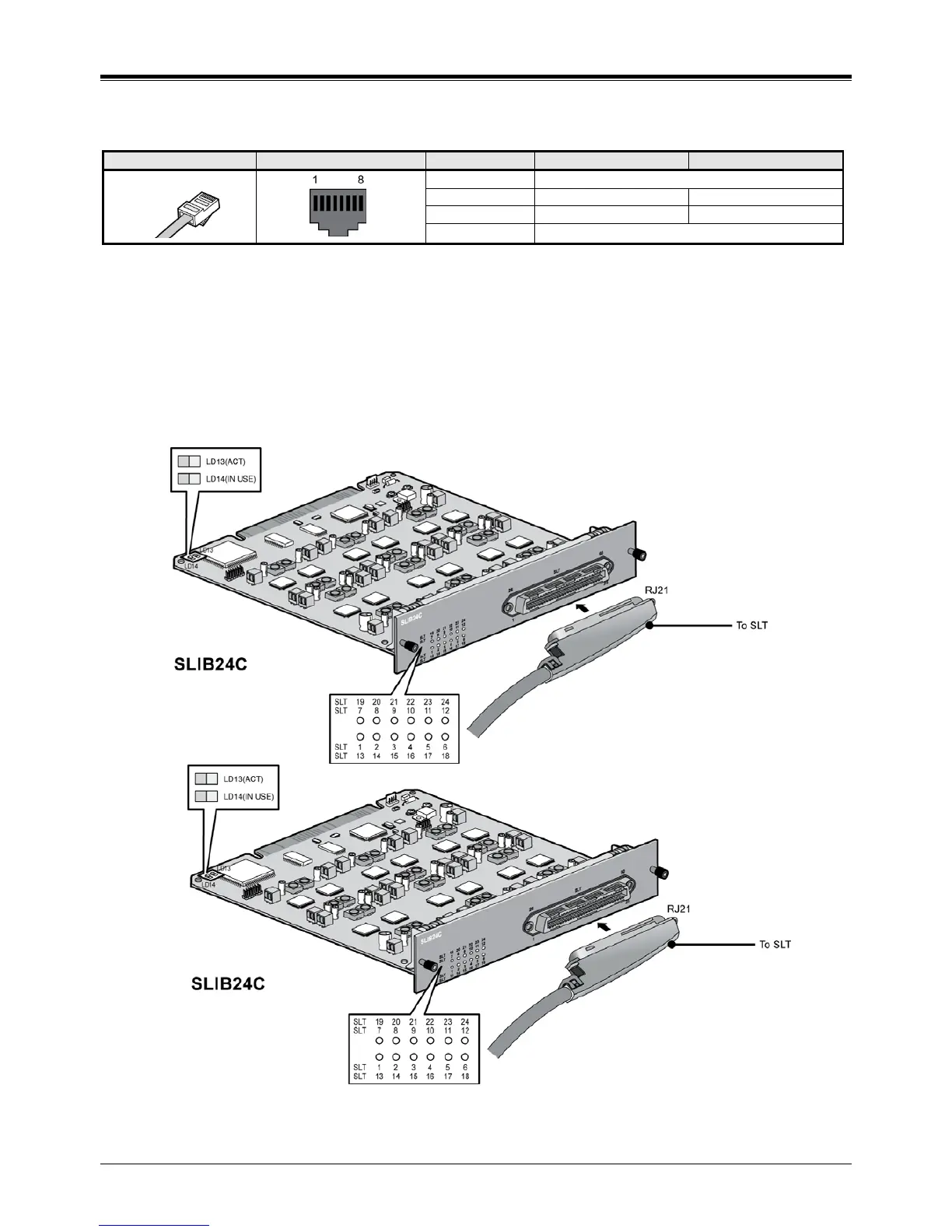

Figure 3.4.2 SLIB24C
NOTE : For Pin Assignment of SLIB12C/24C, refer to the 3.4.4.1 Section ‘Pin Assignment’.
