iPECS-MG Quick Start Guide
25

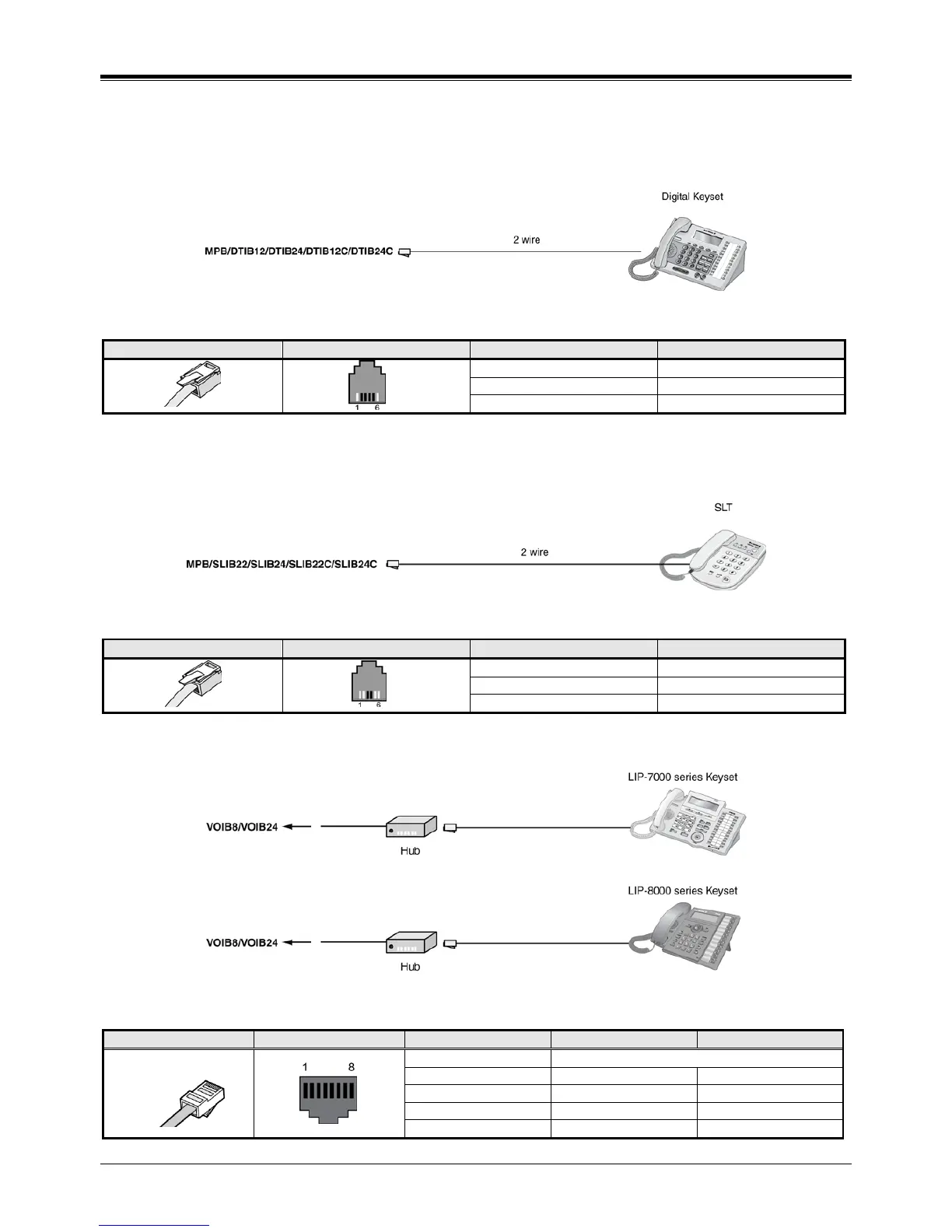

3.6.2 Basic Terminal Connection
3.6.2.1 DKT
The following illustrates how to connect the DKT to your System:
Figure 3.6.2 DKT Connection
DKT Pin Assignment
Connector
PIN Number
NO
Signal Name
RJ11
1,6
N/A
2,5
Reserved
3,4
TIP, RING
3.6.2.2 SLT
The following illustrates how to connect the SLT to your System:
Figure 3.6.3 SLT Connection
SLT Pin Assignment
CONNECTOR
PIN NUMBER
NO.
SIGNAL NAME
RJ11
1,2,5,6
N/A
3
RING
4
TIP
3.6.2.3 LIP-7000& LIP-8000 Series Keyset
Figure 3.6.4 LIP Phone connection
IP Phone Pin Assignment
CONNECTOR
PIN NUMBER
NO.
SIGNAL NAME
FUNCTION
RJ45
4,5,7,8
RESERVED
1
TX+
Transmit Data
2
TX-
Transmit Data
3
RX-
Receive Data
6
RX+
Receive Data
