Base Station
CONNECTOR PIN NUMBER SIGNAL NUMBER FUNCTION
RJ11
1 & 4 TX (GND) Transmit Data
2 & 3 RX (+30V) Receive Data
NOTE
• Using unshielded twisted-pair cable (more than CAT3), wire the Base Station RJ-11 to the
termination point/MDF for connection to a WTIB4/8.
• Tag or number wiring for maintenance.
4.2.2 Ferrite Core Installation and Wiring
Ferrite core is provided in the packaging of the Base Station for EMI. The Ferrite core should be installed when the
WTIB4/8 is installed in the iPECS-MG system. One Ferrite core is to be used with the line cord between the Base
Station and each port of WTIB4/8 (as shown, refer to iPECS-MG Hardware Description and Installation Manual for
more detail).

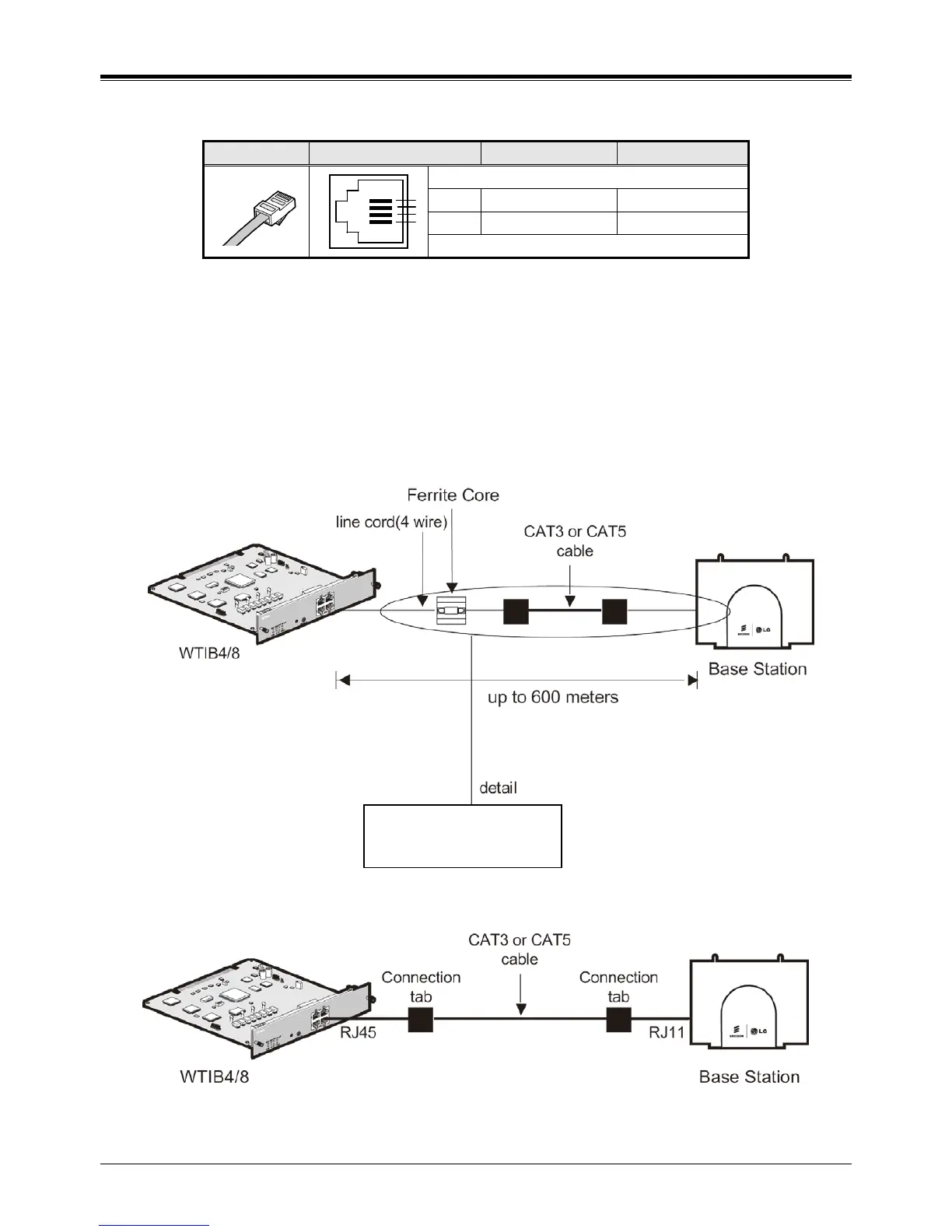

Figure 4.2.2 Cable Connection with Ferrite Core between WTIB4/8 and Base Station
Figure 4.2.3 Wiring with Connection Tab between WTIB4/8 and Base Station
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
Refer to iPECS-MG Hardware
Description and Installation
Manual
