3.1 Installation of the Boards
Prior to installing the Boards, the following should be considered:
CAUTION
• Verify that electrical Power is turned OFF.
• To protect the System from static electricity, do not directly touch the boards; to discharge static, touch a
grounded object, or wear a grounding strap.
To install the Board, perform following Steps:
1. Slide the board along the guide rails and hold the board as shown in second figure, carefully insert
the Board in the direction of the arrow so that the Board securely insert with the connector on the
Mother Board.
2. Press the screw to turn it clockwise and affix it securely.

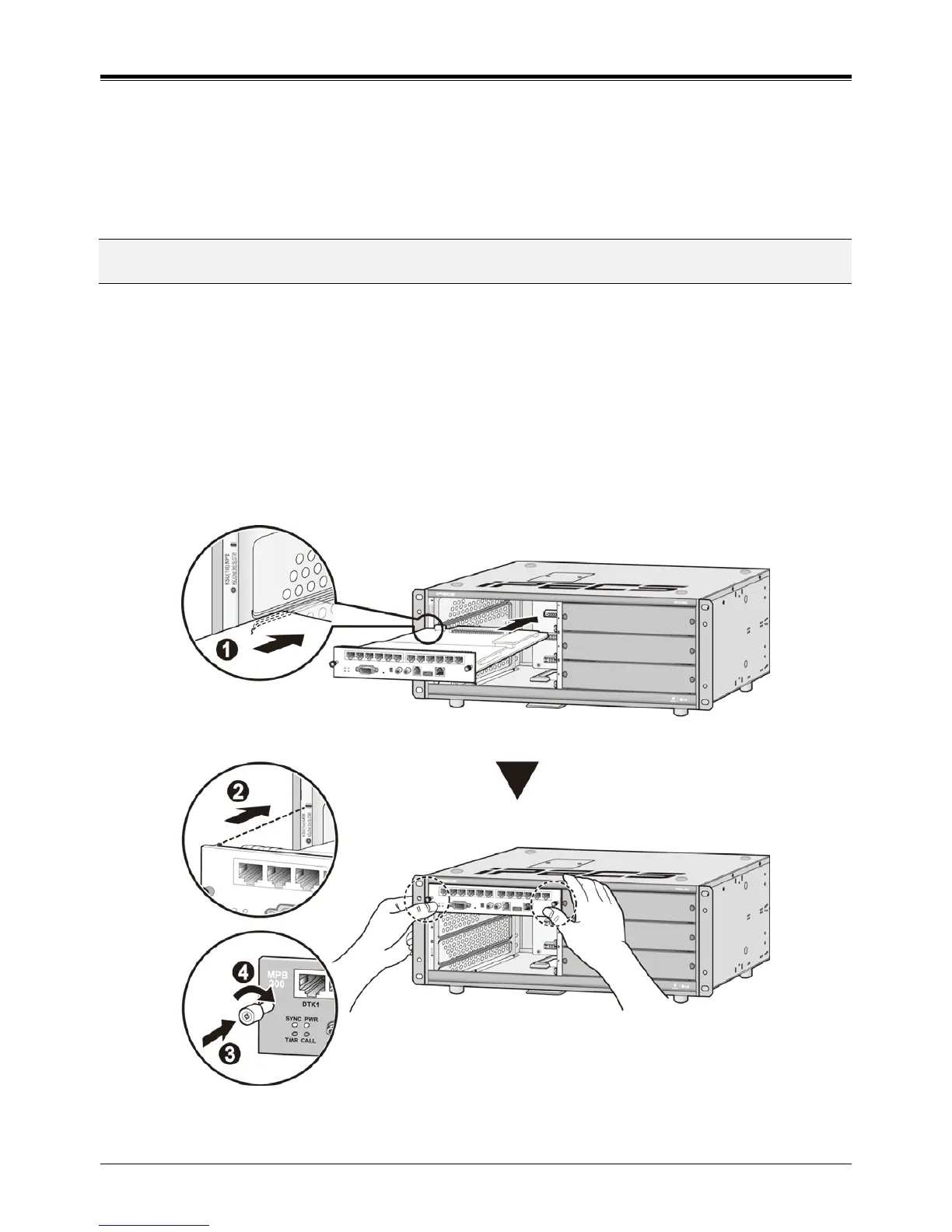

Figure 3.1 Board Installation
