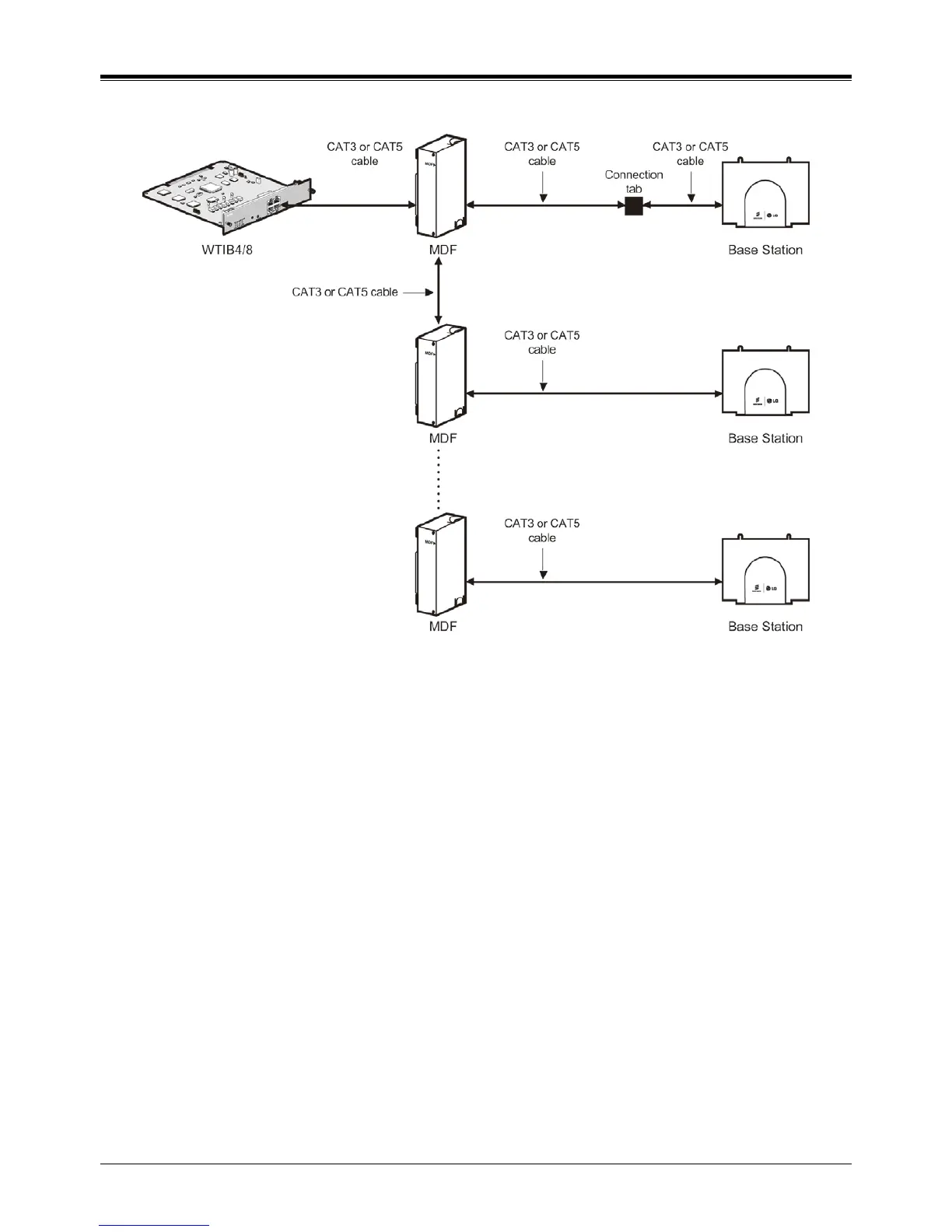

Figure 4.2.4 Wiring with MDF and connection tab between WTIB4/8 and Base Station
NOTE
• Even though there are connection points such as MDF or connection tab between WTIB4/8 and
Base Station, the connection points should be connected with twisted-pair cable (at least CAT3
class). For example, WTIB4/8 to MDF, MDF to MDF, MDF to connection tab, and connection tab to
Base Station should be connected with twisted-pair cable.
