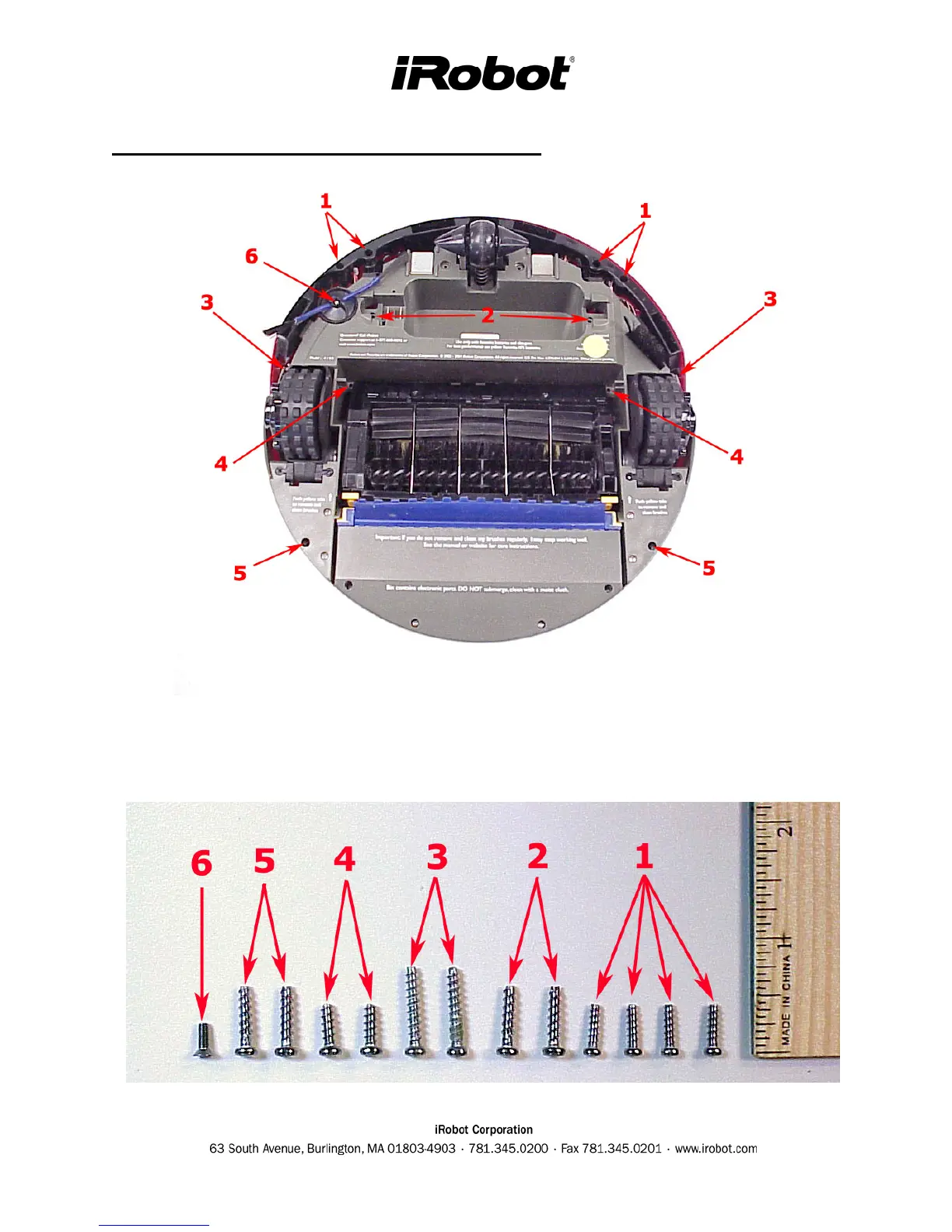

Roomba Chassis Disassembly Procedure

o Remove Vacuum Bin

o Unscrew bumper screws (1)

o Unscrew chassis screws (2,3,4,5)

o Unscrew side brush if necessary (6)
