iRobot Roomba Red - Failed BiT 5 - RCON; IR Receiver; Failed BiT 6 - Battery Sensor

22

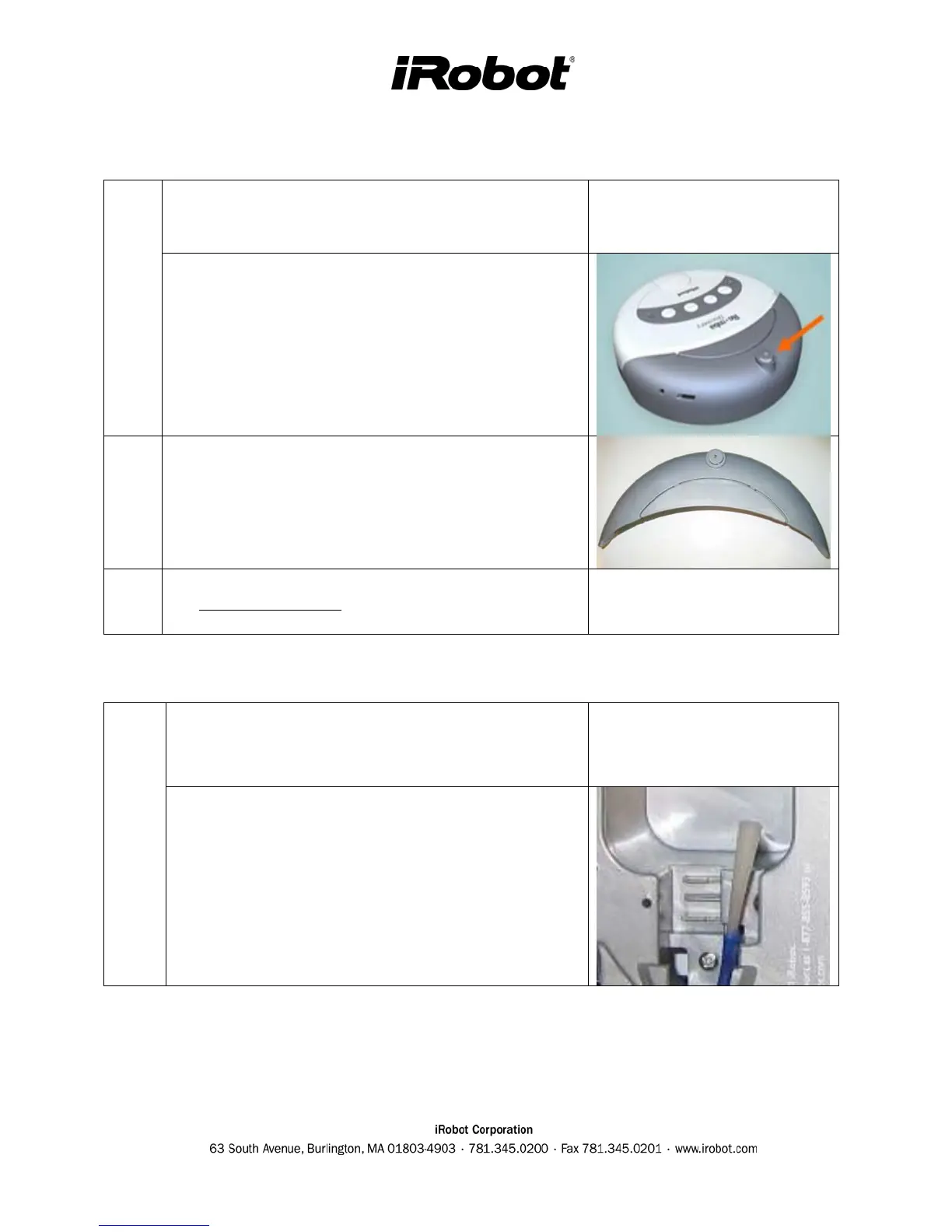

Failed BiT 5 – RCON / IR Receiver
Roomba Symptom: Crosses Virtual Wall beams, hits
accessories, and does not respond to the Remote.
BiT REPAIR STEPS
Æ Wipe the RCON on top of bumper. Retest.
Æ Detach outer bumper and inspect wiring under the
bumper.
Æ Plug in an *approved* outer bumper and retest
with accessories to rule out pcb failures.
REPLACEME
NT PART
Outer Bumper Assembly
QC
o Ensure BiT passes.
Failed BiT 6 – Battery Sensor
Roomba Symptom: Roomba does not charge
BiT REPAIR STEPS
Æ Clean the electrical contacts on the Roomba (in the
battery well) with an alcohol pad.
Æ Remove the outer bumper and inspect for any
broken wires leading from the electrical contacts to
the pcb.
