3
Lift top shell slowly as it is attached by a connector.
Carefully disconnect the connector from Roomba.
4
Clean off the internal dirt with compressed air.

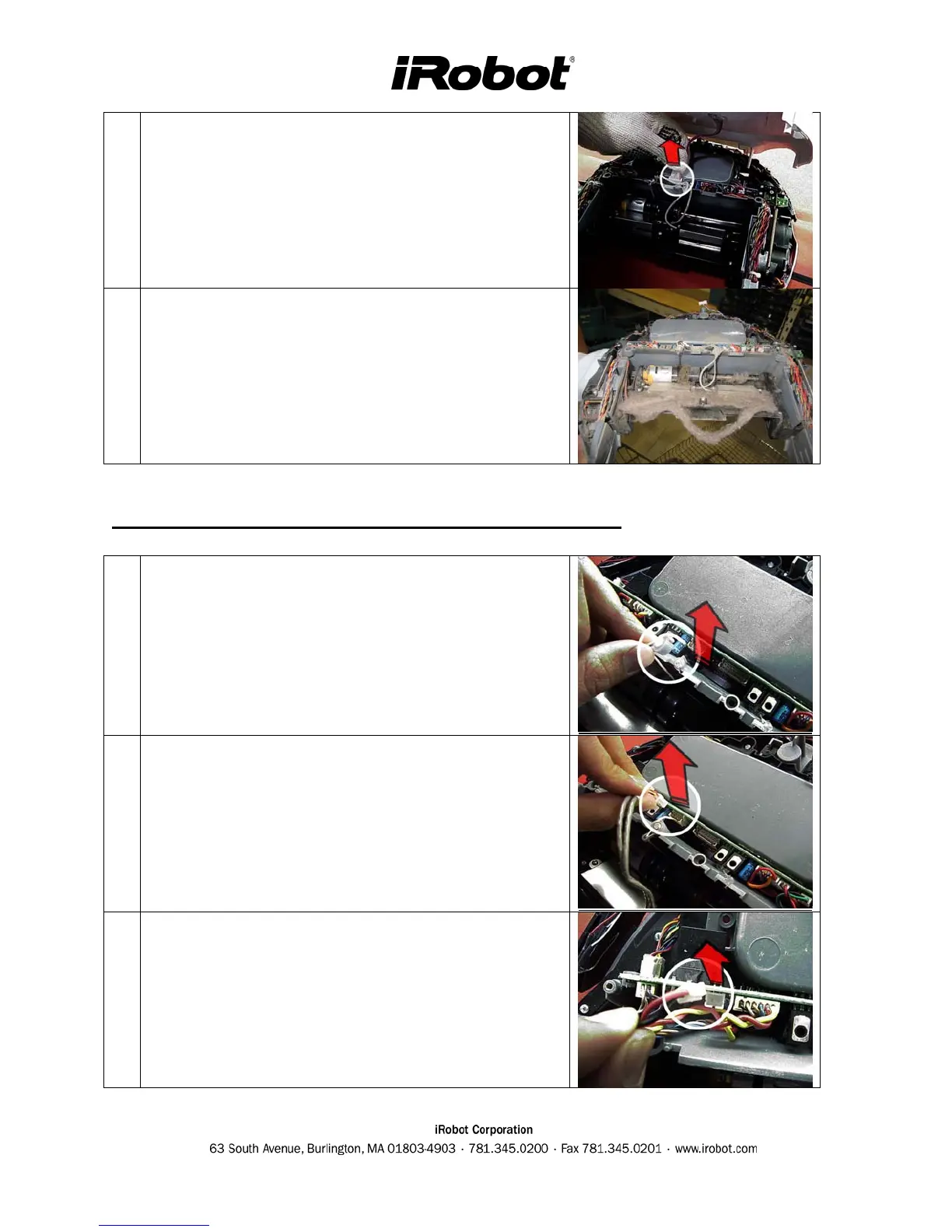

Roomba Cleaning Frame Disassembly Procedure
1
Unscrew string mount and keep the string attached to
the holder. Disconnect the string mount from the
chassis.
2
Disconnect debris sensor connector (gray wires)
3
Disconnect brush motor connector (red/black wires)
