Irritrol KD2 User Manual

3

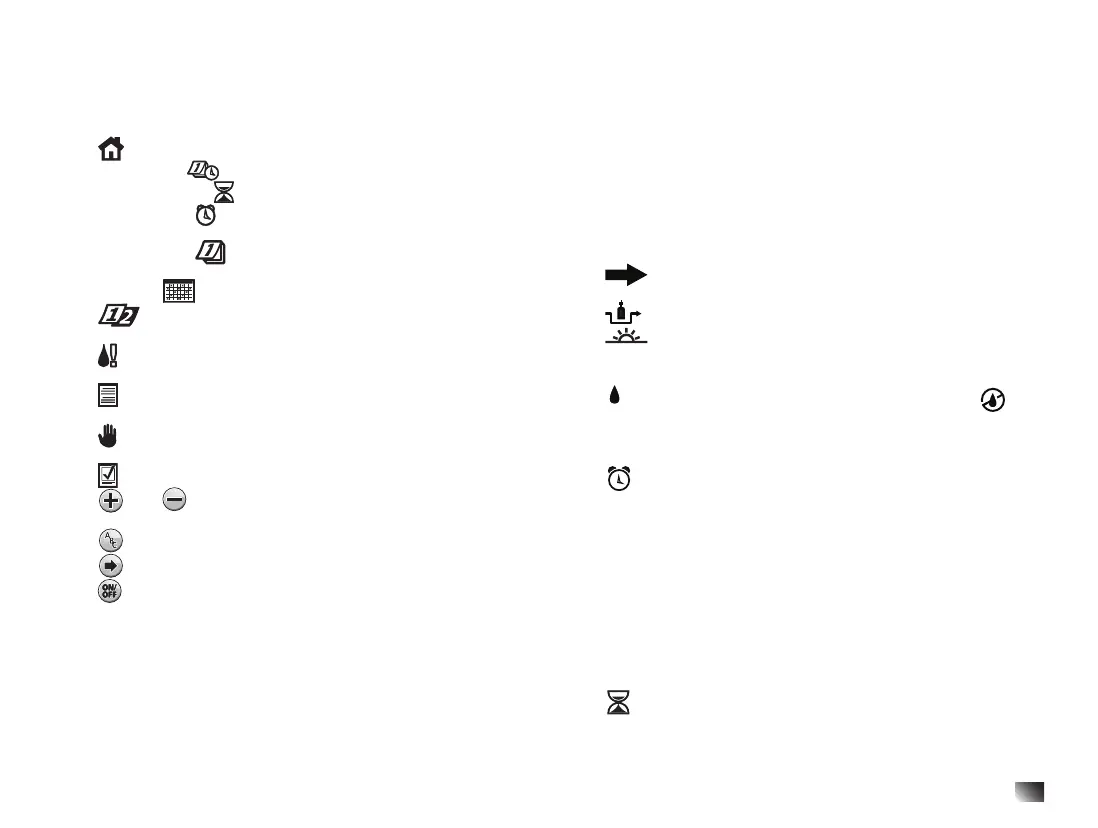

1 - LCD Display
2 - Control Dial
 Select controller programming and
operating functions.
Control Dial Positions:
HOME  Automatic operation position.
Date/Time  Set the current date and time.
Station Times  Set station run time duration.
Start Times  Set start times(s) for automatic watering
program.
Water Days
 Select individual days of the week for
automatic watering.
Interval
 Set a Day Interval watering schedule.
Odd/Even  Set an Odd or Even watering day (date)
schedule.
Special Functions  Select optional controller
functions.
Manual Programs  Select watering programs for
manual operation.
Manual Station(s)  Select station(s) for manual
operation.
Test  Run a test program to check station operation.
3 - and Buttons  Increase or decrease parameter
values and various manual functions.
4 - Button  Select program A, B or C.
5 - Button  Advance to next item or activate function.
6 - Button  Press to turn o / delay operation. Press
again to resume operation.
7 - RJ 45 Connector
 Connect applicable Irritrol controller
accessories such as Climate Logic
TM
.
8 - Station Terminals
 Connection terminals for valve control
wires, master valve or pump start relay wires.
9 - Sensor Connection Terminals
 Connect applicable
Irritrol controller accessories such as Rain Sensor.
10 - 9-Volt Battery Connector
 Connect a 9Volt battery
to display the time and date during power outage.
Programs can also be edited while on battery power but
valves will not be activated .
11 - Internally Mounted Transformer  Supplies 24VAC
power to the controller from a grounded wall plug outlet.
12 - Power Supply Cover
13 - Internal Components Cover
14 - Station Numbers  Displayed when setting program start
time(s) and while a station is running.
15 -
Symbol  Indicates that the selected menu has
additional available options.
16 -
Symbol  Indicates that the rain sensor is bypassed.
17 - Symbol  Displayed when program is set to Day
Interval schedule. The symbol is shown when a language
other than English is selected.
18 - Symbol  Displayed when watering is set. The
symbol indicates that scheduled watering is not set.
Flashing watering symbol indicates that the controller is
actively watering.
19 - Symbol  Displayed when setting an automatic
watering program start time.
20 - Main Display  Shows various time values and controller
information.
21 - A B C  Program letter identiers. Displayed during
programming and operation.
Note: Actively watering program will be ashing and
programs that will water at a later time are shown as
solid.
22 - % Symbol  Displayed when a Watering Budget
adjustment is in use.
23 - Symbol  Displayed when setting the station run time
duration.

Irritrol KD2 Specifications

General

Brand	Irritrol
Model	KD2
Category	Controller
Language	English
